Description

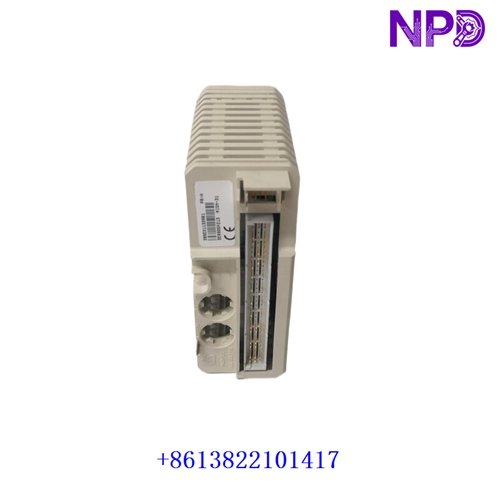

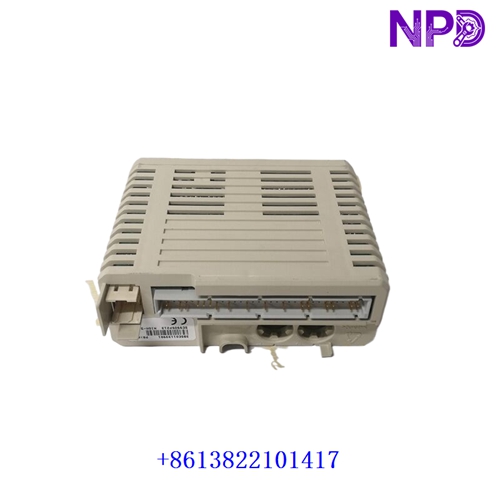

The ABB NBIO-31 (Catalog / Ordering Part Number: 3BSE011337R1) is a non-isolated binary input/output (I/O) expansion module engineered for ABB Advant Controller 110 (AC 110) and Advant Controller 70 (AC 70) automation architectures. Installed within the controller subrack, the NBIO-31 provides compact, high-density digital signal processing for local contact inputs and control outputs used in machine sequencing, process interlocking, and auxiliary plant control loops.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | ABB |
| Module Code | NBIO-31 / NBIO 31 |
| Catalog / Part Number | 3BSE011337R1 |
| System Compatibility | ABB Advant Controller 110 (AC 110), Advant Controller 70 (AC 70) |
| Module Type | Non-Isolated Binary (Digital) Input / Output Board |
| Signal Level | Nominal 24 V DC digital logic levels |
| Form Factor | Subrack / rack-mounted printed circuit board |
| Status Indicators | Onboard LED indicators for channel state visualization and board fault diagnostic |
Primary System Functions
- Binary State Acquisition & Control: Reads field digital contact signals (e.g., limit switches, pushbuttons, interlocks) and drives digital output devices (solenoid valves, pilot lights, interlock relays).
- High-Density Channel Layout: Combines both binary input and output circuitry onto a single card assembly, optimizing slot space inside AC 110 / AC 70 subracks.
- Direct Backplane Communication: Passes digital process states directly across the internal controller bus to the main processor for real-time execution of AMPL (ABB Master Programming Language) control programs.
- Hardware Fault Diagnostics: Conducts background power rail validation and logic checks, reporting card status directly to the central controller CPU.
Servicing & Replacement Guidelines
- Electrostatic Discharge (ESD) Controls: Sensitive CMOS digital components require static precautions. Always wear a grounded anti-static wrist strap when handling, inserting, or removing the board.
- Subrack Power Isolation: Completely de-energize the controller subrack power supply before extracting or inserting the NBIO-31 module to prevent edge-connector pin arcing or bus logic faults.
- Field Wiring & Voltage Verification: Because channels are non-isolated, verify that external 24 V DC power supplies and common ground references meet ABB installation guidelines before landing signal wires.
- Addressing & Jumpers: Prior to placing a replacement NBIO-31 unit into service, verify that all hardware jumpers and DIP switch address selections strictly match the original board configuration in the project database.
