Description
- Model/Type Designation: ABB NMTU-21 (Often referenced in latest manufacturing runs as NMTU-21C)
- Product ID/Part Number: 3BSE017429R1 (Cross-referenced with internal trace schematic configuration HESG112835/A)
- Brand: ABB (Asea Brown Boveri)
- System Control Architecture: S800 I/O Platform / Advant OCS / 800xA Process Automation Frameworks
- Core Function: High-performance S800 subrack fieldbus network terminal/communication interface board. It provides real-time data processing, signal line monitoring, and transient suppression for digital/analog cluster extensions running on the S800 station backplane.
- Nominal Operating Input Voltage: 24 V DC internal station bus feed
- Input Voltage Tolerance Range: 19.2 V DC to 30 V DC operational envelope
- Power Consumption Limits: 3.2 W nominal processing load configuration
- Chassis Capacity Link: Connects directly with up to 12 individual S800 extension I/O modules per station node
- Communication Protocols: Supports full-duplex proprietary cluster bus and standard high-speed industrial station fieldbus lines
- Data Transmission Speed: High-speed real-time cyclic synchronization across the station bus frame
- Isolation Barrier Protection: 500 V AC galvanic isolation between station logic lines and field network paths
- Mounting Configuration: Vertical module placement optimized for standard 35mm DIN rail tray assemblies
- Operating Temperature Limits: -20°C to +60°C continuous ambient air enclosure limits
- Storage Temperature Envelope: -40°C to +85°C maximum structural limits
- Relative Humidity Tolerance: 5% to 95% relative humidity (RH, non-condensing tracking)
- Physical Footprint Dimensions: Height 254 mm \times Width 25.4 mm \times Depth 178 mm
- Net Unit Weight: 0.40 kg

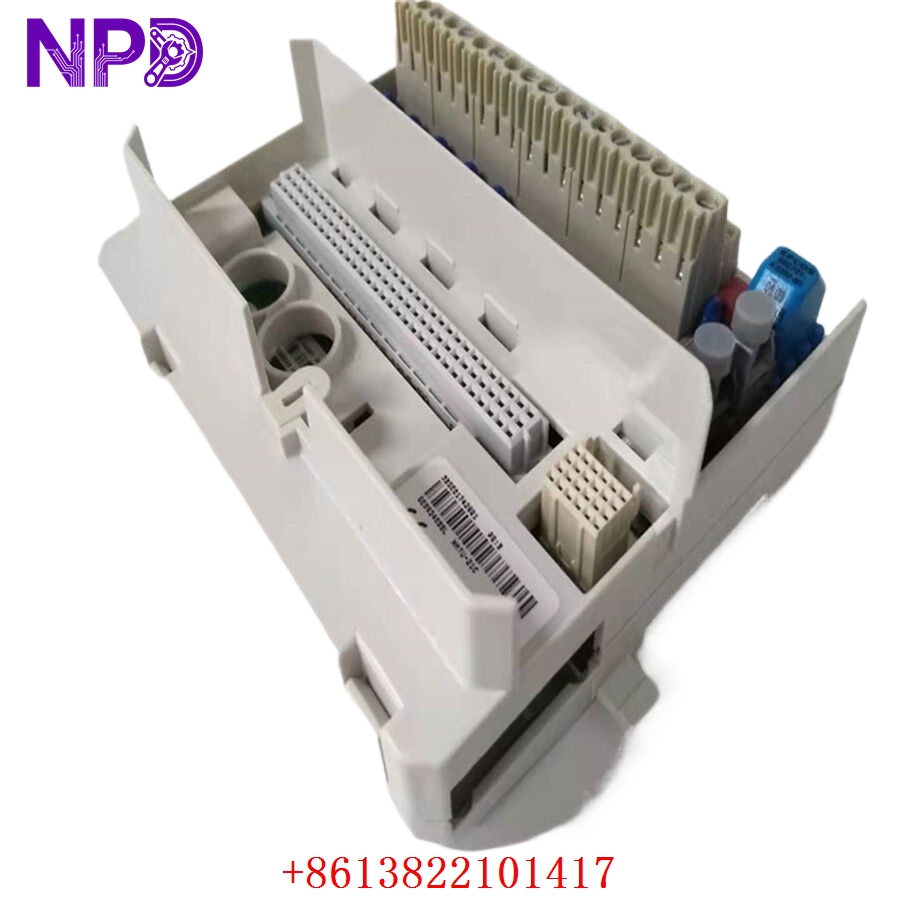

ABB 3BSE017429R1 NMTU-21C

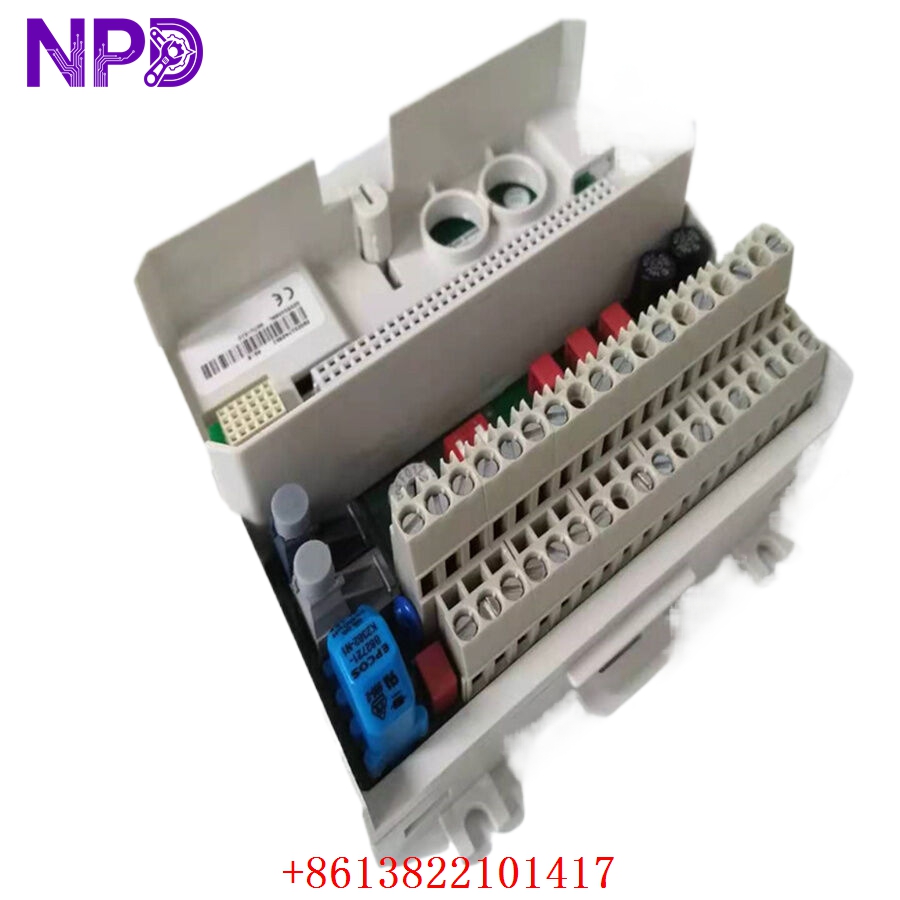

ABB 3BSE017429R1 NMTU-21C

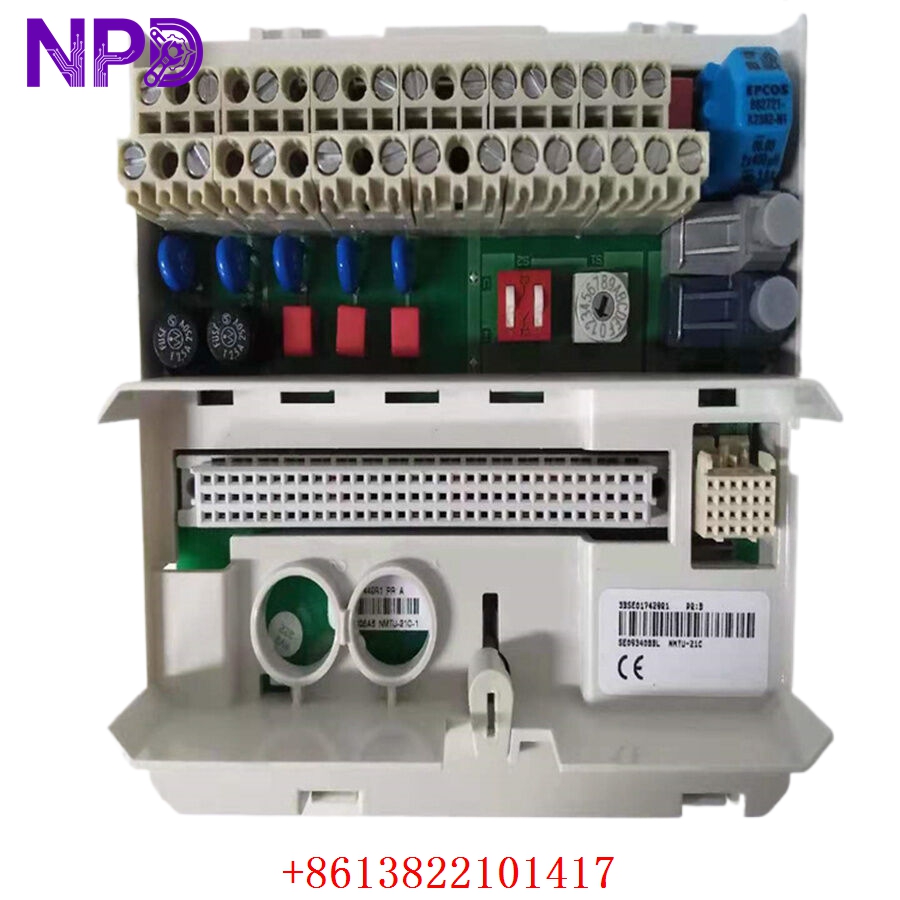

ABB 3BSE017429R1 NMTU-21C
ABB 3BSE017429R1 NMTU-21C
Installation & Configuration Guide
Pre-Installation Setup
⚠️ CRITICAL SAFETY WARNING:
- Coordinate a comprehensive data mapping bypass window with the operations safety team before replacing an NMTU-21 module. Removing this interface card disrupts station communication for up to 12 downstream S800 I/O modules, causing all associated field variables to fall back to their default error states.
- Ensure that the 24 V DC main isolation breaker feeding the local S800 rack cluster is open and locked out (LOTO) before removing the hardware.
- Verify that the DIN rail framework ground lug is securely connected to the plant earth network.
- Required Tools & Gear:
- Grounded anti-static wrist strap connected directly to the bare metal cabinet framework.
- Standard 4.0 mm flathead precision insulated screwdriver for terminal blocks and DIN rail clips.
- Windows engineering laptop running ABB Control Builder M / Industrial IT 800xA engineering software environment.
- Valid system node configuration map (.xml architecture file) for the target S800 cluster station.
- Backup Procedures:
- Log into the central controller node via your engineering terminal and upload a complete image backup of the current S800 subrack station interface mapping. Save this profile safely offline.
- Label all incoming network lines and power feeds connected to the termination housing to ensure correct port alignment during re-assembly.
Old Module Removal
- Isolate Local Subrack Power: Trip the upstream 24 V DC circuit breaker that provides power to the target S800 station cluster slot. Use a digital multimeter to confirm that voltage across the power terminals reads 0.0 V DC.
- Disconnect Station Communication Lines: Gently unplug the fiber-optic cables or copper fieldbus communication cables connected to the NMTU-21 interface module. Protect any exposed fiber optic tips from dust or contamination using clean protective caps.
- Release Module Retaining Mechanisms: Use your flathead screwdriver to unlock the top and bottom plastic locking tabs that secure the module housing inside the termination frame track.
- Withdraw from the Frame: Pull the card smoothly out of the chassis track guides. Place it immediately onto an ESD-protected workbench mat.
New Module Mounting and Configuration
- ESD Mitigation Check: Ensure your grounded static wrist strap is securely connected before removing the new NMTU-21 / 3BSE017429R1 card from its anti-static shielding bag. Avoid touching any open PCB components or edge connector tracking fingers.
- Verify Address Settings: Check the rotary address switches or hardware jumpers on the new module. Set them to match the exact address assignment of the old board to ensure the master controller recognizes it on the station loop.
- Mount on Terminal Frame Rail: Align the card housing with the guide rails of the empty S800 cluster station slot. Slide the unit backward until it sits flush against the rear interface backplane.
- Lock Retention Pins: Press the top and bottom plastic locking tabs inward until they click securely into position, ensuring the board is locked in place and fully engaged with the backplane connectors.
- Reconnect Network Lines: Reattach all fieldbus lines, copper communication cables, or fiber optic paths back into their matching faceplate ports, ensuring all latch clips click into place.
Post-Installation Verification Checklist
- [ ] Verify that the rotary station address switches match the original hardware node settings exactly.
- [ ] Confirm that both top and bottom plastic locking tabs are fully engaged and clicked into place.
- [ ] Ensure all communication cables and fiber optic lines are securely plugged in and free of sharp bends.
- [ ] Check that adjacent S800 I/O cards have not been disturbed or unseated during the swap.
Cluster Power-Up & Node Commissioning
- Re-engage the upstream 24 V DC primary input isolation circuit breaker.
- Monitor the diagnostic status indicators on the NMTU-21 front plate immediately:
- Run (Green): Steady illumination indicates that the internal core processors passed self-test diagnostics and the board is operating normally.
- Traffic (Flashing Green): Rapid flashing tracks live data packet transmission across the S800 station backplane.
- Fault (Red): Illuminates if the card detects a hardware failure, an address conflict, or an uninitialized station parameter block.
- Open your engineering workstation and launch your ABB Control Builder platform. Check the hardware status tree to verify that the station node status updates to a healthy online state.
- If a red Fault light is active due to an uninitialized memory block, perform a hardware download sequence from the engineering workspace to transfer the saved station topology configurations into the card’s non-volatile memory.
- Perform a functional verification loop test: verify that changing a field variable registers accurately on the HMI operator terminal without data delay or packet dropping.
- Once all downstream S800 I/O channels are confirmed healthy, clear the historical system event logs to finalize the commissioning process.
Customer Cases & Industry Applications
Case 1: Petrochemical Plant Subrack Communication Recovery
A major petrochemical plant along the South China Coast experienced an immediate loss of communication to a remote S800 I/O subrack that managed data telemetry for a product loading dock. The central 800xA control station flagged a “Station Node Offline” alarm code, which instantly dropped visibility for 48 digital and analog measurement loops. This failure triggered an automatic safety shutdown of the loading pumps. Diagnostic troubleshooting traced the issue to a failed NMTU-21 3BSE017429R1 communication card that had suffered internal component failure due to an electrical surge on the 24V supply line.
Because the loading platform was at a standstill, the plant needed an immediate replacement card to avoid costly delays for waiting transport vessels. The team contacted us to verify our ready surplus stock. We pulled a brand-new surplus NMTU-21 module from our shelves, verified its data mapping circuits on our S800 station simulator frame, and shipped it via priority express air courier that afternoon. The card arrived at the plant early the next morning. Technicians set the rotary address switches, swapped the hardware, and restored full data communication to the remote subrack within 18 hours of the initial failure.
Case 2: Water Treatment Plant Remote I/O Lifecycle Upgrade
During an automation maintenance turnaround at a water purification facility, engineers identified intermittent data timeouts on an S800 remote station cluster that managed filtration valve sequencing. The legacy fieldbus interface card had been operating continuously in a humid electrical room for over a decade and was showing signs of component aging and erratic bus performance.
[Legacy Fieldbus Interface Degradation] ──> [Intermittent Valve Timeouts & Process Halts]
│
┌───────────────────────────────────┴───────────────────────────────────┐
▼ ▼
[Option A: Complete System Migration] [Option B: Targeted Interface Card Renewal]
• Cost: High capital expenditure (~$110,000) • Cost: ~80% savings compared to full migration path
• Downtime: 4 days of rewiring and logic recoding • Downtime: Completed in under 20 minutes per subrack
• Execution Risk: High; requires rewriting control logic mappings • Execution Risk: Direct drop-in match; zero logic changes The engineering group wanted a reliable solution that would not require replacing their existing, fully functional S800 digital and analog I/O cards. They chose to source two brand-new surplus NMTU-21 / 3BSE017429R1 communication modules from our inventory. The maintenance crew completed the quick drop-in hardware swaps, matching the original rotary address switches, and re-engaged the system loops. This direct replacement resolved the data timeout issues, stabilized valve control, and extended the reliable service life of the existing S800 remote I/O station infrastructure.
Frequently Asked Questions (FAQ)
Q1: What is the significance of the “C” suffix in the alternative part number NMTU-21C?
A: The “C” suffix in NMTU-21C indicates a newer manufacturing run or a component-level revision introduced by ABB. These revisions often include minor circuit layout optimization and an industrial-grade conformal coating layer. This coating helps protect the circuit board traces from moisture, dust, and corrosive airborne contaminants found in harsh environments. The NMTU-21 and NMTU-21C share the same core functional mapping and are fully backward compatible within S800 subrack stations.
Q2: Does the NMTU-21 module require firmware flashing before it can be deployed?
A: No, the module arrives with its core station bus operational code pre-loaded from the factory. It operates primarily as a hardware-driven communication pass-through and routing card for the S800 subrack. Once you configure its external rotary address switches to match the slot assignment in your hardware profile, the module will automatically inherit its specific configuration data from the central controller (e.g., PM864 or PM866) upon power-up.
Q3: How do you verify the functionality of the S800 bus interfaces before shipping?
A: Our quality assurance testing goes far beyond a simple visual check. We place every surplus module into an authentic ABB S800 subrack testing frame and connect it to a multi-channel I/O simulation loop.
[S800 Test Frame] ──> [NMTU-21 Interface Module] <──> [Multi-Channel I/O Simulator]
│
▼
[24-Hour Continuous Cyclic Stress Test] We subject the module to a continuous 24-hour cyclic data transfer stress test, sending and receiving packets to multiple downstream digital and analog cards to verify full data throughput, stable timing, and signal integrity before the module leaves our facility.
Q4: Can an NMTU-21 card manage both digital and analog S800 modules simultaneously on the same rack?
A: Yes, the NMTU-21 is designed to manage mixed subrack topologies. It serves as the primary station communication manager, enabling a single node configuration to handle up to 12 S800 extension cards in any combination—including digital inputs, digital outputs, analog inputs, and analog outputs—provided the total power draw remains within the limits of the station power supply.
Q5: What are the most common indicators that an operational NMTU-21 card is failing?
A: Common warning signs of a failing or degraded interface module include intermittent “Module Missing” or “Station Timeout” error alerts in your system diagnostic logs, a solid or flashing red Fault light on the card’s front plate, or random signal dropouts across an entire row of downstream I/O modules while the main power supply remains stable.
Q6: What payment and shipping methods do you offer for urgent emergency plant shutdowns?
A: We accept international wire transfers (T/T), corporate credit cards, and standard letters of credit. For emergency repairs during an unplanned outage, send over a copy of your bank’s wire transfer confirmation slip. Our logistics team will immediately pull the part from our stock, complete our quality verification testing, and hand it off to an express air courier (like DHL or FedEx) to minimize your facility’s downtime.
