1. Product Description

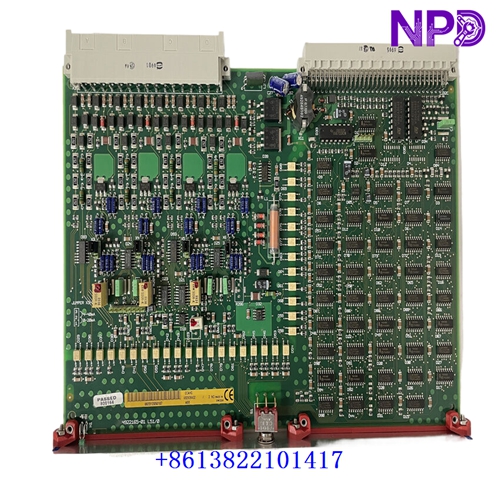

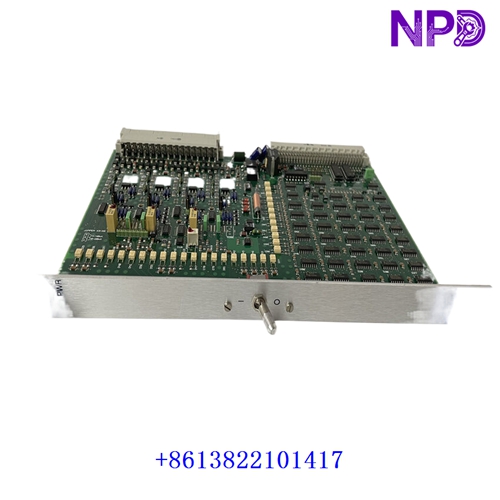

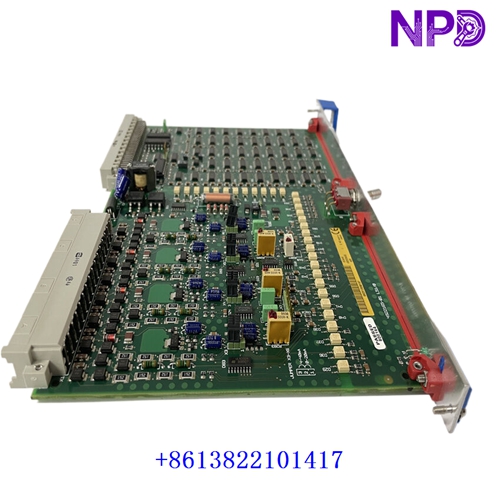

⚙️ The ABB OCAHG 492838402 is a four-channel analog output board in the Satt Rack I/O family. It converts control-system commands into analog signals for industrial field devices, such as valve positioners and actuators. Documented output ranges include 0–10 V and 0–20 mA / 4–20 mA, with output selection configured by board straps.
🔧 The four output channels are not galvanically isolated from one another. Before installation, verify the signal configuration, wiring, receiving-device requirements, and compatibility with the existing SattControl system. The additional code 800164 should be checked against the product label and purchasing documentation.
ABB OCAHG492838402
2. Product Parameters
📋 Brand: ABB
Model: OCAHG
Part Number: 492838402
Additional Code: 800164
Series: Satt Rack I/O
Product Name: 4-Channel Analog Output Board
Number of Outputs: 4
Output Signals: 0–10 V, 0–20 mA, 4–20 mA
Resolution: 8-bit
Configuration: Selectable by board straps
Control Modes: Automatic DDC / manual control, subject to system configuration
Place of Manufacture: To be confirmed
Product Status: Verify actual stock condition
Dimensions: Not verified
Weight: Approximately 0.3 kg reported for 492838402; confirm shipping weight
Country of Origin: Verify from the product nameplate
Power Requirements: Confirm from the applicable technical documentation
Discontinued: Confirm with ABB or the relevant system supplier
3. Recommended ABB Models
🔩 1. ABB OCAH 940181103 — Related Satt Rack I/O family module.
2. ABB DSAO120A 3BSE018293R1 — Analog output board.
3. ABB DASO110 57120001-AT — Four-channel analog output module.
4. ABB DASO120 57120001-EY — Analog output board.
5. ABB CAO10-P 3BDH000723R1 — Analog output module.
6. ABB AI815 — Analog input module.
7. ABB AI835 — Analog input module.
8. ABB AO810 — Analog output module.
9. ABB AO845A — Analog output module.
10. ABB CI626A 3BSE005029R1 — Communication interface.
11. ABB CI854A — PROFIBUS communication interface.
12. ABB PM851A — AC 800M controller.
13. ABB PM856K01 — AC 800M controller.
14. ABB PM861AK01 — AC 800M controller.
15. ABB TU819 — S800 I/O termination unit.
⚠️ The recommended models are related ABB automation products, not guaranteed drop-in replacements. Confirm the Satt Rack I/O system, hardware revision, and electrical requirements before ordering.
