Description

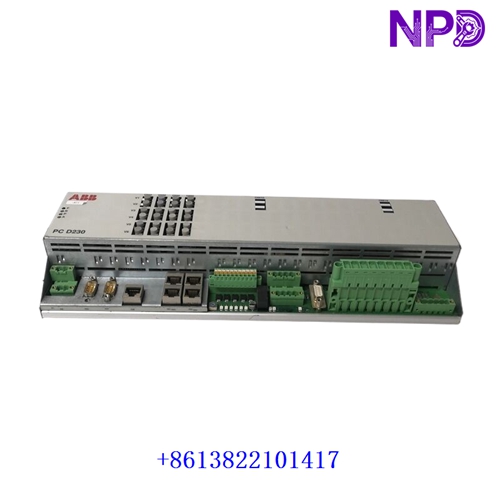

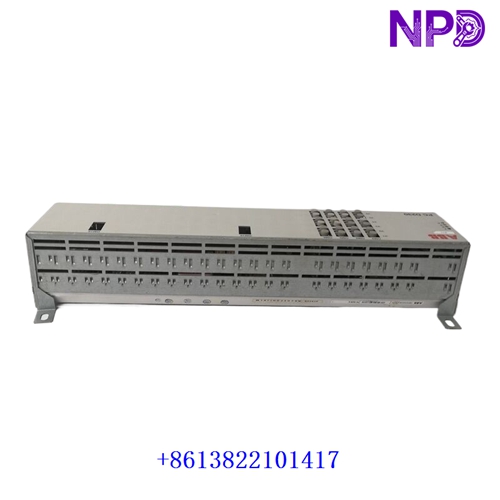

The ABB PCD230A (Catalog / Part Number: 3BHE022291R0101) is a high-performance control and interface processing board manufactured by ABB for high-power electronics, medium-voltage drives, and converter systems—including the PEC800, PCS6000, and ACS6000 / ACS1000 product families. Installed within the central control rack of the power converter assembly, the PCD230A provides real-time signal processing, system supervision, optical fiber link management, and gate drive firing control for high-power semiconductor bridges.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | ABB / Hitachi Energy |
| Module Type / Code | PCD230A / PCD 230 A |
| Catalog / Part Number | 3BHE022291R0101 |
| Product Line | ABB PEC800 / PCS6000 / ACS6000 Medium Voltage Drive & Converter Systems |
| Module Category | Processing & Fiber-Optic Communication Interface Board |
| Interfacing | High-speed fiber-optic channels, backplane control bus, system measurement inputs |
| Form Factor | Eurocard-style printed circuit board assembly |
Primary System Functions
- High-Speed Gate Control & Timing: Processes real-time pulse-width modulation (PWM) algorithms to generate precise firing pulses transmitted via fiber-optic links to gate unit drivers (IGCTs/IGBTs).
- Fiber-Optic Communication Management: Features dedicated optical transceiver channels to isolate high-voltage power components from sensitive control processing electronics, preventing electromagnetic noise coupling.
- Converter Protection & Interlocking: Continuously monitors converter status, DC-link voltages, phase currents, and cooling systems, executing immediate trip interlocks during overcurrent or phase-fault conditions.
- System Bus Synchronization: Exchanges control setpoints, diagnostic alarms, and system telemetry across the PEC800 / PCS6000 backplane with master system controllers.
Servicing & Replacement Guidelines
- High Voltage & Residual Energy Safety: Power converters operate at lethal medium-voltage levels. Ensure the main AC feeder breaker is locked out, DC bus capacitors are fully discharged, and safety grounds are verified prior to opening cabinet doors or servicing the board.
- Electrostatic Discharge (ESD) Protection: Sensitive CMOS processors, FPGAs, and optical transceivers require strict static controls. Always wear a grounded anti-static wrist strap during board handling.
- Fiber-Optic Cable Care: Maintain cleanliness on all optical fiber connectors. Do not bend fiber cables beyond their minimum bend radius, and use protective dust caps when disconnecting optical links.
- Firmware & Jumper Verification: Before placing a replacement PCD230A board into service, verify that onboard DIP switch configurations and optical port mapping match the project parameters in ABB commissioning software.
