Description
- Model: PCD230A
- Part Number: 3BHE022291R0101
- Brand: ABB (Switzerland)
- Series: Unitrol 6000 / Large AC Drives
- Function: Current measurement, signal conditioning, and scaling.
- Type: Analog Measurement Board
- Input Range: Designed to interface with standard Current Transformers (CTs) or Shunts.
- Precision Scaling: Utilizes high-stability resistors and operational amplifiers to ensure linear scaling of high-power currents into control-level voltages.
- Isolation: High galvanic isolation to protect the sensitive control electronics from high-voltage surges on the power side.
- Signal Output: Provides standardized analog signals to the COB (Control Board) or AMC (Advanced Management Controller).
- Redundancy Support: Compatible with redundant Unitrol 6000 architectures where dual measurement paths are required for SIL compliance.
- Build Quality: Features industrial-grade electrolytic capacitors and a thermal-resistant PCB substrate for cabinet mounting near power thyristors.

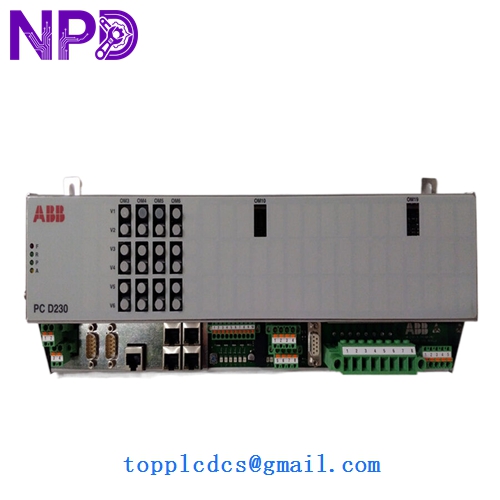

ABB PCD230A 3BHE022291R0101

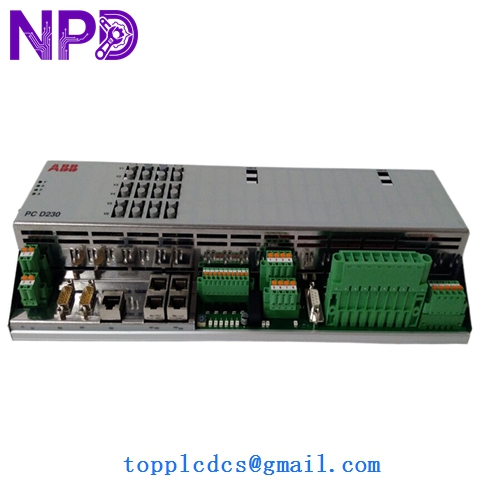

ABB PCD230A 3BHE022291R0101
ABB PCD230A 3BHE022291R0101
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 15 minutes)
⚠️ DANGER: High Current Hazard: Current Transformer (CT) circuits must never be opened while the primary is energized. An open-circuit CT can generate lethal voltages.
- System Lockout: Ensure the generator is offline and all excitation transformers are locked out and tagged out (LOTO).
- CT Shorting: Use a dedicated shorting block to safely bypass the CT leads before disconnecting them from the PCD230A.
- ESD Safety: Use a grounded anti-static wrist strap. The analog circuitry on the PCD230A can be damaged by static discharge.
Phase 2: Removal & Replacement (Step-by-Step)
- Labeling: Mark each wire lead. The 3BHE022291R0101 involves polarity-sensitive current measurements; swapping S1 and S2 leads will cause a 180° phase error.
- Extraction: Unscrew the retaining fasteners and pull the board away from the standoffs.
- Pin Check: Inspect the multi-pin headers for any signs of arcing or corrosion.
Phase 3: Commissioning
- Mounting: Secure the new PCD230A. Ensure the mounting screws are tight, as they often provide the functional ground path for noise shielding.
- Power-Up: Apply control power and verify that the “Health” or “Status” LED is illuminated.
- Calibration Verification:
- Using the ABB Control Builder tool, monitor the measured current values.
- Compare the HMI reading with a calibrated clamp meter on the secondary side to ensure the scaling matches the original board’s configuration.
Customer Cases & Industry Applications
Case 1: Correcting Unstable Excitation in a Hydro Plant A hydroelectric facility reported “hunting” behavior in their generator’s reactive power output. Troubleshooting found that the original PCD230A board had developed “signal noise” due to aging filter capacitors. Replacing the unit with a New Surplus 3BHE022291R0101 immediately stabilized the current feedback loop, allowing the plant to return to stable grid-synchronized operation.
Case 2: Emergency Response for a Thermal Power Station During a routine maintenance window, a technician accidentally damaged a terminal block on the PCD230A. The plant could not restart without the excitation current monitoring active. We provided a New Surplus board via express courier. The part was installed and verified in under 6 hours, preventing an extended outage that would have cost the plant over $150,000 in lost generation revenue.
Frequently Asked Questions (FAQ)
Q: Is the PCD230A 3BHE022291R0101 a direct replacement for older revisions? A: Yes, the R0101 version is typically the latest hardware revision for the PCD230A and is designed to be backward compatible with earlier R-versions within the Unitrol 6000 series.
Q: Does this board require software programming? A: No, the PCD230A is a measurement and scaling board (hardware-based). However, the scaling factors (the ratio of measured current to reported signal) must be verified in the controller software to match your specific CT ratios.
Q: Why choose “New Surplus” over “Refurbished”? A: In excitation systems, accuracy is life. Refurbished boards often have “drift” issues because the precision resistors have been heat-stressed over years of service. New Surplus ensures you are getting original factory accuracy and the full component lifespan.
Q: Do you provide a Certificate of Conformance? A: Yes, we provide an internal Functionality Test Report and inspection certificate for all 3BHE022291R0101 units to ensure they meet original ABB manufacturing standards before they leave our warehouse.
