Description
The ABB PCD231B (Part Number: 3HHE025541R0101) is a specialized communication interface board designed for the AC800PEC (Power Electronics Controller) system. It serves as a high-speed data bridge between the controller’s main processor and various peripheral interfaces, typically used in high-power conversion applications where microsecond-level synchronization is required.
Product Parameters (Datasheet)
- Model Number: PCD231B
- Part Number: 3HHE025541R0101
- System Family: AC800PEC
- Application: High-speed communication and signal processing
- Interfaces: * Fiber optic ports for high-speed local bus connection
- Service/Diagnostic ports
- Operating Voltage: 24 V DC (Internal supply via backplane)
- Power Consumption: Approx. 10–15 Watts
- Redundancy Support: Compatible with redundant controller configurations
- Isolation: Optical isolation for noise immunity in high-EMI environments

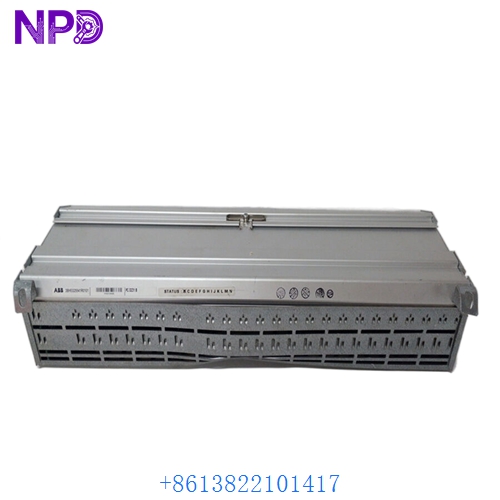

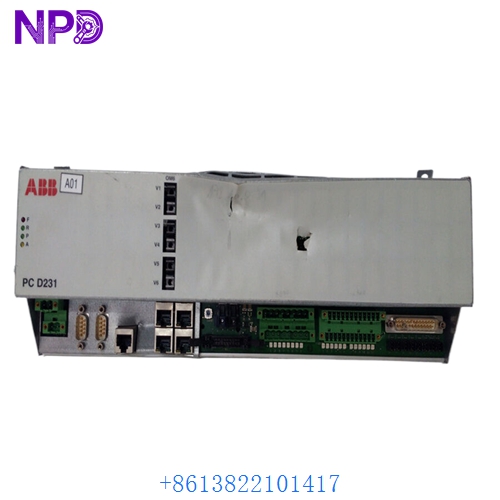

ABB PCD231B 3HHE025541R0101
ABB PCD231B 3HHE025541R0101
ABB PCD231B 3HHE025541R0101
Country of Origin
This high-precision control board is engineered and manufactured by ABB in Switzerland, the global center for ABB’s high-power electronics and excitation systems.
Application Fields
The PCD231B is a core component in systems requiring extreme processing speeds and electrical isolation:
- Excitation Systems (UNITROL): Used in UNITROL 6000 series for large generator control in power plants.
- Static Frequency Converters (SFC): Managing power conversion for railway grids or hydro-pumped storage.
- High-Power Rectifiers: Controlling DC power for aluminum smelting and chemical electrolysis.
- Wind Power Converters: Managing the high-frequency switching logic for large offshore wind turbines.
- Energy Storage Systems (BESS): Coordinating power flow in grid-scale battery installations.
Product Usage Instructions
- Rack Installation: Insert the PCD231B into the designated slot of the AC800PEC subrack. Ensure the module is fully seated to engage the high-speed backplane connectors.
- Fiber Optic Connections: Use clean, high-quality fiber optic cables to connect the PCD231B to other PEC modules or remote I/O. Caution: Do not exceed the minimum bend radius of the fiber cables.
- Firmware Loading: Use ABB Control IT or PEC Tool software to verify and, if necessary, update the firmware to match the master controller’s version.
- Diagnostic Monitoring: Monitor the front-panel LEDs. A steady green “RUN” LED indicates the board is synchronized with the system bus. A red “FAULT” LED indicates a hardware or communication failure.
- Grounding: Ensure the subrack is properly bonded to the central grounding point of the cabinet to mitigate electromagnetic interference from high-power switching.
Product Technical Description
The PCD231B is designed to handle the “Fast Loop” communications within the AC800PEC environment. Technically, it offloads communication tasks from the main CPU, allowing for deterministic control cycles as fast as 25 microseconds. In power electronics, where timing is critical to prevent semiconductor damage, the PCD231B ensures that firing pulses and feedback signals are transmitted across fiber optic links with minimal jitter. Its optical interfaces provide inherent galvanic isolation, which is vital in high-voltage environments to prevent “noise” from the power stage from interfering with the sensitive control logic.
Q&A (Common Questions)
- Q: Is the PCD231B hot-swappable?
- A: While the hardware is robust, swapping a communication board in an AC800PEC system while live can cause an immediate system trip. It is highly recommended to perform replacements only during a scheduled shutdown.
- Q: What is the difference between PCD231A and PCD231B?
- A: The “B” revision typically includes hardware optimizations for better thermal management or updated components to replace obsolete parts. They are generally backward compatible, but firmware checks are required.
- Q: My board has a “Fiber Error” LED; what should I do?
- A: First, clean the fiber optic connectors with specialized wipes. If the error persists, test the cable with a light meter. If the cable is good, the transceiver on the PCD231B may have failed.
- Q: Can this be used in a standard AC800M PLC rack?
- A: No. The PCD231B is specific to the PEC (Power Electronics Controller) series and is not compatible with standard AC800M (Process Automation) hardware.
Similar Model Recommendations
- ABB PCD230A: Related communication interface module.
- ABB PP D113: Main Processor module for AC800PEC systems.
- ABB UNITROL 6000: Complete excitation system utilizing these boards.
- ABB UNS0863A: Power supply module for PEC racks.
- ABB PFTL101B: Load cell/specialized signal interface often used in similar high-power environments.
