Description
Product Specifications
- Origin: Switzerland
- Weight: 1.15 lbs (0.52 kg)
- Dimensions: 9.2 inches x 4.8 inches x 1.1 inches
- Series: AC 800PEC / UNITROL 6000
- Communication Interface: Integrated high-speed fiber optic links and Fieldbus connectivity.
- Main Task: High-performance communication processing and data synchronization for power conversion systems.
- Part Number: 3BHE025541R0101 (Revision R0101)
The ABB PCD231B101 is a high-speed communication module designed for the AC 800PEC (Power Electronic Controller) system, which is widely utilized in excitation systems like the UNITROL 6000 and high-power rectifiers. This module serves as a bridge for complex data exchange between the central processing units and distributed I/O or power electronic stages. It is engineered to handle real-time control data with extremely low jitter, ensuring that synchronization signals for firing pulses and protection logic are transmitted across the system with microsecond precision. Its robust design features advanced diagnostic capabilities to monitor link integrity and data packet consistency in the harsh electromagnetic environments of power plants.

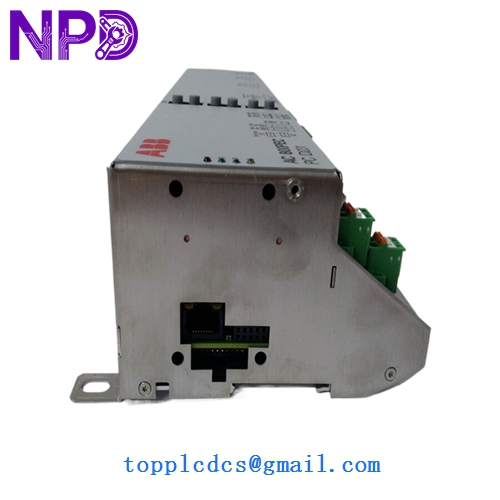

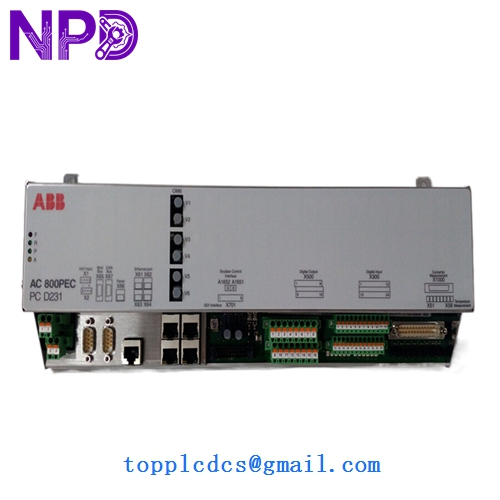

ABB PCD231B101 3BHE025541R0101
ABB PCD231B101 3BHE025541R0101
ABB PCD231B101 3BHE025541R0101
Model Comparison: PCD231B101 vs. Similar Models
The PCD231B101 (3BHE025541R0101) is distinguished from the PCD230 and earlier PCD231A variants by its upgraded processing hardware and enhanced optical transceiver throughput. The “B” series designation often signifies a hardware revision that supports more advanced protocol stacks and a higher number of concurrent communication channels. While the physical form factor remains compatible with the standard AC 800PEC subrack, the R0101 revision incorporates improved surge protection and more efficient power regulation compared to previous R-level iterations, making it the standard replacement for systems requiring maximum communication reliability.
Operational Guidelines
- Hot-Swap Warning: While the AC 800PEC system is robust, always verify if the specific controller configuration supports hot-swapping before removing the PCD231B101. Unauthorized removal can cause a “Communication Timeout” and trigger a system-wide trip.
- Fiber Optic Maintenance: The module utilizes fiber optic ports for high-speed data. Ensure all fiber ends are inspected for scratches and cleaned with a specialized fiber cleaner before insertion to prevent signal attenuation or “Bit Error Rate” (BER) alarms.
- Revision Synchronization: When replacing a module, ensure the 3BHE part number and revision match the existing system configuration to avoid firmware compatibility issues that could prevent the module from reaching an “Operational” state.
- ESD Protection: Always handle the board by the front panel or the edges of the PCB. Use a grounded ESD wrist strap, as the communication chips and optical components are sensitive to static discharge.
