Description
The ABB PCD235A101 (Part number 3BHE032025R0101) is a high-performance control and interface board belonging to the AC800PEC and UNITROL 6000 product families. It is designed to handle complex control tasks in high-power conversion systems, acting as a bridge between high-speed logic processing and the physical power hardware.
Product Parameters (Datasheet)
- Model Number: PCD235A101
- Part Number: 3BHE032025R0101
- Product Series: AC800PEC / UNITROL 6000
- Component Type: Control Interface / Processing PCA
- Communication: Integrated high-speed fiber optic ports and DDCS protocol support
- Power Supply: 24V DC (Logic power)
- Digital I/O: High-speed inputs for pulse measurement and synchronization
- Environmental Rating: Industrial grade with protective coating for harsh environments

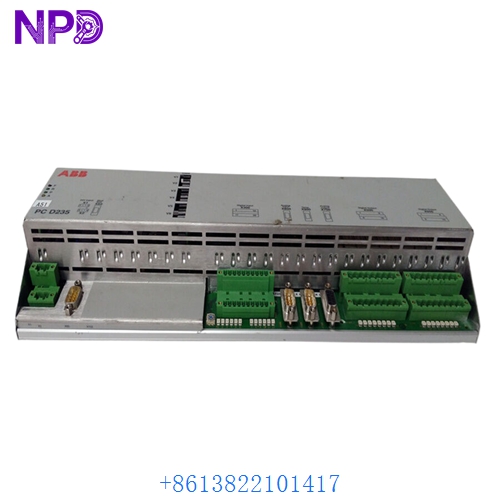

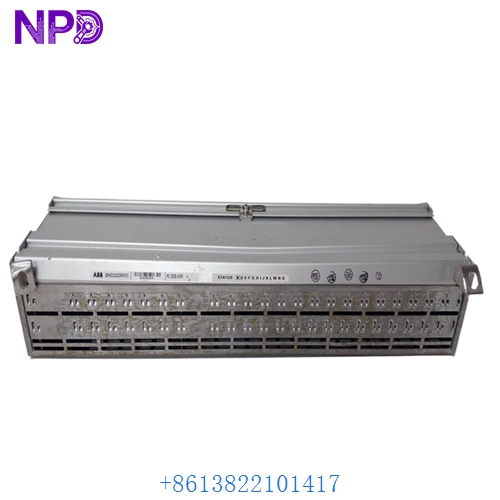

ABB PCD235A101 3BHE032025R0101
ABB PCD235A101 3BHE032025R0101
ABB PCD235A101 3BHE032025R0101
Country of Origin
This precision control component is manufactured by ABB in Switzerland. It is produced at the Turgi factory, which is specialized in the development of world-class excitation and power electronics control systems.
Application Fields
The PCD235A101 is primarily utilized in large-scale energy and industrial power systems:
- Excitation Systems: A core component of the UNITROL 6000 series used to control the field current of large synchronous generators in power plants.
- Medium Voltage Drives: Integrated into ACS6000 drive systems for the control of high-power motors in mining and marine propulsion.
- Grid Stabilization: Used in Static Var Compensators (SVC) and STATCOM units to manage reactive power and voltage stability.
- Wind Power Converters: Managing the switching frequencies of multi-megawatt wind turbine power converters.
Product Usage Instructions
- ESD Safety: This board is populated with high-density integrated circuits. Use a grounded anti-static wrist strap during installation to prevent damage.
- Backplane Installation: Ensure the module is correctly aligned with the rack guides. Push firmly until the backplane connectors are fully engaged, then secure the mounting screws.
- Optical Links: The fiber optic ports are safety-critical. Clean the fiber tips with an approved cleaner before insertion. A loose or dirty fiber connection can cause a “Control Loss” trip.
- Firmware Loading: This board often requires specific application firmware (e.g., UNITROL 6000 logic) to be loaded via ABB Control Studio or MATLAB/Simulink.
- Thermal Management: Ensure the control cabinet’s fan units are functional. The high-speed processors on the PCD235 can generate significant heat during operation.
Product Technical Description
The PCD235A101 functions as a specialized “Logic Hub.” Technically, it is designed to execute real-time control algorithms with deterministic timing. It processes feedback signals from voltage and current transformers and generates high-speed firing commands for thyristor or IGCT power stacks. Its architecture is optimized for low-latency communication, ensuring that the system can respond to grid disturbances or load changes in microseconds. The board includes extensive self-diagnostic features that monitor the health of the onboard processors and the integrity of the communication links.
Q&A (Common Questions)
Q: Can I use a PCD235A101 to replace an older PCD230 board? A: Generally, the PCD235 is a modern successor. While it may fit the same slot, you must verify that the system firmware and backplane mapping are compatible with the updated hardware.
Q: What do the onboard LEDs indicate? A: A green “Run” LED indicates normal operation. A steady red LED indicates a “Fatal Fault” (Hardware failure), while a flashing red/yellow LED usually indicates a communication error or “Config Missing” state.
Q: Is the board conformal coated? A: Yes, the 3BHE032025R0101 version typically features a protective coating to prevent corrosion in industrial environments containing moisture or chemical traces.
Q: Does it support Modbus TCP directly? A: Direct Modbus is usually handled by a separate communication module (like the CI867); the PCD235 focuses on high-speed internal system control via DDCS.
Similar Model Recommendations
- ABB GVC750BE101 (Central Processing Unit)
- ABB PCD231 (Related Control Board)
- ABB PCD230 (Legacy series variant)
- ABB 3BHE022293R0101 (Power Supply Module)
- ABB CIO626 (I/O Extension Module for UNITROL 6000)
For further technical support or to procure the ABB PCD235A101 3BHE032025R0101, please contact our automation engineering team.
