Description

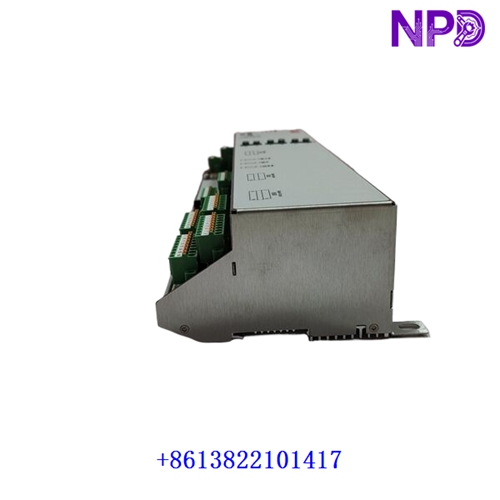

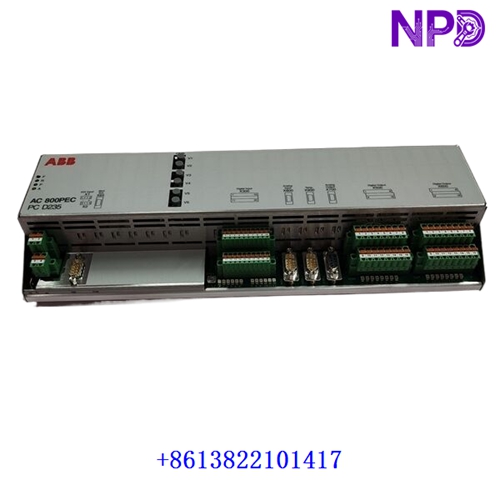

The ABB PCD235C101 3BHE057901R0101 is an excitation control module associated with ABB’s AC 800PEC platform. It is designed for high-speed control applications in power electronics and generator excitation systems. Available technical references identify the unit as an ABB Exciter Control Module used for excitation regulation and control.
The module is intended for demanding power-generation applications where the excitation system must regulate generator voltage and reactive-power behavior. The AC 800PEC platform supports high-performance control and a range of native and optional communication interfaces, including PROFIBUS DP, Modbus TCP, IEC 61850, Powerlink, Drivebus, CANopen, and other interfaces depending on configuration.
🔧 Main Function
The PCD235C101 is used as part of an excitation control system for generators and power-electronic equipment. It processes control signals and provides the regulation functions required to maintain stable excitation conditions.
Available specifications for this exact part describe a 110/220 VAC ±10% or 24/48 VDC supply, a 0–300 VDC adjustable field-voltage range, and a 0–20 A DC continuous field-current range. These figures should be checked against the actual hardware configuration before commissioning.
🏭 Typical Applications
• Generator excitation systems
• Power generation plants
• Hydro power systems
• Turbo-generator systems
• Static excitation systems
• Power-electronics control
• Industrial generator control
• AC 800PEC-based automation systems
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | PCD235C101 |
| Part Number | 3BHE057901R0101 |
| Product Type | Excitation Control Module |
| Control Platform | ABB AC 800PEC |
| Main Function | Excitation Regulation |
| Input Power | 110/220 VAC ±10% or 24/48 VDC* |
| Field Voltage | 0–300 VDC adjustable* |
| Field Current | 0–20 A DC continuous* |
| Control Accuracy | ±0.25% of setpoint* |
| Response Time | <10 ms* |
| Voltage Regulation | ±0.5% of nominal* |
| Frequency Range | 40–70 Hz* |
| Operating Temperature | -20°C to +55°C* |
| Storage Temperature | -40°C to +85°C* |
| Humidity | 5–95% RH, non-condensing* |
| Weight | Approx. 1.6 kg* |
| Country of Origin | Sweden* |
| Application | Generator / Excitation Control |
*Electrical and mechanical figures above are compiled from available technical listings for this exact part number; verify the installed hardware revision and nameplate before using them for engineering or replacement.
⚡ Key Features
• ABB AC 800PEC platform compatibility
• Excitation regulation for generator systems
• High-speed control response
• Adjustable field-voltage control
• Continuous field-current regulation
• Designed for power-electronics applications
• Suitable for industrial and utility power generation
• Supports integration with ABB automation architectures
🔌 Communication & System Integration
The AC 800PEC platform provides extensive communication capability. Depending on the installed configuration, native interfaces can include MMS, Modbus TCP, IEC 61850, ABB Powerlink, Drivebus, Iba-PDA, Optical Modulebus, and CANopen. Additional communication functions can be provided through CEX or Anybus modules.
For an existing excitation system, communication configuration should be matched to the original project architecture rather than assuming that every interface is available on every PCD235C101 installation.
🛠️ Installation Notes
Before installation, verify PCD235C101 / 3BHE057901R0101, hardware revision, power supply arrangement, excitation-system configuration, field-voltage range, and field-current requirements.
Check all excitation wiring carefully before energizing the system. In particular, verify polarity, field connections, control signals, grounding, and communication interfaces.
⚙️ Commissioning Checklist
• Verify module part number
• Check hardware revision
• Confirm auxiliary power
• Verify field voltage range
• Verify field current requirements
• Inspect control wiring
• Check communication connections
• Confirm excitation parameters
• Perform controller diagnostics
• Test excitation response
• Verify generator voltage regulation
• Record final settings
⚠️ Compatibility Notice
The ABB PCD235C101 3BHE057901R0101 is an excitation-control component, not a general-purpose PLC I/O module. Its suitability as a replacement depends on the complete AC 800PEC/excitation-system architecture, firmware, hardware revision, power arrangement, I/O configuration, and control application.
For critical generator applications, compare the original module’s nameplate and configuration with the replacement before installation.
📦 Product Identification
Brand: ABB
Model: PCD235C101
Part Number: 3BHE057901R0101
Product Type: Excitation Control Module
Platform: AC 800PEC
Function: Generator Excitation Regulation
Application: Power Generation / Power Electronics
Origin Reference: Sweden*
