Description
The ABB PDD200A101 (Part Number: 3BHE019633R0101) is a high-performance Pulse Distributor module used within ABB’s Power Electronics systems. It is primarily utilized in UNITROL 6000 excitation systems and MEGADRIVE-LCI (Load Commutated Inverter) frequency converters. The board acts as a signal buffer and distributor, ensuring that firing pulses from the central control unit are accurately delivered to multiple power semiconductor thyristors or IGBTs.

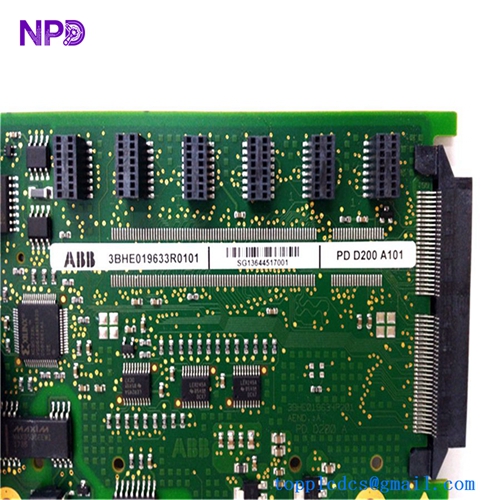

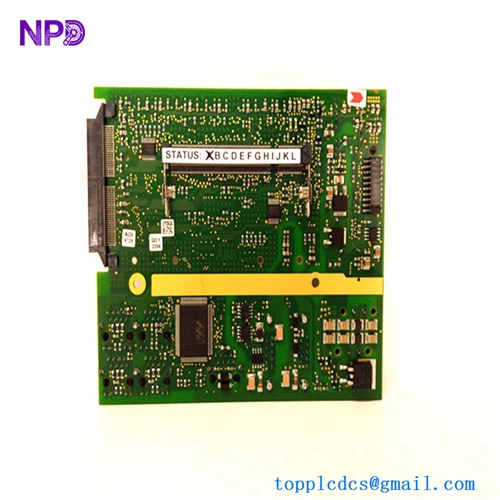

ABB PDD200A101 3BHE019633R0101
Product Technical Description
The PDD200A101 serves as a critical intermediary interface. In large-scale power converters, a single control signal must often trigger multiple power modules simultaneously. This board receives the master pulse and redistributes it with high precision and galvanic isolation.
- Signal Integrity: It is designed to maintain sharp pulse edges even over extended internal wiring, which is essential for the reliable switching of high-power semiconductors.
- Fiber-Optic Integration: Many versions of this board interface with fiber-optic links to isolate the high-voltage power section from the low-voltage control electronics.
- Redundancy: In critical applications, the PDD200A101 is used in parallel configurations to ensure that the loss of one signal path does not lead to a system-wide failure.
Product Datasheet (Parameters)
| Parameter | Specification |
| Product ID | 3BHE019633R0101 |
| Model Designation | PDD 200 A101 |
| Function | Pulse Distribution / Signal Buffering |
| Input Signal | 24V DC or Fiber-Optic Pulse (Configuration dependent) |
| Output Channels | Multiple high-speed pulse outputs |
| Supply Voltage | 24V DC (±10%) |
| Isolation Voltage | Up to 2.5 kV (Signal to Ground) |
| Operating Temperature | -5°C to +70°C |
| Dimensions | Standard ABB Power Electronics Eurocard format |
| Country of Origin | Switzerland |
Technical Characteristics
- High Drive Capability: The outputs are designed to drive the input stages of Gate Driver Boards (GDBs) without signal degradation.
- Short-Circuit Protection: Each output channel is typically protected against accidental short circuits to prevent damage to the main control processor.
- Status Monitoring: Equipped with diagnostic LEDs to indicate the presence of input pulses and the status of the local power supply.
Common Questions & Answers (Q&A)
Q: Can the PDD200A101 be used in a UNITROL 5000 system? A: No, the PDD200A101 is specifically designed for the UNITROL 6000 and LCI series. While functions may overlap, the physical dimensions and connector pinouts are generally incompatible with the UNITROL 5000 series.
Q: What happens if the input pulse is lost? A: The board will immediately cease all output pulses. In an excitation system, this usually triggers an “Excitation Fault” and leads to a safe shutdown of the converter to protect the generator.
Q: Does this board require manual calibration? A: No calibration is required. It is a digital/pulse-based distribution board. However, timing delays should be verified during commissioning if very long fiber cables are used.
Q: Why is there an “A101” suffix? A: The “A101” denotes a specific hardware revision and component load-out. When replacing a unit, it is vital to match this suffix to ensure identical timing and electrical characteristics.
Similar Model Recommendations (8 Units)
- PDD200A102: A variant with different channel counts or signal levels.
- 3BHE019633R0001: An earlier revision of the PDD200 series.
- PPC907BE: The “Power PC” controller board often used as the source for the PDD inputs.
- 3BHE033067R0103 (GCC960C103): A central control unit that works in tandem with pulse distributors.
- GDB021: A Gate Driver Board that typically receives signals from the PDD200.
- CIN185: A specialized interface board used in the same power stacks.
- 3BHE014105R0001: A related pulse amplifier board used in older LCI systems.
- VLU021: A Voltage Limiting Unit used alongside pulse distribution for circuit protection.
