Description
- Model: ABB PDD200A101 (Catalog No: 3BHE019633R0101)
- Brand: ABB (Switzerland)
- Series: PEC (Power Electronic Controller) / ACS800 / UNITROL 6000
- Core Function: Power Distribution and Drive Interface for high-power converters
- Product Type: Power Distribution Board / Gate Driver Interface
- Key Specs: 24 V DC internal logic, Multi-channel fiber optic triggering, Integrated current sensing interface
- Main PCB Assembly: 3BHE019634P201 (The physical circuit board number)
- Input Voltage: 24 V DC nominal (Main control power)
- Output Channels: Supports multi-phase firing pulse distribution via fiber optics or ribbon headers
- Isolation: High-voltage galvanic isolation between control logic and power stage
- Connectors: High-density DIN connectors for subrack integration and screw terminals for field power
- Communication: Inter-board communication link via internal bus for status monitoring
- Diagnostic LEDs: Indicators for Power OK, Fault status, and Communication activity
- Mounting Form: Eurocard format for standard ABB PEC subracks
- Operating Temp: -10 to +60 °C
- Humidity: 5% to 95% Non-condensing

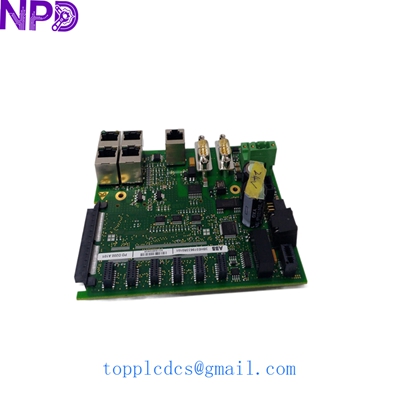

ABB PDD200A101 3BHE019633R0101 3BHE019634P201
Application Scenarios & Pain Points
The ABB PDD200A101 is a specialized power distribution module typically used within the PEC (Power Electronic Controller) system. Its primary role is to act as the “distribution hub” for control power and firing signals. It ensures that the sensitive gate-triggering commands from the main processor (like a PM866 or AC800M) are cleanly distributed to the power modules (IGCTs or Thyristors).
Typical Application Scenarios:
- UNITROL 6000 Excitation Systems Used in large-scale generator excitation to distribute power to the firing circuits of the thyristor bridge.
- ACS800/ACS6000 Medium Voltage Drives Managing the gate driver power and feedback signals for high-horsepower motor control in the mining or oil industries.
- MEGATROL Power Conversion Integrated into combined start/excitation systems for gas turbines.
- Marine Electric Propulsion Coordinating power distribution in large shipboard converters where redundancy is critical.
The “Link Fail” Trap: I have frequently observed that faults attributed to the 3BHE019633R0101 are actually caused by the ribbon cables or fiber optic links connecting to the gate units. If the system reports a “Power Supply Fault” specifically on this board, verify the input 24 V DC rails first. If the rail is stable but the “OK” LED is off, the on-board voltage regulators on the 3BHE019634P201 PCB have likely failed due to thermal fatigue.
Compatible Replacement Models
The PDD200 series is part of a specific hardware family. Matching the “R” (Ordering) and “P” (PCB) numbers is essential for firmware and physical fit.
| Original Model | Replacement Model | Compatibility | Main Difference | Impact |
| PDD200A101 | PDD200A102 | ✅ Direct Replacement | Component revision | Plug & Play |
| PDD200A101 | 3BHE019633R0001 | ⚠️ Software Compatible | Different I/O config | Requires parameter check |
| PDD200A101 | PDD100 | ❌ Incompatible | Older architecture | Physical mismatch |
Engineering Note: The number 3BHE019634P201 is often etched on the board itself. When verifying compatibility, this number is more reliable than the sticker on the front handle, as the front handle can sometimes be swapped between different board revisions during field repairs.
ABB PDD200A101 3BHE019633R0101 3BHE019634P201
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to This Board | Quick Check | Action |
| “Supply Error” Alarm | Voltage Regulator Fail | ✅ High | Measure logic test points | Replace board |
| Incomplete Firing | Signal Path Interruption | ✅ High | Check fiber optic Tx/Rx | Clean ports or replace |
| Intermittent Comm Loss | Connector Oxidation | ⚠️ Medium | Inspect gold pins on back | Clean with contact cleaner |
| Module “FAIL” LED On | Internal Self-Test Fail | ✅ High | Cycle 24V power | If stays Red, replace board |
Our 5-Step Quality Assurance Process:
- Visual Audit: We inspect the 3BHE019634P201 PCB for any signs of capacitor leakage or heat-discolored traces.
- Pin Alignment: We verify that the high-density backplane connector is perfectly straight to prevent cabinet damage.
- Power-On Validation: The module is energized in a PEC test subrack to verify that all on-board voltage rails (+5V, +15V, -15V) are within 1% of spec.
- Signal Distribution Test: We verify that a signal applied to the input header is correctly distributed to all output ports with zero latency.
- Secure Packing: Shipped in a moisture-barrier bag with reinforced corner protection for international transit.
For a technical quote or a PDF manual: Visit www.newplcdcs.com
