Description

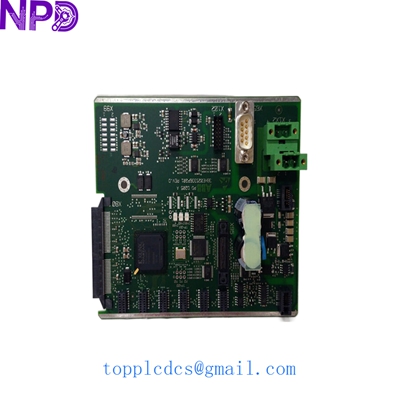

- The ABB PDD205A1121 (Part Numbers: 3BHE025335R1121 / 3BHE025336P201) is a high-performance drive control and power conversion module. It is primarily utilized within the ABB ACS series and specialized excitation systems (such as UNITROL) to provide precise regulation of high-power industrial electrical drives.
ABB PDD205A1121 3BHE025335R1121 3BHE025336P201
Product Specifications
Parameter Specification Manufacturer ABB Model Number PDD205A1121 Part Number (ID) 3BHE025335R1121 / 3BHE025336P201 Country of Origin Switzerland Dimensions 240 x 135 x 45 mm (approx.) Weight 1.15 kg Input Voltage 24 VDC Control Power Communication DDCS / AF 100 / Fiber Optic Support Operational Guidelines & Precautions
- Fiber Optic Handling: The module uses sensitive fiber optic ports for high-speed communication. Avoid sharp bends in the cables and ensure dust caps are used when disconnected.
- Electrostatic Discharge (ESD): Always wear an anti-static wrist strap during installation or replacement to prevent damage to the internal microprocessor.
- Heat Dissipation: Ensure the module is mounted in a climate-controlled cabinet with active airflow. Excess heat is the primary cause of signal drift in these units.
- Firmware Matching: Before replacement, verify that the firmware revision of the new module matches the existing system configuration to avoid synchronization errors.
ABB PDD205A1121 3BHE025335R1121 3BHE025336P201
Frequently Asked Questions (Q&A)
Q1: What is the difference between the 3BHE025335 and 3BHE025336 numbers? Typically, the 3BHE025335 refers to the complete functional assembly (the “R” number), while the 3BHE025336 (the “P” number) refers to the printed circuit board (PCB) itself.
Q2: Can this module be used in wind power applications? Yes, this specific series is frequently found in ABB PCS6000 converters used for wind turbines and grid stabilization.
Q3: Does the PDD205A1121 require manual calibration? Most parameters are handled digitally via the system software, but zero-point offset checks should be performed during commissioning.
Recommended Similar Models
Model Number Description PDD200A101 Standard Drive Control Interface PCD235A101 Pulse Transformer & Drive Unit PCD230A101 High-Speed Pulse Distributor Module 3BHE022293R0101 PPC907BE Excitation Control Board 3BHE039203R0101 UNS0883a-P_V1 Logic Unit For reliable sourcing and current stock availability, please visit NEW PLC DCS.
