Description
Product Overview
The ABB PDD205A1121 is a high-performance power drive / inverter module designed for industrial motor control and variable-speed drive applications. Engineered for robust operation, this drive module provides efficient power conversion, precise speed control, and reliable protection features suitable for heavy-duty automation environments. It is commonly used in pumps, fans, conveyors, compressors, and other systems requiring adjustable speed and torque control.
This drive assembly includes the following internal components:

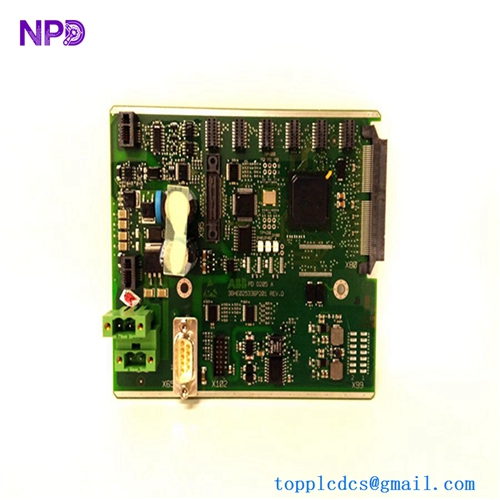

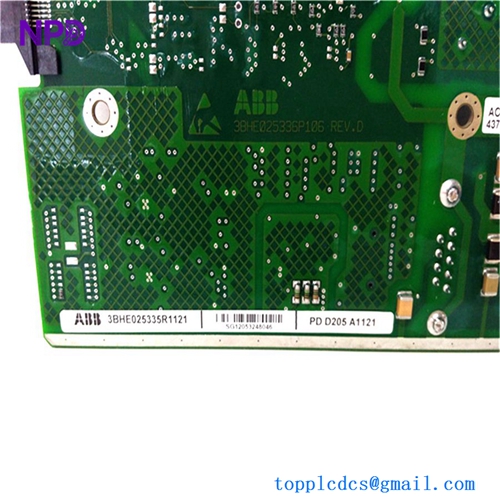

- 3BHE025335R1121 — Power electronics module
- 3BHE025336P201 — Interface and control assembly
These complement each other to form a complete power drive solution ensuring stable performance and precise motor control.
ABB PDD205A1121 3BHE025335R1121 3BHE025336P201
Product Parameters
- Model: PDD205A1121
- Internal Components:
- Power Module: 3BHE025335R1121
- Control/Interface Assembly: 3BHE025336P201
- Product Type: Industrial Power Drive Module
- Application: Variable speed motor control
- Input Supply: Three-phase AC input
- Output Power Range: Medium power class (system dependent)
- Control Method: PWM (Pulse Width Modulation) based drive control
- Cooling Method: Forced air or heat sink cooling
- Mounting: Cabinet / panel mount
- Protection Features: Overcurrent, overvoltage, thermal protection
- Operating Temperature: Industrial operating range
- Isolation: Galvanic isolation between control and power circuits
Product Datasheet (Key Technical Data)
| Specification | Description |
|---|---|
| Drive Type | Variable speed power drive |
| Model Number | PDD205A1121 |
| Power Module | 3BHE025335R1121 |
| Control Module | 3BHE025336P201 |
| Input Voltage | Three-phase AC |
| Output Frequency | Adjustable up to rated max |
| Control Technique | PWM with feedback |
| Cooling | Forced air / Heat sink |
| Protection | Overcurrent, overvoltage, overtemperature |
| Mounting | Cabinet mount |
| Application | AC motor speed & torque control |
Country of Origin
- Original Manufacturer: ABB
- Country of Origin: Sweden
Product Technical Description
The PDD205A1121 drive module is designed to convert AC electrical power into adjustable frequency and voltage suitable for controlling AC motors. It combines a power electronics stage (3BHE025335R1121) with a control/interface assembly (3BHE025336P201) that manages drive operation, feedback monitoring, and protection logic.
The power module uses advanced semiconductors and switching techniques to produce a stable PWM output. This ensures smooth motor acceleration, deceleration, and speed regulation under varying load conditions. The control module interprets setpoints from a higher-level controller or local operator panel and adjusts modulation parameters accordingly.
Protection mechanisms safeguard the drive and connected motor against electrical faults and thermal overload. The module’s design supports industrial duty cycles and continuous operation, making it suitable for demanding automation systems.
Frequently Asked Questions (Q&A)
Q1: What type of motors can this drive control?
A1: It is designed for AC induction motors requiring variable speed and torque control.
Q2: What protection features does the drive include?
A2: It includes overcurrent, overvoltage, and overtemperature protection.
Q3: Can the drive be used in high ambient temperature environments?
A3: Yes, within defined industrial temperature specifications, with appropriate cooling.
Q4: How is the drive mounted?
A4: It is typically mounted inside an electrical cabinet or panel with adequate ventilation.
Q5: Is this drive suitable for continuous duty?
A5: Yes. It is engineered for continuous operation in industrial systems.
