Description
- Model: PDD205A1121
- Part Number: 3BHE025335R1121
- Brand: ABB (Switzerland)
- Application: Unitrol 6000 Excitation / MEGADRIVE-LCI
- Function: Pulse Distribution and Gate Driving for Power Thyristors
- Pulse Distribution: Converts optical or low-level electrical firing commands into high-energy gate pulses for power thyristors.
- Fiber Optic Interface: Typically features fiber optic inputs for signal isolation, ensuring that high-voltage transients from the power bridge cannot damage the control system.
- Monitoring: Includes integrated feedback circuitry to monitor the health of the thyristors and the presence of the firing pulse.
- Power Supply: Onboard DC/DC conversion to generate the necessary gate-drive voltage rails.
- Isolation: High galvanic isolation rating to withstand the potential difference between the thyristor cathodes and the control ground.
- Ruggedized Build: Designed for high-heat environments near the thyristor stacks, featuring high-grade electrolytic capacitors and specialized PCB coating.

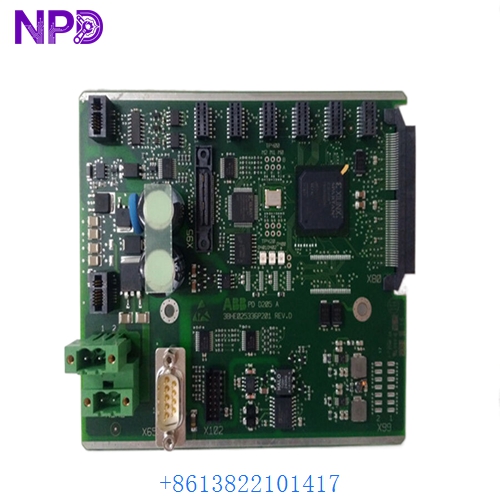

ABB PDD205A1121 3BHE025335R1121
ABB PDD205A1121 3BHE025335R1121
ABB PDD205A1121 3BHE025335R1121
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation: 20 minutes)
⚠️ DANGER: High Voltage / Stored Energy: The thyristor bridge and its associated DC bus can hold lethal charges even after the main breaker is opened.
- Verification: Use a high-voltage probe to verify the DC bus and AC input voltages are at 0V.
- Fiber Optic Care: Do not touch the tips of the fiber optic cables. Dust or skin oil can attenuate the signal, leading to “Misfire” or “Gate Pulse Fault” alarms.
- ESD Safety: Always use a grounded anti-static wrist strap; the gate drive logic is highly sensitive to static.
Phase 2: Removal & Replacement (Step-by-Step)
- Labeling: Carefully label the gate (G) and cathode (K) leads. Reversing these will prevent the thyristor from firing and could potentially damage the board.
- Fiber Optic Removal: Gently unclip the fiber optic cables. Use protective caps on the cable ends immediately after removal.
- Mechanical Removal: Unscrew the board from the mounting chassis. Check the standoffs for any signs of arcing or heat damage.
Phase 3: Commissioning
- Seating: Install the new PDD205A1121. Ensure all electrical and optical connections are secure and “clicked” into place.
- Control Power Test: Apply control power without applying main power to the bridge.
- Pulse Verification: If available, use a “Pulse Test” mode in the Unitrol software to verify that the board is generating the expected output signals.
- Final Check: Inspect the “Gate Drive Healthy” LEDs on the board.
Customer Cases & Industry Applications
Case 1: Eliminating “Overcurrent” Trips in a Gas Turbine A gas turbine’s excitation system was experiencing random overcurrent trips during load changes. Investigation showed that the original PDD205A1121 board had a failing pulse transformer, causing weak firing signals to one thyristor. This created an imbalance in the bridge. Replacing it with a New Surplus 3BHE025335R1121 board restored perfectly timed firing pulses and eliminated the trips.
Case 2: Emergency Response for an LCI Drive A massive MEGADRIVE-LCI used for starting a gas compressor failed when a gate driver board shorted out. Every hour of downtime cost the facility significant revenue. We provided a New Surplus unit from our Xiamen stock, delivering it within 48 hours. The “plug-and-play” nature of the PDD205A1121 allowed for a quick swap, getting the compressor back online ahead of schedule.
Frequently Asked Questions (FAQ)
Q: Is PDD205A1121 a direct replacement for PDD205A101? A: You must match the version 1121 (and the R-revision 3BHE025335R1121) exactly. Variations in these codes often indicate different pulse energy levels or feedback sensitivities required for specific thyristor models.
Q: Why does the board use fiber optics? A: Fiber optics provide total electrical isolation. Because the thyristor gates can be at a potential of several thousand volts relative to the controller, optical signals are the safest way to transmit firing commands without risk of high-voltage feedback.
Q: Why choose “New Surplus” over “Refurbished”? A: Gate driver boards are “power components” that live in high-heat zones. Refurbished boards have often been “heat-soaked,” leading to degraded insulation and tired capacitors. New Surplus ensures you are getting original factory insulation strength and 100% component life.
Q: Does it include the mounting hardware? A: Usually, it is the board assembly only. We recommend reusing your existing mounting standoffs and screws, provided they are free from corrosion.
