Description
- Model: ABB PDD500A101
- Part Numbers: 3BHE037649R0101 (Assembly) / 3BHE037650P201 (Sub-component)
- Brand: ABB (Asea Brown Boveri)
- Series: PCS6000 / ACS6000 / UNITROL 6000
- Core Function: Internal Power Distribution and Monitoring for high-power converters
- Product Type: Power Distribution Board (PDB)
- Key Specs: Multi-rail monitoring Integrated fuse protection High-isolation design
- Input Voltage: Typically 24 V DC or 110/220 V AC (Configurable based on converter frame)
- Output Channels: Distributes stabilized power to gate drivers (GDD/GDM) and control CPUs (AMC)
- Monitoring Capability: Real-time voltage sensing and “Power OK” feedback signals
- Protection: Onboard high-interrupting capacity (HIC) fuses and surge suppressors
- Isolation: Optimized for medium-voltage converter environments (Class G3 coating)
- Connectors: High-current pluggable terminal blocks for field reliability
- LED Indicators: Status LEDs for each power rail and fault detection
- Mounting: Snap-in DIN rail or standoff mounting within the control section

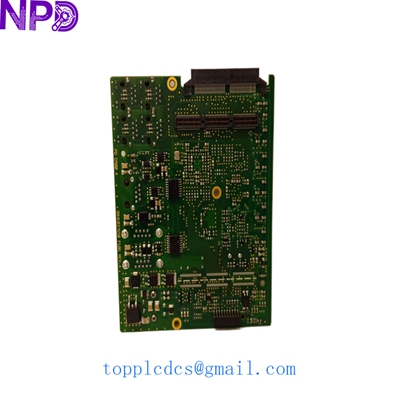

ABB PDD500A101 3BHE037649R0101 3BHE037650P201
Application Scenarios & Pain Points
The PDD500A101 is the “Power Dispatcher” within ABB’s high-end power electronics systems. In an ACS6000 or UNITROL 6000 setup, this board ensures that sensitive logic processors and high-energy gate drivers receive clean, uninterrupted power. The primary pain point with this module is “Voltage Sag” or “Internal Shorting” due to thermal stress. Because it sits at the intersection of high-power busbars and sensitive logic, it is vulnerable to electromagnetic interference (EMI) and transient spikes. If a single rail on the PDD500 fails, it can cause the entire converter to report a “Control Power Failure,” resulting in a total trip of the drive or excitation system.
Typical Application Scenarios:
- Wind Power Converters: Managing power distribution in the PCS6000 grid-tie converters for offshore wind turbines.
- Marine Propulsion: Distributing control power for large-scale azipod drives on cargo ships.
- Static Var Compensators (SVC): Powering the control heart of grid stability equipment.
- Medium Voltage Drives: Used in the ACS6000 series for mining hoists and water pumps.
Case Study: The “Mystery” Control Trip
Background: A massive wind farm using ABB PCS6000 converters was experiencing intermittent “Control Hardware Faults” during high-wind events. The errors were logged as CPU communication losses, but the CPUs themselves tested healthy.
The Problem: Upon closer inspection, we discovered that the PDD500A101 board had a hairline crack in a solder joint near the 5V regulator. During the vibration of high-wind operation, the contact would break for microseconds—not long enough to blow a fuse, but long enough to reboot the control CPU.
The Solution: We provided a replacement PDD500A101 (3BHE037649R0101). Before shipping, we put the board through a “Vibration & Soak” test, where it was subjected to mechanical oscillation while under a 100% current load.
The Result: The intermittent trips stopped immediately. The client now includes a PDD500 inspection in their annual preventative maintenance schedule to look for thermal discoloration or mechanical wear.
ABB PDD500A101 3BHE037649R0101 3BHE037650P201
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Effort Level |
| PDD500A101 | PDD500A102 | ✅ Direct Replace | Updated revision with newer filter caps | Zero (Plug and Play) |
| 3BHE037649R0101 | 3BHE022293R0101 | ⚠️ Software Compatible | Earlier series; check dimensions | Medium (Check space) |
| PDD500A101 | PDD508 Series | ❌ Incompatible | Designed for smaller frame converters | High (Do not use) |
SOP & Quality Transparency
Power distribution electronics require a “Live Load” validation process. We don’t just check for continuity; we check for performance.
- Multi-Rail Load Test: We apply a variable load to every output channel simultaneously to ensure the board handles its rated current without voltage droop.
- EMI Shielding Audit: We verify the integrity of the ground planes and shielding to ensure the board won’t be affected by the massive magnetic fields inside a converter.
- Fuse Integrity Sweep: We physically inspect and electrically test all onboard fuses. We only ship boards with fresh, high-quality protection components.
- Thermal Imaging: Under full load, we use an infrared camera to ensure there are no “hot spots” on the PCB traces or connectors.
- Safe-Arrival Packaging: Each PDD500 is vacuum-sealed in a moisture-barrier bag with an ESD indicator to ensure it arrives in “Factory Fresh” condition.
ABB PDD500A101 3BHE037649R0101 3BHE037650P201
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to PDD500 | Quick Check |
| Control System Blackout | Main Input Fuse Blown | ✅ High | Check the primary input terminals on the PDD500. |
| “Control Power 24V” Alarm | Voltage Regulator Fail | ✅ High | Measure the 24V output rail with a multimeter. |
| Intermittent “Comm Loss” | Noisy Power Supply | ✅ High | Use an oscilloscope to check for AC ripple on the DC rails. |
| LED 1 is Green, LED 2 is Off | Sub-Circuit Fuse Blown | ✅ High | Identify the specific output fuse (e.g., F2) and replace if open. |
Engineer’s Field Note: ❗ Check your Terminal Torque. When installing the PDD500A101, ensure your terminal screws are torqued to the manufacturer’s spec (typically 0.5-0.6 Nm). Loose connections on power distribution boards create heat, which leads to oxidized terminals and eventual “Meltdown” failures that can damage the wiring harness.
Additional Inventory Models
Maintaining a PCS6000 or UNITROL system? We have these ABB parts ready:
- ABB PM866K01 Processor Unit
- ABB AMC34 Controller Control Board
- ABB GDD471A001 Gate Drive Board
- ABB 3BHE024577R0101 Power Module
- ABB AI810 3BSE008516R1 Analog Input
- ABB PDD500A101 (This Model)
- ABB CI854A Profibus Interface
- ABB SD832 Power Supply 24V/10A
For technical support or to request an urgent quote, visit www.newplcdcs.com.
