Description
Product Specifications
- Origin: Switzerland
- Weight: 1.28 lbs (0.58 kg)
- Dimensions: 9.2 inches x 4.8 inches x 1.2 inches
- Series: AC 800PEC / UNITROL 6000
- Function: Drive and peripheral interface for high-speed control signal processing.
- Part Number: 3BHE037649R0101
- Interface: High-density I/O connectors and internal bus communication for power electronic control.
The ABB PDD500A101 is a high-performance interface module within the AC 800PEC (Power Electronic Controller) family. It is specifically designed to facilitate the rapid exchange of control and diagnostic data between the main controller and specialized power conversion hardware, such as frequency converters or excitation units. The PDD500A101 acts as a localized intelligence node, offloading time-critical tasks—including pulse-width modulation (PWM) calculations and high-speed protection monitoring—from the central processor. This ensures that the control system can respond to transient load changes or fault conditions in the microsecond range, which is essential for protecting large-scale power equipment.

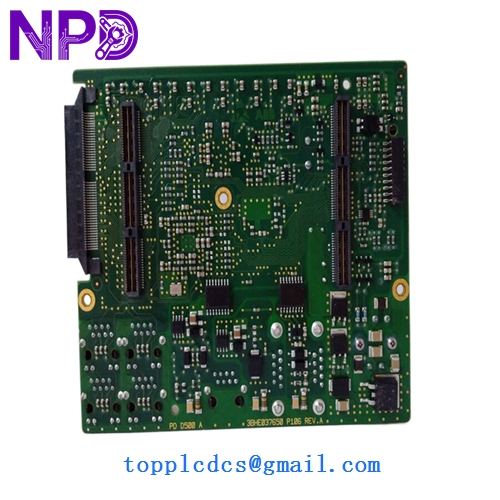

ABB PDD500A101 3BHE037649R0101

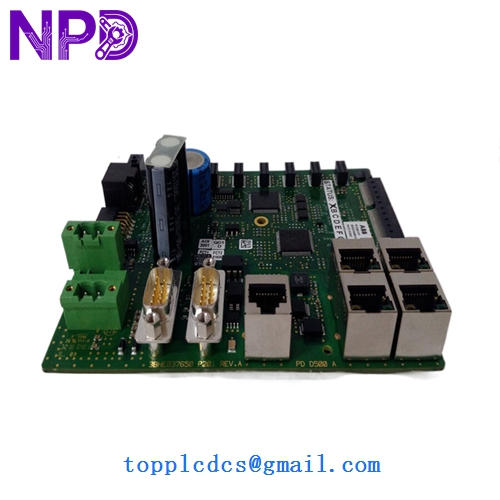

ABB PDD500A101 3BHE037649R0101
ABB PDD500A101 3BHE037649R0101
Model Comparison: PDD500A101 vs. Similar Models
The PDD500A101 (3BHE037649R0101) is a modernized iteration of the PDD500 series, featuring the “A101” hardware configuration. Compared to the PCD or PEC processor modules, the PDD series is more focused on the physical drive interface and signal conditioning. While the PDD500A102 variant may offer different I/O counts or specialized fiber-optic transceiver ratings, the A101 version is the standard configuration for UNITROL 6000 systems. This specific revision (R0101) incorporates improved component longevity and better resistance to the high thermal stress found in enclosed power electronic cabinets compared to earlier prototype or “R0001” versions.
Operational Guidelines
- Subrack Alignment: When installing into the AC 800PEC subrack, ensure the module is aligned perfectly with the guide rails. Forcing the module can bend the high-density backplane pins, leading to catastrophic system failure.
- Diagnostic LEDs: Monitor the status LEDs upon power-up; a green “RUN” LED indicates the module has successfully loaded its FPGA firmware from the master controller. A flashing red “ERR” light typically indicates a failure in the local power regulation or an internal hardware self-test failure.
- Cooling Path: Ensure that the cabinet’s forced-air cooling system is clear. The PDD500A101 contains high-speed logic chips that generate localized heat; blocked air filters can lead to intermittent “Over-Temperature” trips.
- Firmware Consistency: This module relies on hardware-level logic programmed by the controller. If the central AC 800PEC firmware is upgraded, verify that the PDD500A101 logic is also updated to prevent version mismatch errors during the synchronization phase.
