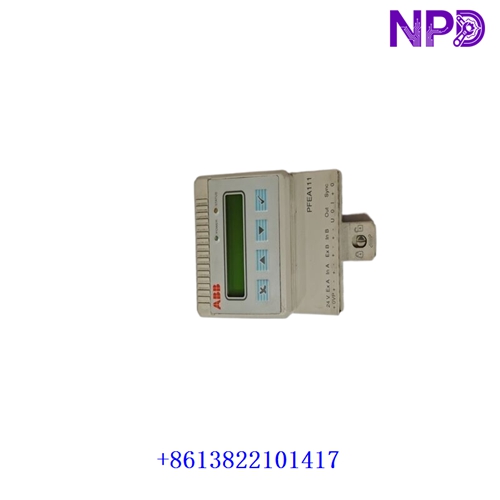

ABB PFEA111-20 | 3BSE028140R0020 | STRIP TENSION CONTROLLER / ELECTRONICS UNIT

Description

Hardware Specifications

• Manufacturer: ABB
• Model Number: PFEA111-20
• Part / Ordering Number: 3BSE028140R0020
• Product Series: MillLine / Stressometer Web Tension Systems
• Module Type: Tension Electronics / Tension Controller Unit (2-Channel version)
• Power Supply: 24 V DC (20 to 30 V DC) industrial supply
• Inputs: Compatible with ABB Pressductor load cells (up to 2 channels)
• Outputs: Analog current/voltage outputs (e.g., 0–10 V, 4–20 mA) for tension indication and control loops
• Communication Interfaces: Built-in panel displays, fieldbus options, and serial communication ports depending on firmware version
• Enclosure / Mounting: DIN-rail or wall-mount housing designed for industrial control cabinets
• Approximate Weight: ~1.2 kg

Installation & Configuration Guidelines

• Mounting Requirements: Install the unit vertically on a standard DIN-rail or backplate inside a sealed electrical control cabinet, ensuring adequate airflow around the housing to prevent thermal buildup.
• Wiring & Grounding: Use heavily shielded cables for load cell connections. Terminate cable shields cleanly to the designated EMC grounding bars on the unit to protect against electrical noise in heavy industrial environments.
• Power Supply Check: Verify that the incoming auxiliary DC power supply is stable and delivers the proper voltage (24 V DC nominal) before energizing the device.
• Calibration: Perform zero and span calibration according to the load cell ratings and mechanical roll weight using the built-in keypad/display or configuration software.

Maintenance & Troubleshooting

• Diagnostic Indicators: Monitor the front-panel LED status indicators and built-in display for system health, error codes, or channel fault warnings.
• Zero Drift / Calibration Shift: If tension readings drift or show offset errors, inspect load cell mechanical linkages for debris or mechanical binding, and re-verify electrical zero settings.
• Communication or Output Loss: Check analog output wiring terminals and verify that loop power is active if utilizing 4–20 mA current loops.

Safety & Handling

• Power Isolation: Disconnect external DC power before servicing terminal blocks, wiring harnesses, or replacing the unit.
• Qualified Personnel: Installation, wiring, and tension calibration must be performed exclusively by certified electrical and instrumentation engineers.
• ESD Protection: Observe standard electrostatic discharge precautions when handling the internal circuit boards or connecting interface cables.
