Description
- Model: PFEA111-65 (3BSE050090R65)
- Brand: ABB (Sweden)
- Series: Tension Electronics (Pressductor Technology)
- Core Function: Interfaces with load cells to monitor and transmit web tension data
- Product Type: Tension Electronics Unit (IP65 Version)
- Key Specs: Supports 2 Load Cells | 4-20mA Output | Profibus DP Support | IP65 Housing
- Load Cell Support: Up to 2 ABB Pressductor load cells (Pillar, Radial, or Large Radial)
- Output Signals: 4–20 mA (Analog) and Profibus DP (Digital)
- Input Power: 24 V DC (18–36 V range)
- Enclosure Rating: IP65 (Dust-tight and protected against water jets)
- Resolution: 14-bit A/D conversion
- Step Response: < 5 ms
- Display: Integrated 2-line back-lit display for local monitoring and setup
- Calibration: Digital calibration via front panel; no potentiometers required
- Diagnostic Features: Detects load cell cabling faults and internal errors

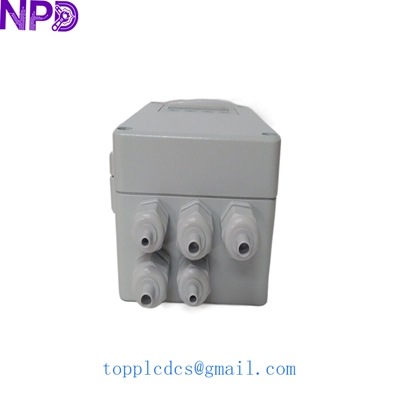

ABB PFEA111-65 3BSE050090R65
Application Scenarios & Pain Points
Engineering Pain Points: In the world of web processing, the biggest “gotcha” for the PFEA111-65 is Mechanical Alignment vs. Tare. If the load cells are not mounted perfectly level, or if the “wrap angle” of the web changes, the electronics will show an offset. The PFEA111 series is excellent at “Taring” (zeroing) out the weight of the roller, but if your mechanical roll is out of balance, you’ll see a rhythmic oscillation in the 4-20mA signal that software filters can’t always fix.
Typical Application Scenarios:
- Paper & Pulp Mills Monitoring the tension of the paper web at the dry end or the winder to prevent “web breaks.”
- Metal Rolling & Slitting Controlling the tension of steel or aluminum strips during cold rolling or precision slitting operations.
- Converting & Packaging Ensuring consistent tension in plastic film or foil laminating processes.
- Textile Industry Managing the tension of fabric during high-speed dyeing or finishing.
The “Ghost Vibration” Case Study
Background: A steel slitting facility in East Asia was experiencing erratic tension readings on their PFEA111-65 system. The HMI showed the tension “jumping” by 10% every few seconds.
Problem: We checked the IP65 enclosure. While the module was clean, the load cell cables were run in the same conduit as a 400V VFD power line. The “Pressductor” signal is very high-impedance and was picking up the electromagnetic switching frequency of the drive.
Solution: We rerouted the load cell cables into a separate, grounded steel conduit and ensured the shield was only grounded at the PFEA111 end.
Result: The tension signal became rock-solid. Integrator’s Lesson: Even with the robust IP65 protection, the low-level signals from the load cells are vulnerable to EMI. Always keep signal and power cables separated by at least 300mm.

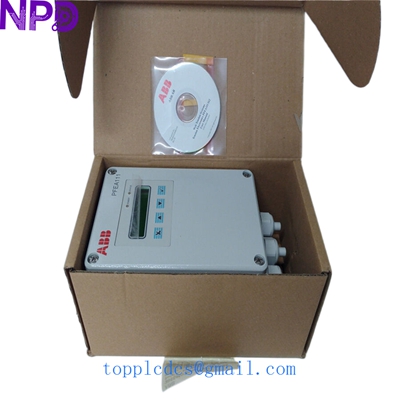

ABB PFEA111-65 3BSE050090R65
Compatible Replacement Models
| Original Model | Related/Replacement | Compatibility | Note |
| PFEA111-65 | PFEA111-20 | ⚠️ Limited | IP20 version; requires a cabinet/enclosure |
| PFEA111-65 | PFEA112-65 | ✅ Upgrade | PFEA112 adds advanced features like “gain scheduling” |
| PFEA111-65 | 3BSE050090R20 | ❌ Incompatible | This is the IP20 hardware revision |
Integrator’s Tip: The “-65” in the part number is critical. It refers to the IP65 field-mount housing. If you are replacing a unit mounted directly on a machine frame, do not buy the “-20” version, or you’ll have to build a custom enclosure to protect it from the environment.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related Part | Action |
| “Load Cell Error” | Broken Cable / Bad Cell | ❌ Field | Measure resistance of load cell coils (approx. 1-2Ω) |
| Profibus Comm Fail | Incorrect Station ID | ⚠️ Medium | Verify the Profibus address in the PFEA menu |
| Signal Drift | Mechanical Binding | ❌ Roller | Check if the roller bearings are seized or rubbing |
| Display Blank | Power Supply Issue | ✅ PFEA111 | Check for 24V DC at terminals 1 and 2 |
Field Note: …When you’re calibrating this unit, use the “hanging weight” method if possible. Don’t just trust the calculated wrap-angle math. Hanging a known weight (like a 20kg barbell) over the center of the roll is the only way to be 100% sure your HMI matches reality.

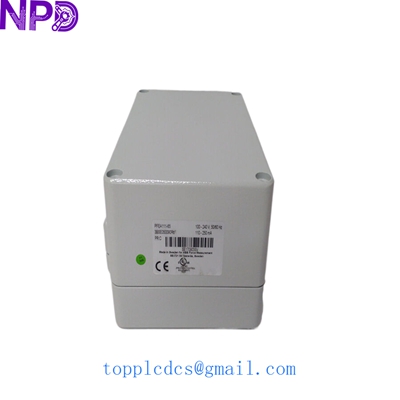

ABB PFEA111-65 3BSE050090R65
Strategic Quality Assurance (Our SOP)
- Load Cell Simulation: We use an ABB load cell simulator to verify that the PFEA111-65 correctly interprets signal changes across the full range.
- Profibus Connectivity Test: The module is connected to a Siemens S7-300 master to ensure the GSD file and data exchange are functional.
- Enclosure Integrity: We verify the IP65 gaskets and cable glands are intact to ensure moisture protection.
- 4-20mA Linearity: We verify the analog output at 4, 12, and 20 mA using a precision multimeter.
