Description
- Model: ABB PFEA112-65 (Part No: 3BSE050091R65)
- Brand: ABB (Sweden)
- Series: Tension Electronics PFEA Series (Tension-PF)
- Core Function: High-performance tension measurement and control electronics
- Product Type: Tension Controller / Signal Conditioner
- Key Specs: IP65 protection, Profibus-DP support, Dual load cell input, 24 V DC power
- Input Channels: 2 (For connecting two load cells, usually one on each side of the roll)
- Communication: Integrated Profibus-DP (Up to 12 Mbit/s)
- Analog Outputs: 2 x 0–10 V or 4–20 mA (Scalable for tension and individual load cell signals)
- Digital Outputs: 4 Configurable for Alarms/Status
- Digital Inputs: 2 (Typically used for Zeroing/Calibration control)
- Protection Class: IP65 (Dust-tight and protected against water jets—suitable for mounting near the process)
- Power Supply: 24 V DC (18–36 V range)
- Load Cell Compatibility: Works with ABB Pressductor® PillowBlock and Radial Load Cells
- Display: Integrated 2-line x 16-character backlit LCD for local monitoring
- Operating Temp: 0 to +55 °C

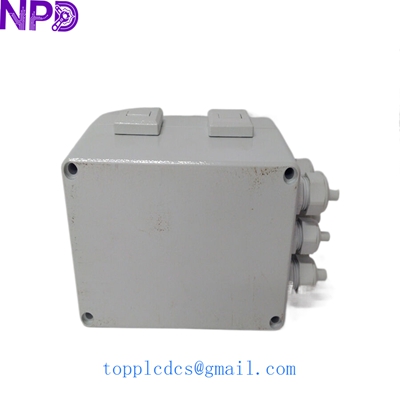

ABB PFEA112-65 3BSE050091R65
Application Scenarios & Pain Points
The ABB PFEA112-65 is the brain behind high-accuracy web tension systems. It takes the tiny, millivolt-level signals from Pressductor load cells and converts them into rock-solid tension data for the PLC. Its IP65 rating means it doesn’t need to hide inside a clean room; it can be mounted directly on the frame of a paper machine or steel rolling line.
Typical Application Scenarios:
- Pulp & Paper – Wire and Press Sections Ensuring constant web tension to prevent paper breaks during high-speed winding and drying.
- Metals Industry – Cold Rolling Mills Managing high-tension feedback for strip processing and pickling lines.
- Converting & Printing Maintaining tension stability across various substrates (film, foil, paper) during multi-color printing.
- Textiles – Dyeing & Finishing Synchronizing drive speeds based on fabric tension to ensure uniform color application.
The “Calibration Drift” Mystery:
A frequent issue I see is reported “drift” in tension readings. Often, it isn’t the 3BSE050091R65 failing; it’s mechanical binding in the roll bearings or a loose load cell mount. Before replacing the electronics, use the “Zero” function through the local display while the roll is completely free of the web. If the zero point holds but the reading is erratic under load, check for electromagnetic interference (EMI) on the Profibus cable—ensure the shield is grounded only at one end.
Compatible Replacement Models
The PFEA112 series has several versions. The “-65” suffix indicates the IP65 field-mount version.
| Original Model | Replacement Model | Compatibility | Main Difference | Impact |
| PFEA112-65 | PFEA112-20 | ⚠️ Software Compatible | IP20 (Cabinet mount) | Cannot be mounted in wet areas |
| PFEA112-65 | PFEA111-65 | ❌ Incompatible | No Profibus-DP | Cannot talk to PLC network |
| PFEA112-65 | PFEA113-20 | ⚠️ Software Compatible | Advanced logic features | Overkill for simple loops |
Engineering Note: If you are upgrading from an older PFEA111 to the PFEA112-65, you must update your GSD files in the Profibus master (e.g., Siemens S7 or ABB AC800M) to enable the cyclic data exchange for tension values.

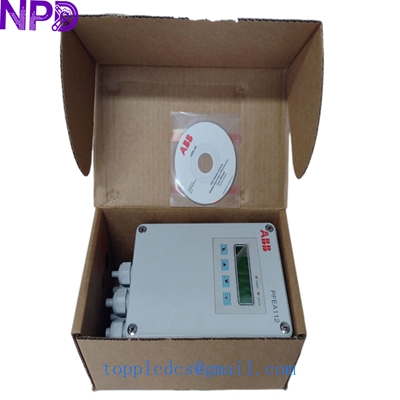

ABB PFEA112-65 3BSE050091R65
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to This Board | Quick Check | Action |
| Display Blank | Power Input Failure | ❌ Low | Measure 24 V DC at terminals | Check fuse/power supply |
| “Load Cell Error” | Wiring / Open Circuit | ⚠️ Medium | Check resistance of load cells | Tighten connections/replace cell |
| Profibus Red LED | Address Mismatch | ✅ High | Check DIP switches vs. PLC config | Set correct node address |
| Reading “Pegged” Max | Scaling Error | ✅ High | Verify gain settings in menu | Re-calibrate with test weight |
Our 4-Step Quality Assurance Process:
- Physical Audit: We verify the IP65 seals and cable glands are intact to ensure moisture protection.
- Post-Test: The unit is powered and the LCD contrast is verified for clarity.
- Simulation Test: We use a millivolt generator to simulate load cell inputs and verify the 4-20 mA output response is linear.
- Network Check: The Profibus port is tested against a master simulator to ensure the GSD configuration loads correctly.
For a technical quote or the Profibus GSD files: Visit www.newplcdcs.com
