Description
The ABB PFEA113-20 (3BSE028144R0020) is a high-performance Web Tension Electronics Module designed for precise tension measurement and control applications. It is part of the ABB Pressductor® tension control product family and is widely used in paper machines, converting equipment, printing systems, rolling mills, and industrial web handling applications.
The module receives signals from ABB load cells such as PFCL, PFTL, and PFRL series, processes tension measurement data, and provides analog outputs and fieldbus communication for integration with PLC, DCS, and drive control systems. The PFEA113-20 supports four load cell inputs, adjustable filtering, and PROFIBUS DP communication for industrial automation environments.
Designed for stable and accurate tension regulation, the PFEA113-20 helps maintain material quality by controlling web tension during continuous production processes. It is commonly installed in existing ABB automation systems as a replacement or maintenance spare.

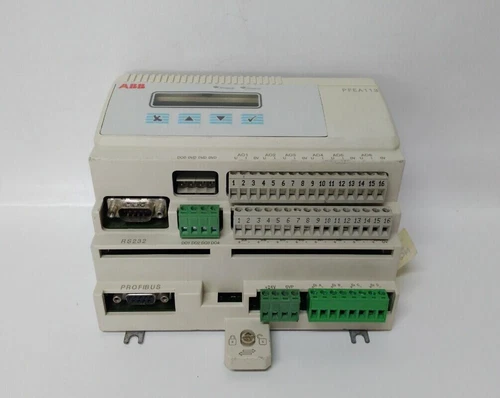

PFEA113-20 3BSE028144R0020
🔹 Product Parameters Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | PFEA113-20 |
| Part Number | 3BSE028144R0020 |
| Series | ABB Tension Electronics / Pressductor® Series |
| Product Name | Web Tension Electronics Module |
| Origin / Place of Origin | Sweden |
| Product Status | New Surplus / Tested Used / Refurbished Spare |
| Dimensions | Approx. 120 mm × 80 mm × 160 mm |
| Weight | Approx. 1.05 kg |
| Power Requirement | 24 VDC (18–36 VDC) |
| Sensor Inputs | 4 Load Cell Inputs |
| Communication Interface | PROFIBUS DP |
| Discontinued Status | Legacy Product, Available as Replacement Spare |
🔹 Technical Features
🔸 Designed for ABB web tension control systems
🔸 Supports four load cell measurement inputs
🔸 Compatible with ABB Pressductor® load cells
🔸 Provides high-precision tension measurement
🔸 Supports 0–10 V and 4–20 mA analog outputs
🔸 Built-in PROFIBUS DP communication interface
🔸 Adjustable signal filtering for unstable production environments
🔸 Supports PLC and DCS integration
🔸 DIN rail installation design
🔸 Suitable for paper, film, foil, steel, and textile processing equipment
🔹 Common Questions & Answers
Q: What is the main function of ABB PFEA113-20?
A: The PFEA113-20 measures web tension signals from load cells and converts them into control signals for industrial tension regulation systems.
Q: Which sensors are compatible with PFEA113-20?
A: It supports ABB Pressductor® load cells including PFCL, PFTL, and PFRL series sensors.
Q: Is PFEA113-20 a PLC CPU module?
A: No. It is a dedicated tension measurement and control electronics module used in industrial automation systems.
Q: What communication protocol does this module support?
A: The PFEA113-20 supports PROFIBUS DP communication for connection with PLC and control systems.
Q: What are common application areas?
A: It is commonly used in paper production lines, printing machines, coating lines, rolling mills, and other continuous web processing equipment.
Q: What should be checked before replacement?
A: Verify the complete ABB part number, load cell type, power supply, PROFIBUS address, analog output configuration, and existing tension control parameters before installation.
Q: What common problems may occur?
A: Typical issues include incorrect tension readings, unstable signals, communication alarms, sensor faults, or incorrect parameter settings.
