Description

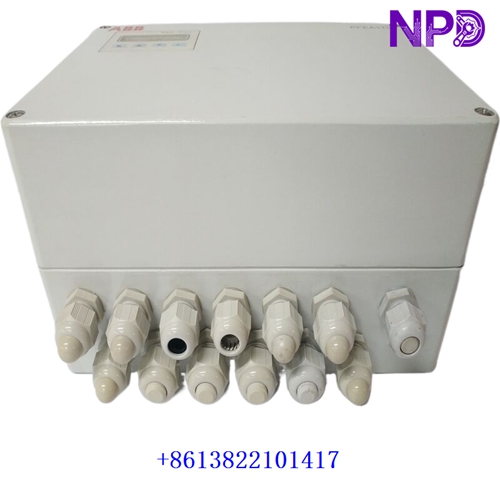

The ABB PFEA113-65 (Product ID: 3BSE050092R65) is an advanced tension electronics module designed for high-precision web tension measurement, control, and signal processing in industrial automation environments. Below are the core technical parameters governing its physical and operational characteristics:
- Brand: ABB
- Model: PFEA113-65 (3BSE050092R65)
- Series: ABB Tension Electronics / Web Monitoring Line
- Product Name: Tension Electronics / Load Cell Controller
- Origin Country: Sweden
- Physical State: Solid State Electronic Module (IP65 Enclosure Protection)
- Dimensions: Approx. 34.5 cm x 25 cm x 17.5 cm (Package/Unit scale)
- Weight: Approx. 6.0 kg
- Place of Manufacture: ABB Industrial Automation Facilities
- Power Requirement / Consumption: Standard industrial supply voltage (Supports 4 load cells input, featuring insulation amplifier connected to AO1 with voltage/current configurable analog outputs)
► Operation Specifications & Usage Methods
Proper initialization and configuration ensure optimal measurement accuracy and stable web handling performance:
- Verify that incoming power and wiring connections match technical specifications before energizing the unit.
- Connect up to four load cells to the designated input terminals and configure the six selectable analog outputs (V/C) according to control requirements.
- Utilize the built-in display to monitor total sum, difference, and individual sensor signals, while configuring digital communication via Profibus-DP.
⚠ Emergency Shutdown Operation
In the event of a critical plant emergency, system fault, or electrical hazard, execute the following protocol:
- Cut off the primary power feed to the unit using the main control panel circuit breaker or emergency switch.
- Follow established facility safety guidelines to halt associated mechanical web drives, winders, or processing lines safely.
- Alert the automation maintenance engineering team and check internal diagnostic error codes prior to any restart attempt.
⚙ Troubleshooting & Common Issues
System diagnostic features help quickly identify and isolate operational issues:
- If the module fails to initialize or power up, inspect input power connections and check external terminal wiring continuity.
- If communication errors occur on the Profibus-DP network, verify network address settings, cable shielding, and termination integrity.
- If erratic tension readings appear, inspect load cell physical connections, check for mechanical binding on rolls, and review calibration offsets via the display interface.
🛠 Routine Maintenance & Servicing
Preventative maintenance ensures prolonged equipment reliability and precise measurement performance:
- Conduct periodic visual inspections of the enclosure seals, terminal blocks, and mounting brackets to ensure no environmental degradation or loosening from vibration occurs.
- Verify calibration periodically using certified test procedures or calibration check functions to maintain web tension accuracy.
- Keep system firmware and configuration parameters backed up to expedite recovery during lifecycle hardware replacements.
❓ Frequently Asked Questions (Q&A)
- Q1: What is the primary application of the PFEA113-65 module?
- A1: It is designed for industrial web tension monitoring and control, commonly utilized in segmented roll applications such as winders, unwinders, and processing lines.
- Q2: How many load cells can a single PFEA113 unit support?
- A2: A single unit can supply and process input from up to four load cells, and multiple units can be combined to handle up to 12 load cells in complex segmented applications.
- Q3: What communication interface does this device support?
- A3: It features built-in Profibus-DP communication capabilities alongside multiple analog and digital inputs/outputs for seamless DCS integration.
