Description
The ABB PFSA140 (3BSE003816R1) is a high-precision Tension Electronics module designed for use with Pressductor® PillowBlock load cells. This unit acts as the intelligent interface that processes millivolt signals from web tension transducers into standardized analog and digital outputs. Optimized for industrial environments like paper mills and steel processing lines, the PFSA140 ensures accurate web tension measurement, which is critical for preventing material breakage and maintaining product quality during high-speed winding and unwinding processes.
Product Specifications
- Model Identification: ABB PFSA140 (Part Number: 3BSE003816R1)
- Load Cell Compatibility: Optimized for ABB Pressductor® transducers
- Input Channels: Supports up to 2 load cells (A and B)
- Output Signals: 0-10V or 0/4-20mA (Configurable analog outputs)
- Communication: RS-232/RS-485 and optional Profibus DP interface
- Power Supply: 24V DC (18-36V DC range)
- Dimensions: 160 mm x 120 mm x 55 mm
- Weight: 0.60 kg
- Country of Origin: Sweden

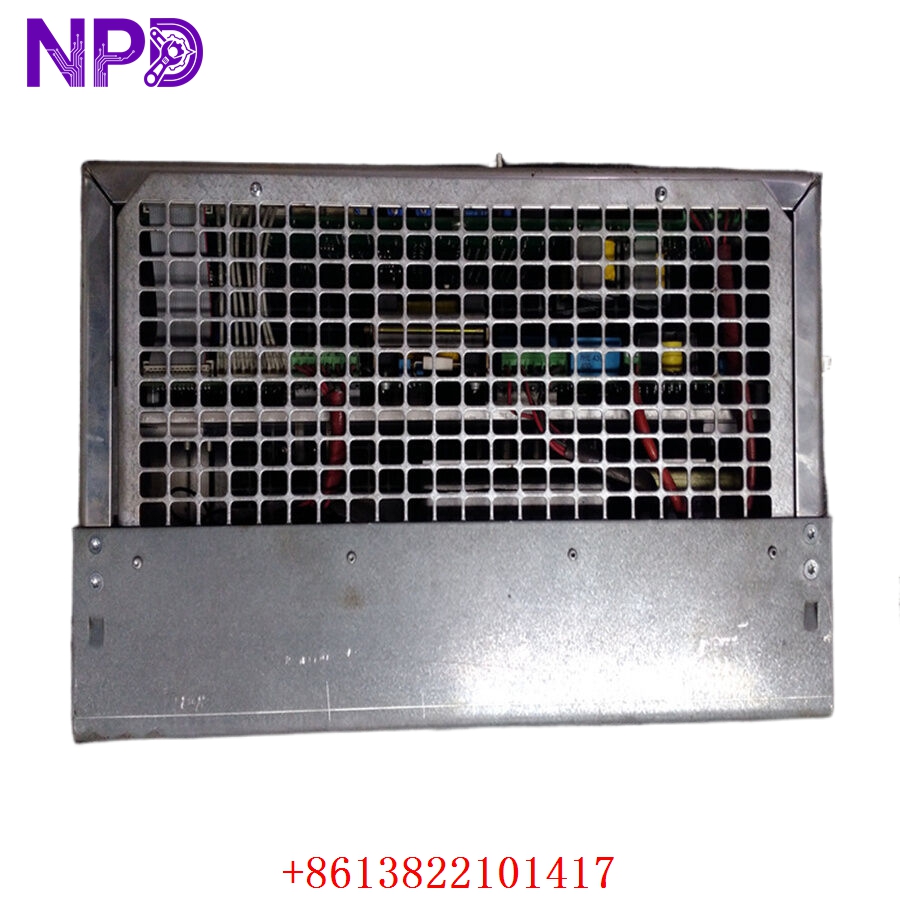

ABB PFSA140 3BSE003816R1

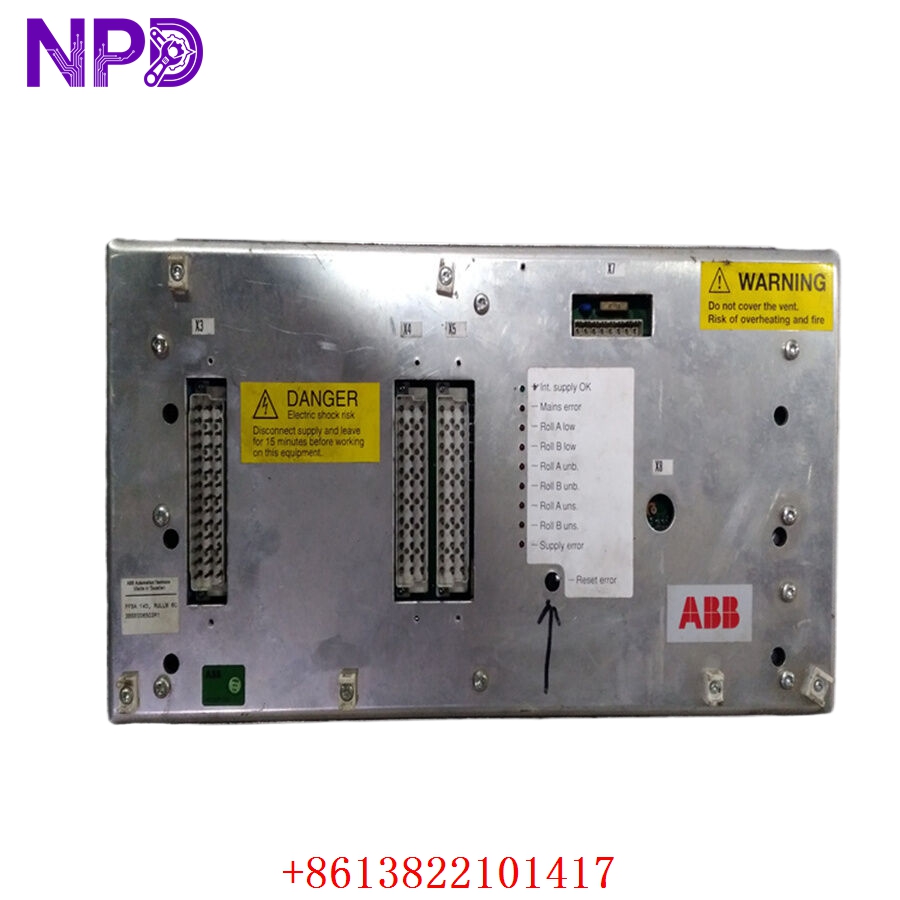

ABB PFSA140 3BSE003816R1
ABB PFSA140 3BSE006503R1
Application Fields
The ABB PFSA140 is a staple in industries where continuous material webs are processed:
- Pulp & Paper: Measuring wire, press, and dryer section tension to prevent paper breaks.
- Metals Industry: Controlling strip tension in rolling mills and pickling lines.
- Converting & Printing: Managing tension for plastic films, foils, and high-speed printing presses.
- Textile Industry: Ensuring uniform tension during fabric dyeing and finishing.
- Rubber & Plastics: Monitoring tension in tire cord production and film extrusion.
Product Operation Instructions
- Mechanical Installation: Mount the PFSA140 on a standard DIN rail within a protected electrical enclosure. Ensure the unit is grounded correctly to the sub-panel to minimize electrical noise.
- Transducer Connection: Connect the ABB load cells to the input terminals. Use high-quality shielded twisted-pair cables to protect the low-level signals from EMI.
- Calibration: Perform a “Zero Set” with no tension on the web, followed by a “Span Calibration” using a known weight or the internal calibration signal. This can be done via the front panel keys or through a connected PC.
- Output Configuration: Select the desired output range (e.g., 4-20mA) for your PLC or DCS input. Adjust the damping (time constant) to smooth out high-frequency vibrations in the tension signal.
- Monitoring: Use the built-in display to view real-time tension values. If an error occurs, the unit will display a diagnostic code indicating issues like “Open Circuit” or “Transducer Overload.”
Q&A: Common Questions
Q: Can the PFSA140 calculate the total tension and the difference between sides? A: Yes, the unit can be programmed to output the total tension (A+B) or individual signals to detect if a web is pulling more toward one side (A-B).
Q: What is the benefit of Pressductor® technology over standard strain gauges? A: Pressductor® sensors are based on the magneto-elastic effect. They are exceptionally rugged, have high overload tolerance, and provide a much stronger output signal than traditional strain gauges, making them ideal for heavy-duty industrial use.
Q: Is the 3BSE003816R1 version compatible with Profibus? A: The base PFSA140 unit provides analog and serial outputs. Profibus functionality usually requires an additional communication module or a specific sub-variant of the PFSA140 hardware.
