Description
- Model: ABB PFSK142 3BSE006505R1
- Brand: ABB
- Series: AC800M / Advant Controller Integration Line
- Core Function: Field signal interface & system expansion
- Type: I/O Interface / Communication Module
- Key Specs: 24 V DC supply · Backplane bus communication · DIN rail mounting

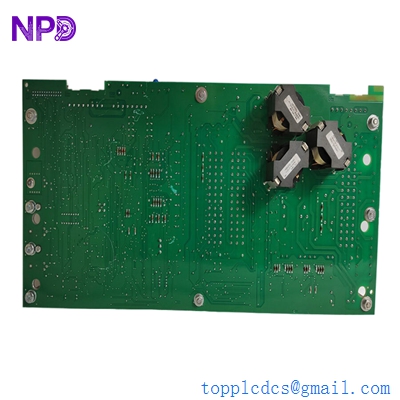

ABB PFSK142 3BSE006505R1
Key Technical Specifications
- Rated Supply Voltage: 24 V DC (±10%)
- Current Consumption: Approx. 250 mA @ 24 V DC
- Backplane Interface: AC800M CEX bus / expansion bus
- Communication Type: Internal system bus communication
- Mounting Type: DIN rail (35 mm standard rail)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Protection Class: IP20 (cabinet installation required)
- Dimensions: Approx. 120 mm × 40 mm × 135 mm
- Weight: Approx. 0.4 kg
- Isolation Rating: 500 V galvanic isolation (field to logic)
In my experience integrating AC800M systems, this module “plays well with” standard ABB controller racks when firmware alignment is correct. It does not require a gateway when used inside native ABB architecture. However, cross-platform integration (for example with Siemens S7 via Modbus TCP) requires configuration at controller level, not at this module.
Decision Advice:
If your current rack is AC800M and operational, stay within identical model. Migration only makes sense during full system modernization.

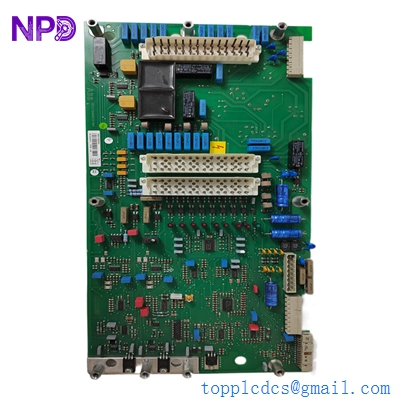

ABB PFSK142 3BSE006505R1
6️⃣ Troubleshooting Quick Reference
| Fault Symptom | Likely Cause | Spare Relevance | Quick Check Method | Action |
|---|---|---|---|---|
| No LEDs after power-up | 24 V supply failure | ❌ Low | Measure terminals with multimeter (should read 24 V ±10%) | Check power module first |
| CPU RUN but I/O frozen | Bus interface failure | ✅ High | Check diagnostic buffer for CEX timeout | Replace module |
| Intermittent communication | Loose backplane contact | ⚠️ Medium | Reseat module, inspect connector pins | Clean & reseat |
| ERR LED steady red | Internal hardware fault | ✅ High | Power cycle once; if persists → confirm via diagnostics | Replace |
| Random reboots | Power fluctuation | ⚠️ Medium | Measure DC stability under load | Stabilize PSU before replacing |
