Description
- The ABB PFSK151 (3BSE018876R1) is a high-precision signal processing module designed for ABB’s specialized industrial electronics and tension measurement systems. It functions as a core interface for Millmate Force Measurement (PFEA) controllers, converting raw transducer signals into standardized analog or digital data for accurate process monitoring and tension control.
Product Parameters
- Module Type: Signal Processing / Interface Board
- Input Channels: Dual-channel support for load cells
- Excitation Voltage: 5 VDC / 10 VDC (Configurable)
- Frequency Response: 0.5 to 100 Hz
- Power Supply: +24 VDC (Nominal)
- Signal Output: 0-10V, 4-20mA, or Profibus (System dependent)
Product Specifications
- Origin: Sweden
- Discontinued Status: Active / Supported
- Weight: 0.38 kg
- Dimensions: 210 x 145 x 30 mm
- Datasheet: Available upon request

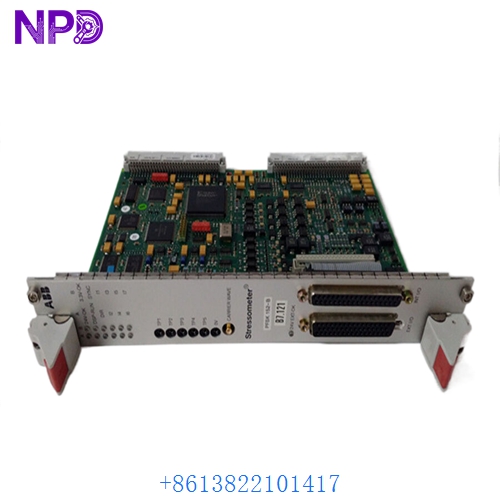

ABB PFSK151 3BSE018876R1

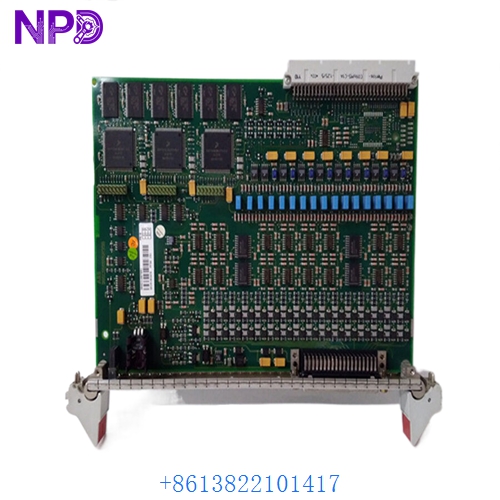

ABB PFSK151 3BSE018876R1
ABB PFSK151 3BSE018876R1
Application Fields
- Metal Rolling Mills: Real-time strip tension measurement and control.
- Paper & Pulp: Web tension monitoring on high-speed paper machines.
- Converting Lines: Precise force measurement for coating and laminating.
- Material Handling: Load monitoring for heavy-duty industrial weighing.
Product Q&A
Q: Is the PFSK151 used as a standalone controller? A: No, it is typically an internal component or a specific interface board that works within a larger PFEA or MasterPiece control rack.
Q: Does this board support digital communication protocols? A: It is primarily designed for high-speed signal conditioning, but it can interface with fieldbus modules like Profibus-DP when integrated into the Millmate system.
Q: How do I calibrate the load cells connected to this board? A: Calibration is usually performed through the HMI or the main Millmate controller software, which adjusts the gain and offset values stored on the PFSK151.
