Description

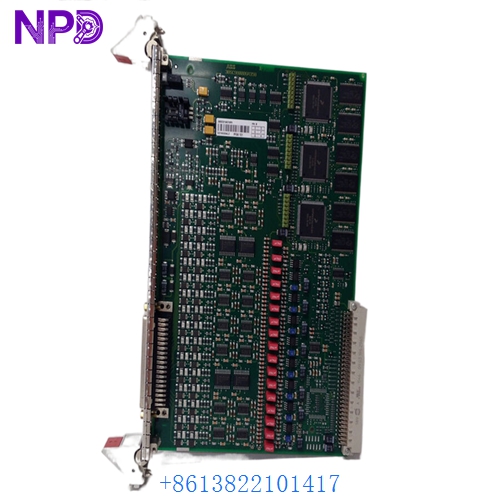

The ABB PFSK151 (Part Number 3BSE018876R1) is a specialized Signal Processing and Interface Board primarily used within ABB’s high-power electronics and excitation systems, such as the UNITROL and MEGADRIVE series. It serves as an essential link between control electronics and power semiconductor modules.
Product Parameters (Datasheet)
- Model Number: PFSK151
- Part Number: 3BSE018876R1
- Function: Signal conditioning, pulse distribution, and fault monitoring
- Compatibility: UNITROL 5000, UNITROL 6000, and MEGADRIVE-LCI systems
- Input Voltage: 15V DC / 24V DC (Internal system power)
- Channels: Multiple isolated signal paths for pulse feedback and monitoring
- Isolation: High-voltage galvanic isolation to protect control logic
- Interface: Multi-pin DIN connector for rack mounting
- Diagnostics: Onboard LED indicators for status and error detection
ABB PFSK151 3BSE018876R1
ABB PFSK151 3BSE018876R1
ABB PFSK151 3BSE018876R1
Country of Origin
This module is engineered and manufactured by ABB Switzerland Ltd. in Turgi, the global center of excellence for ABB’s power electronics technology.
Application Fields
The PFSK151 is critical for managing power flow in large-scale electrical infrastructure:
- Generator Excitation: Part of the control loop for the UNITROL 5000/6000 systems used in hydroelectric and thermal power plants.
- Large Motor Drives: Integrated into MEGADRIVE-LCI (Load Commutated Inverters) for controlling synchronous motors in the 1MW to 100MW+ range.
- Static Frequency Converters (SFC): Used in railway power supplies to convert grid frequency.
- Soft Starters: Assisting in the controlled startup of massive industrial compressors and pumps.
- Redundant Control Systems: Frequently used in dual-channel configurations to ensure plant uptime.
Product Usage Instructions
- Safety First: Before installation, ensure the system is completely de-energized and capacitors are discharged. High-power systems can retain lethal energy even after power-off.
- Mounting: Slide the PFSK151 into its designated slot in the subrack (e.g., a UNIREC or similar frame). Ensure the backplane connectors are aligned to prevent pin damage.
- Cable Management: Connect any ribbon cables or fiber optic links to the front-panel headers. Ensure all connections are secure to avoid signal intermittent issues caused by vibration.
- DIP Switch Settings: Check the onboard DIP switches or jumpers. These are often used to define the signal gain or the specific hardware address within the system bus.
- Initial Power-Up: During commissioning, verify that the status LEDs indicate “Normal” operation before enabling the high-voltage power section of the drive or excitation system.
Product Technical Description
Technically, the PFSK151 acts as a High-Integrity Interface. It is designed to operate in environments with extreme electromagnetic interference (EMI). Its primary job is to process feedback signals (like current and voltage measurements) and distribute firing pulses to thyristors or IGBTs. The board includes sophisticated filtering logic to ensure that only “clean” signals reach the central processor (such as the AC 800PEC). The 3BSE018876R1 revision features hardened components designed for a 20+ year service life in continuous industrial operations.
Q&A (Common Questions)
Q: What is the difference between the PFSK151 and PFSK152? A: While they belong to the same family, they often differ in the number of channels supported or the specific signal levels they are designed to condition. Always check your system manual for the exact required part number.
Q: Can I repair a faulty PFSK151? A: Due to the safety-critical nature of the board (controlling high-power semiconductors), ABB generally recommends replacement. Field repairs can compromise the galvanic isolation and lead to catastrophic system failure.
Q: Why are the fault LEDs flashing red? A: This usually indicates a “Supply Voltage Out of Range” or a “Communication Timeout” with the main controller. Check the 24V power supply and the backplane connection.
Q: Is the 3BSE018876R1 compatible with older UNITROL systems? A: It is specifically designed for the newer generation architecture. For legacy systems (like UNITROL F), a different series of interface boards is required.
