Description
- Model: ABB PFSK152
- Part Number: 3BSE018877R1
- Brand: ABB
- Series: Advant OCS / Master / AC400 Series
- Core Function: Processor Synchronization and Redundancy Linking
- Product Type: Communication / Sync Interface Module
- Key Specs: Fiber Optic Interface Support Sub-millisecond Data Sync Backplane Integration
- Link Speed: Optimized for real-time memory mirroring between redundant CPUs.
- Interface: Dedicated high-speed bus connection to the processor module.
- Fiber Support: Integrated ports for fiber-optic sync cables (prevents electrical interference).
- Diagnostics: Front-panel LEDs for ‘Run’, ‘Primary’, ‘Backup’, and ‘Sync Fault’.
- Isolation: Galvanic isolation between redundant racks to prevent fault propagation.
- Power Consumption: Approx. 3.5 Watts (drawn from the subrack backplane).
- Redundancy Modes: Supports “Hot Standby” and “Bumpless” failover logic.
- Compatibility: Specifically for PM450, PM410, and similar Advant processors.

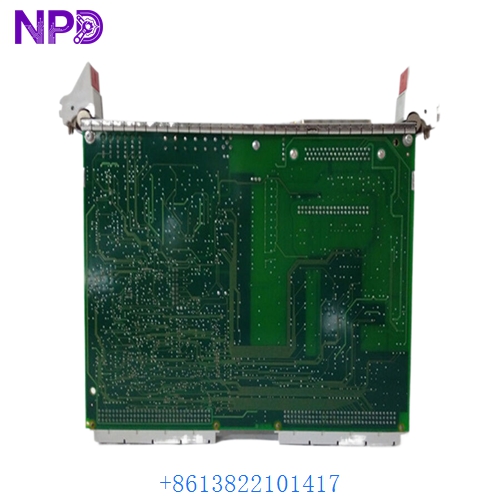

ABB PFSK152 3BSE018877R1
ABB PFSK152 3BSE018877R1
Application Scenarios & Pain Points
In a 24/7 chemical plant or a large-scale power boiler, the PFSK152 is what prevents a 10,000 CPU failure from turning into a 1,000,000 plant shutdown. The biggest pain point I see in the field is “Sync Loss” (SL) alarms. Because these modules rely on high-speed data transfer, even minor oxidation on the backplane pins or a slightly kinked fiber cable can cause the backup CPU to go “Offline.” When this happens, you lose your safety net, and the plant is running on a single point of failure.
Typical Application Scenarios:
- Power Generation – Boiler Control (AC450) Maintaining synchronization between dual PM450 processors managing drum level and fuel flow.
- Oil & Gas – Compressor Control Ensuring that high-speed surge protection algorithms are mirrored on the standby unit.
- Metals & Mining – Continuous Casters Providing the redundancy link for PLC systems where a controller freeze would cause a massive mechanical wreck.
Case Study: The “Single-Thread” Scare in a Refinery
Background: A refinery in the Middle East noticed their backup AC450 controller was stuck in “Initializing” mode. The HMI showed “Redundancy Lost.”
The Problem: We identified that the 3BSE018877R1 sync module was failing its internal timing check. The crystal oscillator on the board had drifted over 15 years of heat soak, meaning it could no longer “talk” fast enough to the primary CPU to maintain a valid sync.
The Solution: We provided a “Tested Surplus” PFSK152. Before shipping, we performed a 48-hour “Pair-Sync” test on our Advant rig to ensure the module could sustain a 100% data mirror without jitter.
The Result: – Resolution: The board was hot-swapped during a shift change.
- Outcome: The backup CPU instantly went into “Hot Standby” (Green LED).
- Client Feedback: “The 3BSE suffix was a perfect match. Redundancy was restored in seconds.”
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Integration Effort |
|---|---|---|---|---|
| PFSK152 | PFSK151 | ❌ Incompatible | Older generation sync | Totally different firmware |
| PFSK152 | 3BSE018877R2 | ✅ Direct Replace | Minor component update | Drop-in; zero config |
| PFSK152 | CI854 (800xA) | ❌ Incompatible | Next-gen Profibus | Requires full system upgrade |
Troubleshooting Quick Reference
| Symptom | Likely Cause | Board Related? | Quick Check | Action |
|---|---|---|---|---|
| ‘SYNC’ LED Dark | Link Cable Disconnected | ⚠️ Medium | Check the fiber or ribbon cables between Racks. | Reconnect or replace cables. |
| ‘FAULT’ LED Red | Internal Self-test Fail | ✅ High | Power cycle the rack. | If LED stays red, replace PFSK152. |
| Backup won’t sync | Firmware Revision Mismatch | ⚠️ Medium | Check software version in Advant Builder. | Ensure both racks have identical software. |
| Intermittent Alarms | Backplane Vibration | ⚠️ Medium | Reseat the module and tighten screws. | Ensure a firm mechanical connection. |
Integrator’s “Field Tips”:
- The Fiber Factor: If your PFSK152 uses fiber optic sync links, clean the ports. Dust is the enemy of redundancy. Use a specialized fiber cleaning pen before you condemn the board.
- Revision Matching: Redundancy is a “marriage.” Both sync modules in the pair should ideally be the same revision (e.g., both 3BSE018877R1). While mixed revisions can work, they can cause subtle timing issues that lead to “Ghost Trips.”
- Cold Boot Warning: When you install a new sync module, the backup CPU will need to perform a “Full Load” from the primary. This can take several minutes. Don’t panic if the LEDs don’t turn green instantly; wait for the “Data Image” to finish copying.
