Description
- Model: ABB PFTL101B 2.0KN (3BSE004185R1)
- Brand: ABB
- Series: ABB Pressductor® Web Tension Measurement System
- Core Function: Measures strip and web tension in continuous process lines
- Product Type: Pillow Block Load Cell / Tension Sensor
- Key Specs: 2.0 kN nominal load, horizontal force measurement, IP66 protection
- Model Number: ABB PFTL101B 2.0KN / 3BSE004185R1
- Sensor Type: Pressductor® pillow block load cell
- Measurement Direction: Horizontal force measurement
- Nominal Load Capacity: 2.0 kN
- Overload Capacity: Up to 500% of nominal load
- Accuracy Class: 0.5% typical
- Repeatability Error: < ±0.05%
- Deflection: 0.015 mm
- Spring Constant: 130 kN/mm
- Protection Rating: IP66 standard version / IP66-67 special versions
- Housing Material: Stainless steel construction
- Operating Temperature: Industrial wide-temperature operation
- Typical Output Interface: Analog signal integration with ABB tension controllers
- Typical Pairing Controller: ABB PFEA tension electronics

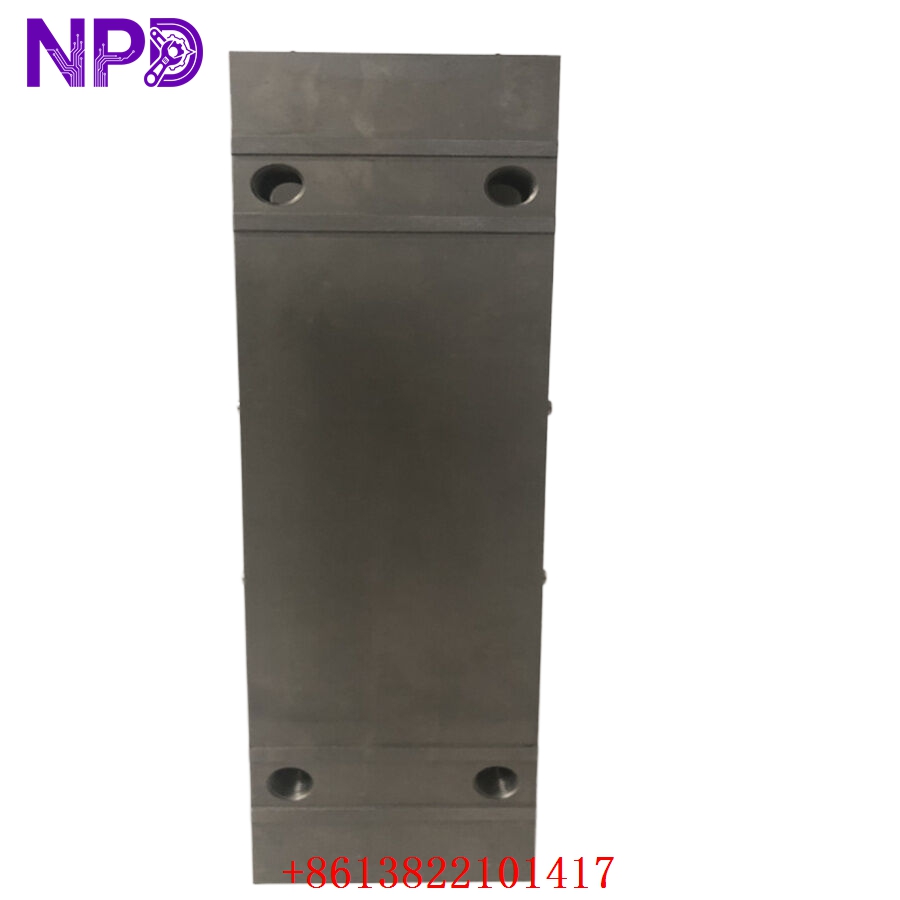

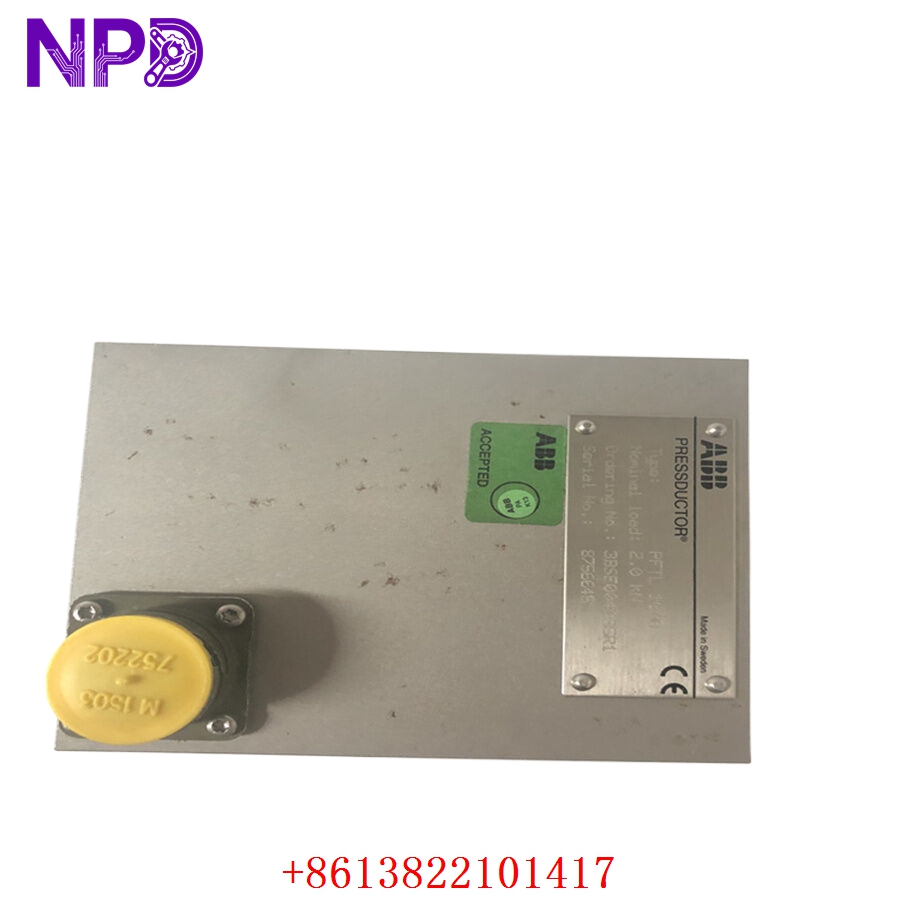

ABB PFTL101B 2.0KN

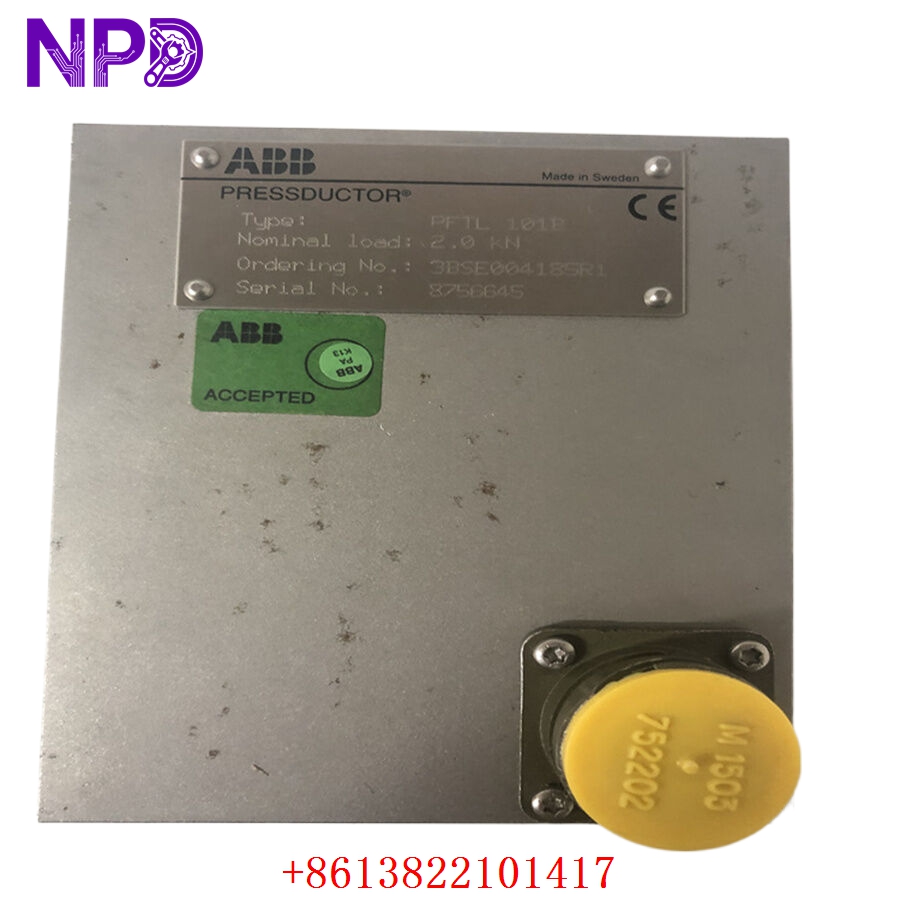

ABB PFTL101B 2.0KN
ABB PFTL101B 2.0KN
ABB PFTL101B 2.0KN
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (Approx. 20 minutes)
⚠️ Tension sensors are precision measurement devices. Mechanical alignment matters just as much as electrical wiring.
Before installation:
- Stop line operation completely
- Lock out drive motors and unwind stations
- Release web tension from rollers
- Verify safe mechanical access
Required tools:
- Anti-static wrist strap
- Torque wrench
- Dial indicator
- Fluke 115 multimeter
- Laser alignment tool
- Shielded instrumentation cable tester
Recommended preparation tasks:
- Photograph roller assembly position
- Record cable routing paths
- Verify load direction orientation
- Check existing tension calibration values
One thing many technicians overlook:
If roller bearings are worn, even a brand-new tension sensor can produce unstable readings.
