Product Description

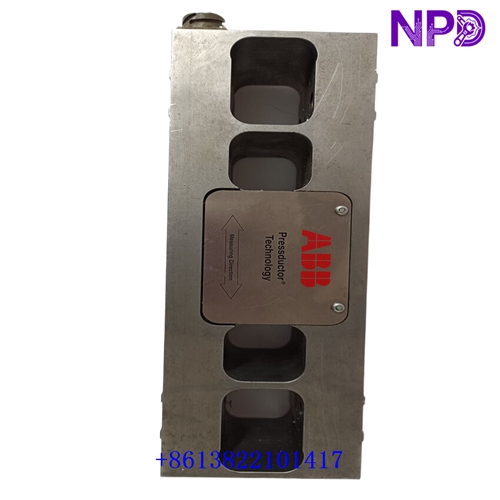

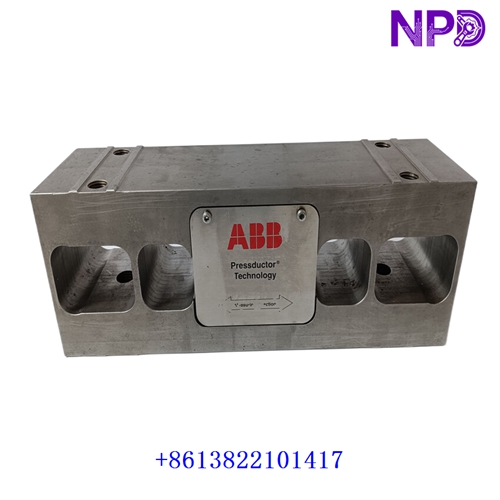

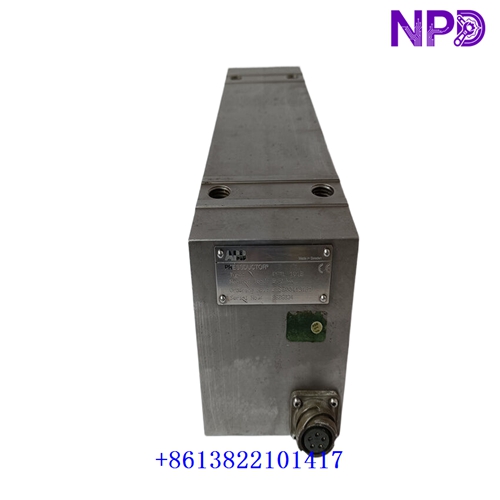

The ABB PFTL101B 5.0KN (3BSE004191R1) is a Pressductor PillowBlock load cell designed for horizontal force measurement and web tension monitoring. Using ABB’s magneto-elastic sensing technology, it measures mechanical forces generated by supported rolls in continuous production lines. Typical applications include paper manufacturing, printing, coating, winding, metal processing, and other web-handling systems. It is designed to operate with a compatible signal-conditioning unit as part of a tension measurement and control system.
PFTL101B 5.0KN 3BSE004191R1
Product Parameters and Datasheet
| Parameter | Specification |
|—|—|
| Brand | ABB |
| Model | PFTL101B 5.0KN |
| Part Number | 3BSE004191R1 |
| Series | Pressductor PFTL101 |
| Product Name | PillowBlock Load Cell / Tension Sensor |
| Product Type | Horizontal Force Measurement Sensor |
| Measuring Direction | Horizontal |
| Nominal Load | 5.0 kN |
| Accuracy Class | 0.5% |
| Repeatability Error | Less than ±0.05% |
| Deflection | 0.015 mm |
| Overload Capacity in Measuring Direction | 25 kN |
| Permitted Transverse Load | 30 kN |
| Output | Pressductor AC signal; compatible signal conditioner required |
| Place of Manufacture | ABB manufacturing origin to be verified for the specific unit |
| Product Status | Legacy product; verify the condition of the supplied unit |
| Dimensions | Verify against the applicable mechanical drawing |
| Weight | Verify against the specific unit and packaging |
| Country of Origin | Verify on the product nameplate |
| Power Requirements | Sensor excitation and signal conditioning depend on the compatible measurement system; confirm the applicable manual |
| Discontinued | Current availability and lifecycle status should be confirmed with ABB |
Recommended ABB Models
1. PFTL101B 2.0 kN — Lower-capacity horizontal force sensor in the same product family.
2. PFTL101B 10.0 kN — Higher-capacity option for compatible installations.
3. PFTL101B 20.0 kN — Higher nominal-load variant for selected tension measurement applications.
4. PFTL101BE 5.0 kN — Mill-duty variant for applicable industrial environments.
5. PFTL101BER 5.0 kN — Acid-resistant variant for compatible wet-process applications.
6. PFTL101A 0.5 kN — Lower-capacity sensor for suitable horizontal-force applications.
7. PFTL101A 1.0 kN — Low-capacity option within the PFTL101 family.
8. PFTL101A 2.0 kN — Alternative capacity for compatible system designs.
9. PFTL101AE 2.0 kN — Mill-duty version for selected web-tension applications.
10. PFTL101AER 2.0 kN — Acid-resistant A-series variant.
11. PFCL 201C 5.0 kN — Related ABB force-measurement product family; verify mechanical and electrical compatibility.
12. PFCL 201CD 5.0 kN — Related force-transducer variant; confirm system requirements before selection.
13. PFCL 201CE 5.0 kN — Related force-measurement variant for specific installation requirements.
14. PFTL101BE 10.0 kN — Mill-duty option with a higher nominal capacity.
15. PFTL101BER 10.0 kN — Acid-resistant option with a higher nominal capacity.
Confirm the exact suffix, rated capacity, mounting arrangement, signal conditioner, and calibration requirements before ordering a replacement. Similar model names do not guarantee interchangeability.
