ABB PFTL101B | 5.0KN 3BSE004191R1 Tension Load Cell

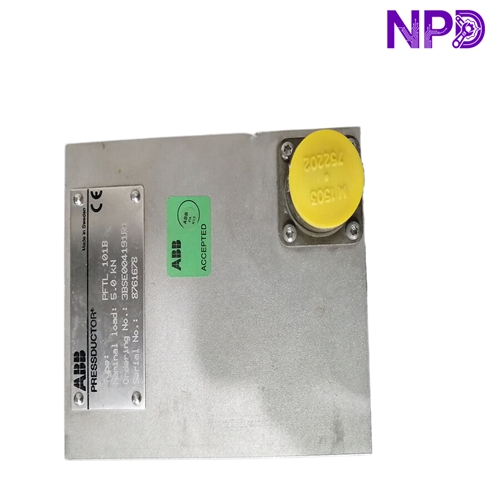

ABB PFTL101B | 5.0KN 3BSE004191R1 Tension Load Cell - Image 2

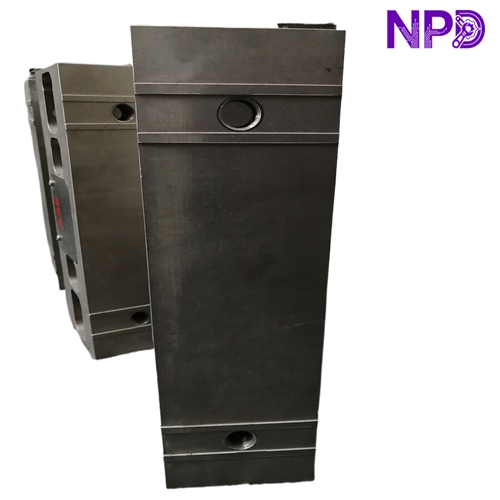

ABB PFTL101B | 5.0KN 3BSE004191R1 Tension Load Cell - Image 3

ABB PFTL101B | 5.0KN 3BSE004191R1 Tension Load Cell

Original price was: $10,000.00.Current price is: $1,082.00.

Product NO：PFTL101B  5.0KN 3BSE004191R1

Brand：ABB

Delivery time:  In stock

Product status:   Brandnew

Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: Tags:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

The ABB PFTL101B (Part Number 3BSE004191R1) is a high-precision Pressductor® tension load cell designed for web tension measurement in demanding industrial processes. Featuring a robust 5.0 kN capacity, this load cell is engineered to provide accurate, reliable force measurement in applications such as paper mills, printing presses, and metal processing lines. Its unique electromagnetic operating principle ensures exceptional durability, immunity to overload, and stability in harsh, high-temperature, or moisture-rich environments.

ABB PFTL101B 2.0KN

ABB PFTL101B 2.0KN

Key Technical Specifications

  • Load Capacity: 5.0 kN (kiloneutrons) nominal load rating
  • Operating Principle: Pressductor® technology (based on the magneto-elastic effect)
  • Accuracy: Extremely high linearity and repeatability for precise web tension control
  • Overload Protection: Designed to withstand significant mechanical overloads without recalibration
  • Temperature Resistance: High thermal stability for consistent performance across varied ambient conditions
  • Mounting: Compact and easy-to-install design for horizontal or vertical force measurement
  • Material: Corrosion-resistant construction suitable for challenging industrial atmospheres
  • Output Signal: Reliable analog signal transmission for integration into tension control systems
  • Maintenance: Maintenance-free design, significantly reducing downtime in continuous operations
  • Application Environment: Optimized for paper, plastic, foil, and metal web tensioning



Related ABB Pressductor® Series Model Recommendations

For comprehensive tension control and monitoring across your production lines, consider these related models from the ABB web tension measurement family:

  1. PFTL101B 0.5KN: Lower capacity variant for fine web tension applications.
  2. PFTL101B 2.0KN: Mid-range capacity load cell for versatile web processing.
  3. PFTL101B 10KN: High-capacity model for heavy-duty metal or thick-film processing.
  4. PFCL201: Compact load cell series for specialized narrow-web machines.
  5. PFTL201: Heavy-duty load cell for extremely high-tension requirements.
  6. PFEA111: Compact, DIN-rail mounted tension electronics for simple applications.
  7. PFEA112: Advanced tension electronics with fieldbus communication (e.g., PROFIBUS).
  8. PFEA113: High-performance tension electronics with expanded I/O and configuration options.
  9. PFBM series: Specialized mounting accessories for Pressductor load cells.
  10. PFSL series: Lateral force measuring load cells for precise web guidance.
