Description
Product Description

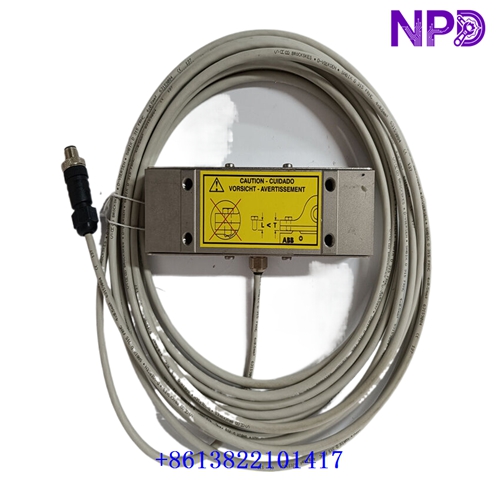

The ABB PFTL301E (3BSE019050R1000) is a Pressductor® pillow block load cell designed for horizontal web-tension measurement in continuous material-processing systems. With a nominal load capacity of 1.0 kN (approximately 225 lbf), it measures the horizontal force component and helps tension-control equipment monitor materials such as paper, film, foil, and other webs. It is designed for use with compatible ABB tension-measurement electronics, such as the PFEA series. Verify the complete sensor configuration and controller compatibility before installation.
PFTL301E 3BSE019050R1000 1.0kN
Product Parameters and Datasheet
| Parameter | Details |
|—|—|
| Brand | ABB |
| Model | PFTL301E-1.0 |
| Ordering Number | 3BSE019050R1000 |
| Series | Pressductor PillowBlock Mini Series |
| Product Name | Horizontal Web-Tension Load Cell |
| Measurement Principle | Pressductor magnetoelastic technology |
| Measurement Direction | Horizontal force component |
| Nominal Load | 1.0 kN (approximately 225 lbf) |
| Extended Load | 1.5 kN |
| Overload Capacity | Depends on load direction; consult the applicable ABB manual |
| Deflection at Nominal Load | Approximately 0.13 mm |
| Spring Constant | Approximately 8 kN/mm |
| Compatible Electronics | ABB PFEA tension-measurement controllers; verify configuration |
| Dimensions | Refer to the ABB dimensional drawing for the exact configuration |
| Weight | Approximately 2.5 kg without adapter plates; verify package configuration |
| Place of Manufacture | Not confirmed; check product label |
| Country of Origin | Not confirmed; check product label |
| Product Status | Confirm whether new, surplus, open-box, or used |
| Discontinued | Confirm current availability with the supplier |
Recommended Related ABB Models
1. PFTL301E-0.1 — Horizontal pillow block load cell, 0.1 kN nominal load.
2. PFTL301E-0.2 — Horizontal pillow block load cell, 0.2 kN nominal load.
3. PFTL301E-0.5 — Horizontal pillow block load cell, 0.5 kN nominal load.
4. PFCL301E-0.2 — Pillow block load cell, 0.2 kN nominal load.
5. PFCL301E-0.5 — Pillow block load cell, 0.5 kN nominal load.
6. PFCL301E-1.0 — Pillow block load cell, 1.0 kN nominal load.
7. PFEA111 — Web-tension measurement controller.
8. PFEA112 — Web-tension measurement controller.
9. PFEA113 — Web-tension measurement controller.
10. PFXC141 — Junction box for compatible tension-measurement systems.
11. PFTL301E — Pressductor horizontal load-cell family.
12. PFTL301E-1.0 — 1.0 kN horizontal load-cell designation.
13. PFTL301E-0.1 — Low-capacity horizontal tension measurement option.
14. PFTL301E-0.2 — Low-capacity horizontal tension measurement option.
15. PFTL301E-0.5 — Medium-capacity horizontal tension measurement option.
Compatibility Note
Choose the load cell according to the required force range, measurement direction, mounting arrangement, and tension-controller configuration. Related models are not necessarily direct replacements.
