Description
- Model: PFXA401S
- Part Number: 3BSE024388R2
- Brand: ABB (Sweden)
- Series: Millmate Tension Electronics (MTE) / Stressometer
- Core Function: Signal Processing for Tension Measurement (Load Cells)
- Product Type: High-Performance Tension Electronics Control Unit
- Key Specs: 24 VDC Supply IP65 Enclosure PROFIBUS/Analog Outputs Dual Channel
- Processor: High-speed digital signal processor (DSP) for real-time tension calculation.
- Inputs: Supports 2 independent load cells (e.g., ABB PillowBlock or Large PillowBlock types).
- Measurement Ranges: Adjustable gain for various load cell sensitivities (0.5–4.0 mV/V).
- Communication:
- Integrated PROFIBUS DP interface for DCS/PLC integration.
- 2 x Configurable Analog Outputs (0–10V or 4–20mA).
- Enclosure: Robust IP65-rated wall-mount housing for harsh industrial environments.
- Display: Built-in HMI with backlit display for local tension values and commissioning.
- Power Consumption: Approx. 15W at 24VDC.

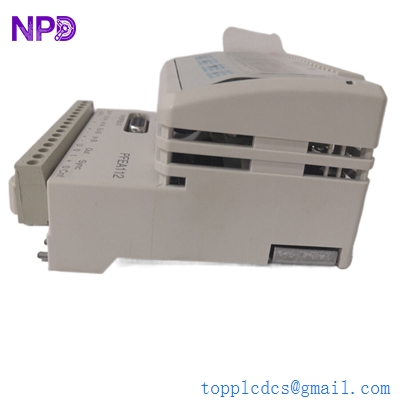

ABB PFEA112-20 3BSE030369R0020
Application Scenarios & Pain Points
The PFXA401S is a precision instrument designed for the most demanding web and strip tension applications. In paper mills, steel rolling facilities, and converting lines, maintaining exact tension is the difference between a high-quality product and a “snap” or “telescoping” roll. The “S” version is specifically optimized for high-performance processing, offering faster update rates and better noise rejection than standard units.
Typical Application Scenarios:
- Steel & Aluminum Rolling Mills Measuring strip tension between mill stands to regulate motor speeds and maintain thickness tolerances.
- Paper & Pulp Machines Controlling web tension in winders and slitters to prevent paper breaks at high speeds (>2000 m/min).
- Converting & Printing Precision tensioning for thin films and foils where even a 1% variance in tension can cause wrinkling.
- Textile Industry Monitoring yarn or fabric tension during high-speed weaving and dyeing processes.
Case Study: The “Mystery Snap” in the Slitter
Background: A high-speed aluminum foil slitter was experiencing random strip breaks. The analog load cell signals seemed “jumpy,” but mechanical inspections showed no issues with the rollers.
The Problem: The facility was using a legacy analog amplifier that was picking up electromagnetic interference (EMI) from the nearby 500kW drive motors. The “noise” was being interpreted as a tension spike, causing the controller to over-react and snap the foil.
The Solution: The plant replaced the old amplifier with the ABB PFXA401S 3BSE024388R2. Because the PFXA401S uses advanced digital filtering and the PROFIBUS digital link, the EMI noise was completely eliminated.
Result: Strip breaks were reduced by 95%, and the plant was able to increase the slitter speed by 15%, significantly boosting daily output.
Similar Product Recommendations
The PFXA series includes several models based on communication protocols and enclosure types. The 3BSE024388R2 is the premium “S” (Standard/Sophisticated) variant.
| Model Number | Compatibility | Main Difference | Integration Note |
| PFXA401S | ✅ Direct | 3BSE024388R2 (IP65) | The high-performance standard. |
| PFXA401F | ❌ Incompatible | Fieldbus only (No display) | Used for “blind” installations inside cabinets. |
| PFXA401PC | ⚠️ Related | Panel Mount Version | Same electronics, but designed for control room consoles. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| “Error” LED (Red) | Load Cell Cable Break | ✅ High | Check resistance across the load cell excitation and signal pairs. |
| Unstable Readings | Improper Shielding | ✅ High | Ensure the cable shields are grounded at the PFXA401S entry only. |
| PROFIBUS Fault | Address Mismatch | ⚠️ Medium | Verify the station address in the PFXA menu matches the PLC hardware config. |
| Zero Drift | Mechanical Binding | ⚠️ Medium | Perform a “Tare” or “Zero” calibration with the strip tension removed. |
Technical SOP & Quality Guarantee
Tension electronics are “mission-critical” measurement devices. Our testing process is rigorous:
- Signal Injection Test: We use a precision mV generator to simulate load cell inputs and verify the PFXA401S calculates the correct force within 0.1% accuracy.
- Analog Output Linearization: We verify that the 4–20mA output perfectly tracks the displayed tension across the entire scale.
- PROFIBUS Handshake: We connect the unit to a Siemens S7 or ABB AC 800M controller to ensure all GSD-based data cyclically updates.
- Environmental Seal Test: For the 3BSE024388R2, we inspect the IP65 gaskets and cable glands to ensure no moisture can enter the electronics.
Engineer’s Pro-Tip: When commissioning a PFXA401S, always perform the “Wrapped Angle” calculation correctly. If the wrap angle of the material over the roller is entered incorrectly in the software, your tension reading will be consistently off by a fixed percentage, regardless of how many times you zero the load cells.
