Description

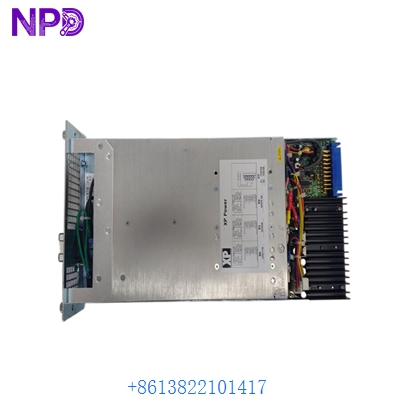

- Model: ABB PHARPS32200000 (F8-G2B9B3B6)
- Brand: ABB (Switzerland/Italy)
- Series: Symphony Plus / Harmony Rack (formerly Bailey Controls)
- Core Function: System power supply providing regulated DC voltages for Harmony/Symphony racks

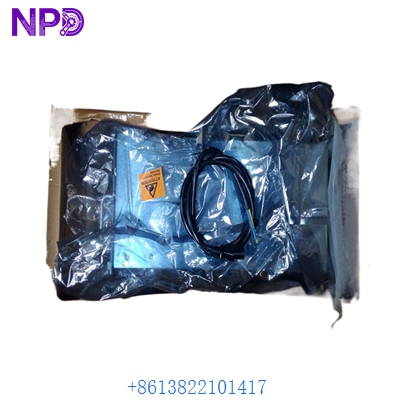

- Condition: Original New Surplus (New in Box), Factory Sealed
- Type: Modular Power Supply Unit (PSU)
- Key Specs: 120/240 V AC Input | +5, +15, -15, +24 V DC Outputs | Redundancy Capable
- Input Voltage: 120/240 V AC (User selectable or auto-ranging depending on sub-rev)
- Input Frequency: 47 to 63 Hz
- Output Voltages:
- +5 V DC: Logic power for controller and I/O modules
- +15 V DC: Analog circuitry and internal signaling
- -15 V DC: Bipolar analog signal requirements
- +24 V DC: Field instrument power and relay driving
- Efficiency: >80% at full rated load
- Redundancy: Supports N+1 or 1+1 configuration when used with power entry modules
- Diagnostics: Front panel LED indicators for input/output status and “Power OK”
- Monitoring: Integrated status contacts for remote alarm reporting via DCS
- Mounting: Standard Symphony Plus / Harmony power rack slots
- Cooling: Forced air via internal fan or rack-mounted fan assembly

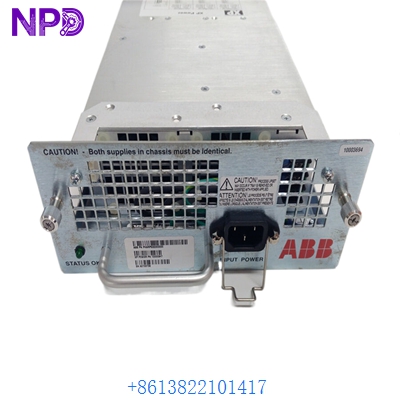

ABB PHARPS32200000 F8-G2B9B3B6
Installation & Configuration Guide
In my experience, the PHARPS32200000 is the lifeblood of the Symphony Plus rack. When these fail, the entire controller node goes dark. The most common mistake I see is improper load balancing in redundant configurations—if one supply is doing all the work, it will burn out twice as fast as it should.
Phase 1: Preparation (15 minutes)
⚠️ Safety First:
- High-voltage AC is present at the backplane/power entry. Ensure the main breakers are off before physical replacement.
- If this is a redundant setup, you can hot-swap the PHARPS32200000, but ensure the partner supply is not already under a “high load” alarm.
- Check the internal fuse or jumper settings (if applicable) for your site’s specific AC voltage (120V vs 240V).
Phase 2: Hardware Installation
- Physical Slotting: Slide the PHARPS32200000 into its designated slot in the power rack. Ensure it is fully seated; a loose connection on a high-current +5V rail can cause localized arcing and damage the backplane.
- Locking: Tighten the captive mounting screws to secure the unit against vibration.
- Cooling Check: Verify that the airflow path is clear. These units generate significant heat when fully loaded.
Phase 3: Power-Up & Measurement
- Apply AC power to the rack.
- Observe the front panel LEDs. The “Input OK” and “Output OK” lights should be solid green.
- Critical Step: Use the test points on the front (if available) or the backplane to verify the +5.1V rail. If the voltage is too low (e.g., 4.8V), the controllers may reset intermittently.
Phase 4: System Integration
- Log into the Symphony Plus Composer or S+ Operations.
- Verify that the “Power Supply Status” tag for that specific node is “Normal.”
- If the system shows a “Redundancy Lost” alarm, check the diode auctioneering unit or the secondary supply’s health.
ABB PHARPS32200000 F8-G2B9B3B6
Customer Cases & Industry Applications
Case 1: Power Plant Shutdown Prevention – Failed Main PSU A major thermal power plant in Southeast Asia noticed a “Low Voltage” alarm on their main DCS rack. The PHARPS32200000 was running at 95% capacity because the redundant unit had failed weeks prior. They were one glitch away from a total blackout. We provided an Original New Surplus unit within 48 hours. Result: Redundancy was restored, and the plant avoided an estimated $500,000 in lost revenue from an unplanned trip.
Case 2: Paper Mill – Legacy Rack Maintenance A paper mill running an older Bailey INFI 90 system that had been upgraded to Symphony Plus needed a reliable source for power modules. They found that refurbished units from other suppliers were failing within months. They purchased three PHARPS32200000 units from us. Result: They haven’t had a power-related failure in over two years, proving that “New Surplus” quality is essential for critical infrastructure.
ABB PHARPS32200000 F8-G2B9B3B6
Frequently Asked Questions (FAQ)
Q: Is the PHARPS32200000 compatible with older INFI 90 racks? A: Yes, the PHARPS32200000 is part of the evolution of the Bailey power system. It is designed to be backward compatible with most Harmony/Symphony rack architectures, but always verify the physical connector type on your existing backplane.
Q: What does the F8-G2B9B3B6 code mean? A: This is an internal configuration or build code that specifies the exact component versions and revisions used in the assembly. For most users, PHARPS32200000 is the primary ordering number you need to match.
Q: Can I repair these units? A: While some technicians replace the internal capacitors, I strongly advise against it for primary DCS power. A failing capacitor can cause a voltage spike that destroys thousands of dollars’ worth of CPU and I/O modules. Replacing the entire unit with New Surplus is the only way to guarantee system safety.
Q: Why are my +15V and -15V rails important? A: These rails power the analog-to-digital converters and signal conditioning circuits. If these voltages drift, your process readings (temperature, pressure, flow) will become inaccurate, even if the PLC logic is still running on the +5V rail.
Q: How do you ensure the quality of a “Surplus” power supply? A: We don’t just “look” at it. Every PHARPS32200000 we ship undergoes a load test on our bench. We verify that all four DC rails stay within ±1% of their nominal value under a 50% and 100% load.
