Description
- Model: ABB PM150V08 (3BSE009598R1)
- Brand: ABB (Sweden/Switzerland)
- Series: Advant OCS / MasterPiece 200 / AC110
- Core Function: Central Processing Unit (CPU) for high-speed logic and process control.
- Condition: Brand New Surplus (Original New), Non-Refurbished.
- Product Type: Processor Module
- Key Specs: 8 MHz Clock Speed | Advant Controller 110 Architecture | Multi-Tasking.

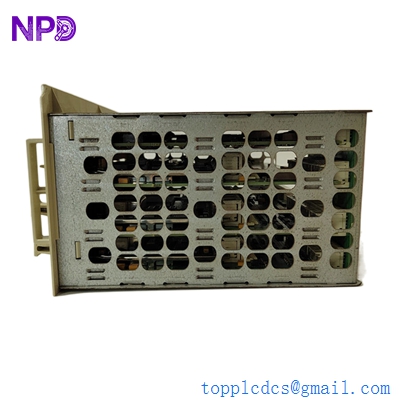

ABB PM150V08 3BSE009598R1
Key Technical Specifications
- Processor Type: Motorola 68000 series (optimized for industrial logic)
- Clock Frequency: 8 MHz
- Part Number: 3BSE009598R1
- Compatibility: ABB Advant Controller 110 (AC110) systems
- Memory Management: Supports local RAM and EPROM sub-modules
- Communication: Integrated interface for AF100 (Advant Fieldbus) via sub-modules
- Power Consumption: Typically 5V DC via backplane
- Programming Language: AMPL (ABB Master Programming Language)
- Diagnostic LEDs: Run, Fault, and Battery Status
- Mounting: Advant Controller sub-rack / Baseplate
- Operating Temp: 0°C to +55°C (Standard industrial rating)
Installation & Configuration Guide
Replacing a PM150V08 is a delicate operation. Because these modules are often the heart of older, sensitive systems (like paper mills or power plants), the sequence of operation is everything.
Phase 1: Pre-Installation (Est: 20 mins)
⚠️ Data Integrity Warning:
- Backup Your Program: Before pulling the old module, ensure you have a current backup of the AMPL logic on your engineering station (AdvaBuild/MasterView).
- Check the Battery: If your program resides in RAM, a dead battery on the baseplate means your logic vanishes the moment you cut power.
- Static Precautions: These older 68k-based boards have very little built-in ESD protection. Use a grounded wrist strap.
Phase 2: Hardware Migration (Est: 10 mins)
- Power Down: Switch off the AC110 sub-rack power supply.
- Memory Transfer: If your program is on a plug-in EPROM or RAM sub-module, carefully move it from the old PM150V08 to the new 3BSE009598R1. Be extremely careful not to bend the pins.
- Jumper Settings: Compare the jumper positions on the side of the new board with the old one. They must be identical for memory addressing.
- Insertion: Slide the module into the dedicated CPU slot and lock the ejector handles.
Phase 3: Power-Up & Online Check (Est: 15 mins)
- First Power-Up: The “Fault” LED may flash briefly during self-test.
- Status Check: The “Run” LED should turn solid green.
- Software Reload: If the module was in RAM mode and lost its charge, you will need to “Cold Start” and reload the application via the serial port or AF100 bus.

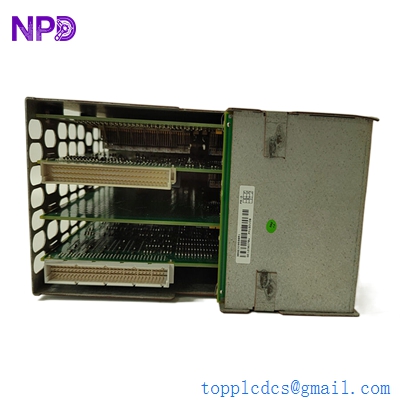

ABB PM150V08 3BSE009598R1
Customer Cases & Industry Applications
Case 1: Paper Mill Downtime Prevention Background: A major paper mill in Scandinavia was using an AC110 system to control its headbox. A lightning strike caused a surge that partially fried the PM150V08 CPU, leading to intermittent “Processor Stall” errors. Task: The mill couldn’t find a replacement through official ABB channels, as the lead time for a refurbished unit was 8 weeks. Every hour of downtime cost the mill $15,000. Action: We supplied a New Surplus 3BSE009598R1 from our strategic reserve. It was delivered via courier in 48 hours. Result: The mill swapped the CPU during a planned 2-hour maintenance window. The plant avoided a catastrophic unscheduled stop, saving an estimated $2.5 million in lost production.
Case 2: Steel Works Lifecycle Extension Background: A steel rolling mill had 12 identical AC110 controllers. They planned to migrate to 800xA in 5 years but had zero spare CPUs. Task: The risk of a single CPU failure shutting down the entire line was deemed “unacceptable” by their insurance auditors. Action: The procurement manager purchased our last two New Surplus PM150V08 modules to keep as “Insurance Spares.” Result: Six months later, one CPU failed due to age-related component fatigue. Because they had the 3BSE009598R1 on-site, the repair took 15 minutes instead of days.
Frequently Asked Questions (FAQ)
Q: Is the PM150V08 interchangeable with the PM150? A: Not exactly. The “V08” indicates a specific version/revision level (often related to clock speed or firmware compatibility). While they look similar, replacing a V08 with a standard PM150 might cause timing issues in high-speed logic. Always match the 3BSE009598R1 part number for a 1:1 replacement.
Q: Does this module come with the program already loaded? A: No. This is a “clean” hardware module. You must transfer your existing memory sub-module (EPROM/RAM) or download your application software after installation. We sell the hardware only; the “brains” come from your backup.
Q: Why buy “New Surplus” for a 20-year-old system? A: To be honest, most “used” ABB Master modules on the market have been running in hot cabinets for two decades. Their capacitors are at the end of their life. A “New Surplus” PM150V08 has zero run-hours, meaning it hasn’t suffered from thermal aging. It’s the closest you can get to a brand-new factory part for a discontinued system.
Q: Can you help me if my “Fault” LED stays on after installation? A: Usually, a solid Fault LED on a new 3BSE009598R1 means a memory checksum error. Check that your memory sub-module is seated correctly and that your jumpers are set to the correct addressing mode. We can provide a jumper diagram if you’ve lost yours.
