ABB PM511V08 3BSE011180R1 | Processor Module (复制)

Description

• Model: ABB PM511V08 (3BSE011180R1)
• Brand: ABB
• Series: MasterPiece 200 / Advant DCS
• Core Function: Central Processing Unit (CPU) for process control
• Product Type: Processor Module
• Key Specs: 8MB Memory | V08 Firmware version | High-speed processing

• Microprocessor: Motorola 68000 series (Industry standard for MP200)
• Memory Capacity: 8 MB RAM (System and Application memory)
• Firmware Revision: V08 (Critical for system compatibility)
• Communication: Supports AF100 and MasterBus 300 via subrack backplane
• Battery Backup: Lithium battery for RAM retention during power loss
• Power Consumption: 10W @ +5 V DC (Internal bus)
• Diagnostics: Front panel Seven-Segment Display for error codes
• Clock Frequency: 16 MHz internal clock
• Self-Test: Continuous hardware and watchdog supervision
• Operating Temp: 0 to +55°C

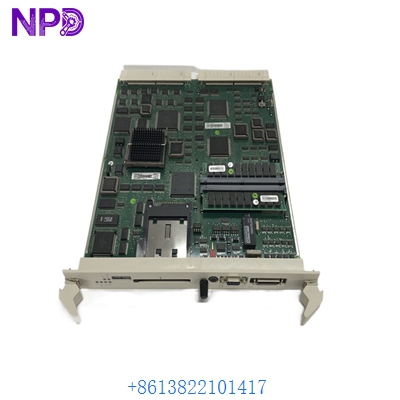

ABB PM511V08 3BSE011180R1

Application Scenarios & Pain Points

In the world of legacy DCS, the ABB PM511V08 is the “brain” of the MasterPiece 200 system. These controllers have been running in heavy industries—like aluminum smelters and power plants—since the late 90s. The biggest challenge today is memory degradation or internal battery failure. When the battery dies on an unpowered spare, the application program is lost. Even worse, if the “V08” firmware version doesn’t match your existing redundant pair, the controllers won’t sync, and you’ll be stuck in “Single” mode with no backup.

Typical Application Scenarios:

1. Aluminum Smelting: Managing potline controls where high electromagnetic interference (EMI) requires a robust, proven processor.
2. Cement Kilns: Coordinating complex PID loops for temperature and draft control in high-dust environments.
3. Steam Turbine Control: High-speed execution of logic for valve positioning and load shedding.
4. Legacy DCS Maintenance: Keeping 20+ year-old MasterPiece 200 racks operational to avoid a multimillion-dollar full system migration.

Real-World Case: The “Version Mismatch” Shutdown

Background: A regional power plant had a redundant PM511 pair. One module failed due to a RAM parity error.

Problem: The maintenance team grabbed a “PM511” from their storage, but it was a V06 version. When they plugged it in, the system refused to synchronize. The running controller was overwhelmed by the synchronization attempts and eventually tripped, causing a 6-hour blackout for the local grid.

Solution: They contacted us for an exact ABB 3BSE011180R1 with the V08 firmware. We verified the version on our test rack, ensured the lithium battery was fresh, and sent it via priority air.

Result: The plant was able to restore full redundancy within 24 hours. Engineer’s Advice: Never assume all PM511s are the same. Always check the suffix (V06, V08, V16) on the side label or the startup display.

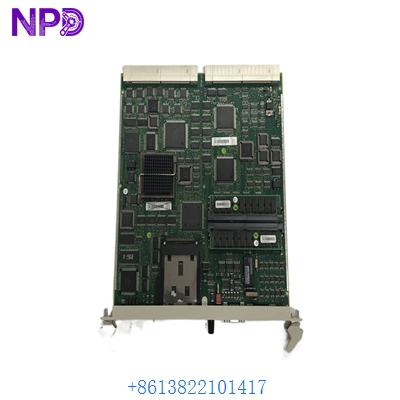

ABB PM511V08 3BSE011180R1

Compatible Replacement Models

The PM511 has evolved through many versions. While newer versions often have more memory, they aren’t always “drop-in” compatible due to software constraints.

Technical Warning: If you are replacing a PM511V08 in a redundant setup, both processors must be the same version. Mixing versions will lead to “Redundancy Lost” alarms or communication timeouts.

Troubleshooting Quick Reference

Final Tech Note: Before installing a spare PM511, check the battery voltage. If the battery is below 3.0V, the module will lose its program the moment you lose rack power. We ship all our PM511 units with tested/new batteries to ensure they are “Ready to Run.”

ABB PM511V08 3BSE011180R1

Inventory List: ABB MasterPiece & Spare Parts

1. PM511V08 (3BSE011180R1)
2. PM511V16 (3BSE011181R1)
3. DSBC173 (Bus Extender)
4. DSDP170 (Pulse Input)
5. DSAI130 (Analog Input)
6. DSBC174 (Bus Extender)
7. DAPC100 (Processor)
8. DSAO120 (Analog Output)
9. DSDI110 (Digital Input)
10. DSQC236A (Robot Controller Module)
