Description
The ABB PM511V16 (Part number 3BSE011181R1) is a central processing unit (CPU) module for the Advant Controller 400 (AC 410 and AC 450) series. As part of the Advant OCS (Open Control System) family, this processor is designed for high-end industrial automation tasks requiring robust logic execution and extensive communication capabilities.
Product Parameters (Datasheet)
- Model Number: PM511V16
- Part Number: 3BSE011181R1
- Processor Speed: 16 MHz (Optimized for deterministic industrial control)
- Memory Capacity: 8 MB (Standard for V16 revision)
- System Compatibility: Advant Controller 400 (AC 410 / AC 450)
- Redundancy Support: Compatible with hot-standby redundant configurations
- Power Supply: 5V DC (Internal via backplane)
- Operating Temperature: +5 to +55 °C
- Dimensions: Standard 19-inch rack-mount card format

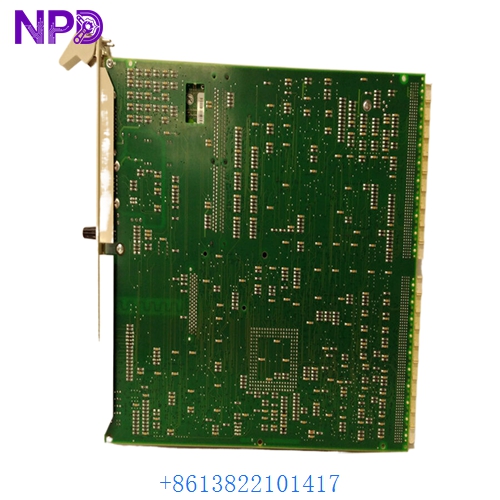

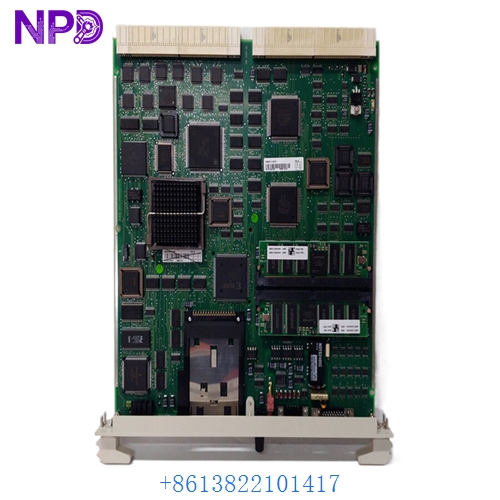

ABB PM511V16 3BSE011181R1
ABB PM511V16 3BSE011181R1
ABB PM511V16 3BSE011181R1
Country of Origin
This processor was manufactured by ABB in Sweden, engineered specifically for long-term stability in heavy industrial applications.
Application Fields
The PM511V16 serves as the “brain” of the control system in large-scale operations:
- Power Plants: Controlling boiler sequences, turbine auxiliaries, and burner management systems.
- Pulp & Paper: Managing complex continuous processes and coordinated drive sections.
- Oil & Gas: Interfacing with remote I/O and managing safety and process loops in refineries.
- Chemical Processing: Executing sophisticated batch control and PID regulation.
Product Usage Instructions
- Installation: Insert the PM511V16 into the dedicated CPU slot of the AC 400 subrack. Ensure the module is fully seated before tightening the front-panel captive screws.
- Memory Backup: Always verify that the battery backup module on the subrack is functional. This prevents the loss of the application program during power interruptions.
- Firmware Version: Ensure the system firmware (system software) loaded on the controller is compatible with the “V16” hardware revision. Incompatible firmware may result in a “System Halt” error.
- Network Configuration: Use the AdvaBuild engineering tool to configure the AF 100 or MB 300 communication parameters. The PM511V16 manages these data flows through the backplane bus.
- Diagnostic Monitoring: Monitor the LEDs on the front panel. A steady green RUN LED indicates normal operation. A red F (Fault) LED indicates a hardware or system software failure.
Product Technical Description
The PM511V16 is built for deterministic performance, meaning it executes control tasks in a fixed, predictable cycle time regardless of network load. Technically, it handles high-level functions like floating-point calculations, complex PID loops, and large-scale data communication. The “V16” designation refers to its internal processing power and memory addressing capability, allowing it to handle larger application programs than earlier PM510 versions. In a redundant setup, two PM511 units communicate via a dedicated link to ensure a bumpless transfer in the event of a primary unit failure.
Q&A (Common Questions)
Q: Can I replace a PM511 with a PM511V16? A: Yes, the V16 is generally the modern successor and is backwards compatible, provided your system software version supports the higher memory capacity.
Q: What should I do if the “Battery” LED is yellow? A: This indicates that the backup battery in the subrack is low. Replace the battery as soon as possible while the system is powered on to avoid losing the program in the RAM.
Q: Does this module require a separate communication board for Ethernet? A: Yes, the PM511V16 focuses on processing. Communication to Ethernet (TCP/IP) or other networks typically requires a dedicated module like the CI522 or CI541.
Q: Is the PM511V16 “Hot-Swappable”? A: In a non-redundant system, pulling the CPU will stop the process. In a redundant system, you can swap the “Backup” CPU while the “Primary” is running, following the correct maintenance procedures.
Similar Model Recommendations
- ABB PM510 (Standard 8 MHz version)
- ABB PM511V08 (8 MB variant with different clock speed)
- ABB CI522A (AF 100 Communication Interface)
- ABB PM864A (Modern 800xA successor)
- ABB DSBC174 (Bus Connection Module for AC 400)
For further technical support or to procure the ABB PM511V16 3BSE011181R1, please contact our Advant OCS specialist team.
