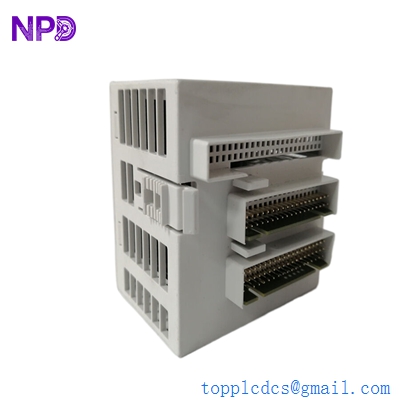

ABB PM783F 3BDH000364R0002 AC 700F Central Processing Unit

Description

• Model: ABB PM783F (Part Number: 3BDH000364R0002)
• Brand: ABB (Germany)
• Series: AC 700F / Freelance DCS
• Core Function: Central Processing Unit (CPU) for the AC 700F controller system
• Product Type: Logic Processor / Controller Module
• Key Specs: 8 MB RAM, integrated Ethernet and Serial interfaces, support for up to 8 S700 I/O modules

• Memory: 8 MB internal RAM (Data and Program storage)
• Communication Ports:
  • 1 x Ethernet (RJ45) for system bus communication
  • 2 x Serial (RS-232/RS-485) for Modbus or local tool connection
• I/O Capacity: Direct connection of up to 8 S700 I/O modules; expandable via fieldbus
• Operating Voltage: 24 V DC
• Processor Speed: High-speed RISC architecture for real-time control
• Redundancy: Supports peer-to-peer communication redundancy via Ethernet
• Operating Temp: 0 °C to +60 °C
• Software Environment: Configured via Freelance Engineering (DigiTool)

Installation & Configuration Guide

Phase 1: Pre-Installation (Estimated time: 15 minutes) ⚠️ Safety First:

1. The PM783F is the Master Controller. Replacing it involves a total shutdown of the associated I/O rack.
2. Project Backup: Ensure you have a current export of the Freelance project (.pbp or .csv files).
3. Check the Terminal Base. The PM783F requires a compatible terminal base (e.g., TB711F) for power and bus connections.

Phase 2: Removal (Estimated time: 10 minutes)

1. Label Cables: Mark the Ethernet cable and any serial communication lines.
2. Unlock: Release the locking tabs at the top and bottom of the module.
3. Extraction: Gently pull the PM783F forward away from the terminal base. Avoid touching the gold contact pins on the back to prevent ESD (Electrostatic Discharge) damage.

Phase 3: Installation (Estimated time: 15 minutes)

1. Address Settings: Check the rotary switches or DIP switches on the side of the module to set the station address. This must match the software configuration.
2. Mounting: Align the CPU with the terminal base guides and press firmly until the locking tabs click into place.
3. Battery Check: Ensure a fresh lithium battery (TA724F) is installed if you require data retention during power outages.

Phase 4: Commissioning & Download (Estimated time: 45 minutes)

1. Power up the 24V supply.
2. LED Status: The “PWR” LED should be green. The “ERR” LED may be red initially until a valid project is loaded.
3. Network Config: Use the Freelance Engineering tool to scan the network and assign the IP address to the new CPU.
4. Download: Perform a “Full Download” of the program logic. Once successful, the “RUN” LED should turn solid green.

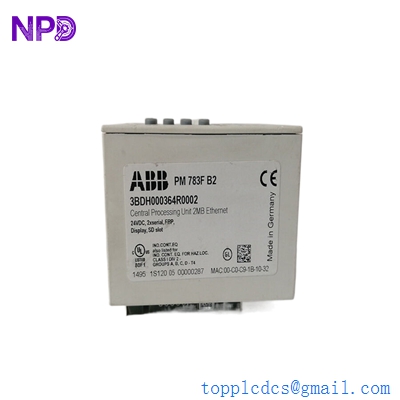

ABB PM783F 3BDH000364R0002

Customer Cases & Industry Applications

Case 1: Chemical Batch Processing Stability A specialty chemical plant in Germany used an AC 700F system to manage batch reactors. The original PM783F failed due to a power supply surge. We delivered a New Surplus module in 48 hours. By utilizing the modular design of the AC 700F, the maintenance team replaced only the CPU while keeping the terminal base and wiring intact, reducing downtime by 70%.

Case 2: Distributed Infrastructure Monitoring A regional water utility utilized PM783F controllers at several remote pumping stations. The units provided Modbus communication to flow meters while reporting back to a central Freelance SCADA via Ethernet. By keeping our New Surplus units as strategic spares, the utility ensured they could recover from a hardware failure at any remote site without waiting weeks for factory lead times.

Frequently Asked Questions (FAQ)

Q: Can I use the PM783F to replace an older PM781F? A: Yes, the PM783F is the higher-performance version with more memory (8MB vs 2MB). It is generally backward compatible, but you must update the hardware definition in your Freelance Engineering software to recognize the new model.

Q: Do I need to buy a separate terminal base? A: If you are replacing an existing PM783F, you can reuse the old terminal base. If this is a new installation, you will need to order a TB711F or similar base separately.

Q: Why is my “ERR” LED flashing red? A: A flashing red LED usually indicates a configuration mismatch—either the physical station address doesn’t match the software, or there is an I/O module missing from the expected configuration.

Q: Is “New Surplus” safe for safety-related logic? A: While the PM783F is a high-reliability controller used in critical processes, it is not a “Safety Instrumented System” (SIS) rated controller like the AC 800M HI. It is 100% reliable for standard process control, and our surplus units are original, un-used parts.

Q: Does it come with the battery? A: To be honest, due to international shipping regulations regarding lithium batteries, we usually ship the units without the TA724F battery. We recommend sourcing a fresh battery locally to ensure maximum shelf life.
