Description

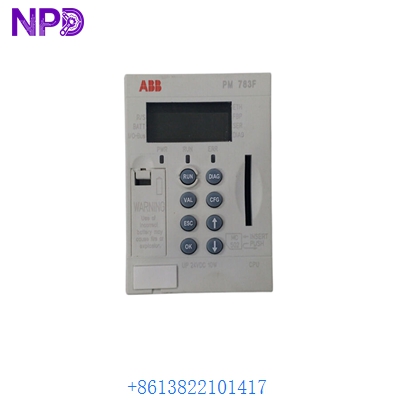

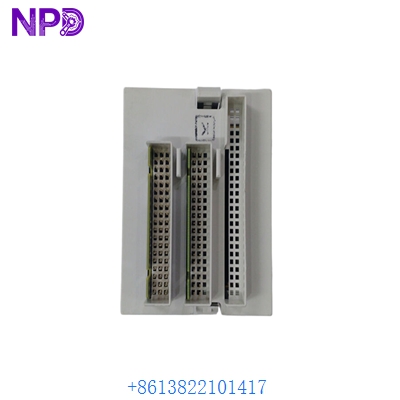

The PM783FB0 is a high-performance PROFIBUS DP Master communication module designed for the ABB AC 800F controller series, ensuring seamless fieldbus integration and real-time data exchange in distributed control systems.
Key Specifications
- Processor: High-speed integrated RISC controller
- Protocol: PROFIBUS DP-V0/V1
- Baud Rate: 9.6 kbit/s up to 12 Mbit/s
- Interface: 1x RS-485 (Sub-D 9-pin)
- Current Consumption: 150 mA at 5V DC
Dimensions & Weight
- Width: 28 mm
- Height: 155 mm
- Depth: 95 mm
- Weight: 0.15 kg (approx. 0.33 lbs)
Environmental Compliance
- RoHS Status: Fully compliant with EU Directive 2011/65/EU
- WEEE Category: Small Equipment (No External Dimension More Than 50 cm)
- Operating Temp: 0°C to +60°C
Application Areas
- Factory automation and manufacturing lines
- Chemical and petrochemical process control
- Power plant monitoring and energy management
- Water and wastewater treatment facilities
Product Q&A
- Q: Can this module operate as a Slave?
- A: No, the PM783FB0 is specifically designed as a PROFIBUS DP Master.
- Q: Does it support hot-swapping?
- A: Yes, it supports hot-plugging within the authorized AC 800F backplane frames.
- Q: Is configuration software required?
- A: Yes, it is configured via the ABB Control Builder F engineering tool.
