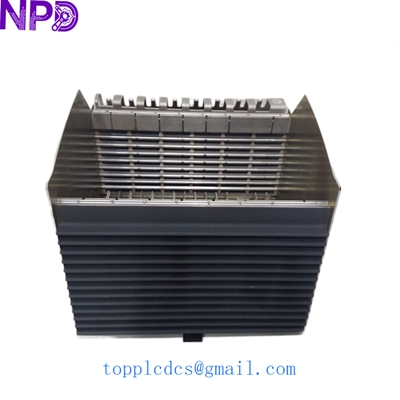

ABB PM803F 3BDH000530R1 | AC 800F Central Processing Unit

Description

• Model: PM803F (3BDH000530R1)
• Brand: ABB
• Series: Freelance AC 800F / Freelance 2000
• Core Function: High-performance processor module for distributed control systems
• Product Type: Central Processing Unit (CPU)
• Key Specs: 16 MB SDRAM | Intel Industrial Processor | Redundancy Support
  • Processor: 32-bit CPU (High-speed industrial execution)
  • Memory: 16 MB SDRAM (Standard) / 8 MB Flash EPROM
  • Display: Integrated 4-character LED display for status and error codes
  • Interfaces: Slots for up to 4 communication modules (EI811F, FI830F, etc.)
  • Redundancy: Fully supports hot-standby redundancy via a dedicated link
  • Power Supply: Requires SA811F power supply module
  • Operating Temp: 0 to +60 °C (+32 to +140 °F)
  • Max I/O Capacity: Typically handles up to 1000 field signals per controller
  • Diagnostics: Hardware watchdog and system self-test routines

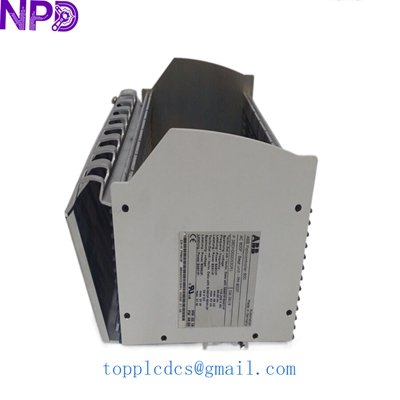

  ABB PM803F 3BDH000530R1

  Application Scenarios & Pain Points

  The PM803F is the flagship controller of the ABB Freelance family. It is designed to bridge the gap between simple PLC logic and complex DCS requirements. In my experience, the PM803F is favored in “hybrid” industries like wastewater treatment or specialty chemical batching because of its compact footprint combined with its massive communication flexibility. The biggest pain point for maintenance teams is usually the “Watchdog Trip” or “Memory Parity” errors that can occur on older units after years of thermal cycling. When the PM803F hangs, the whole process stops. Having a pre-configured spare is the difference between a 10-minute module swap and a week-long scramble for obsolete hardware.

  Typical Application Scenarios:

  1. Boiler Control: Managing complex combustion air-to-fuel ratios and steam drum levels.
  2. Water Treatment: Coordinating multiple remote pump stations via PROFIBUS or Modbus.
  3. Chemical Batching: Executing precise timing and recipe management in reactor vessels.
  4. DCS Migration: Replacing older PM802F units with the higher-memory PM803F to accommodate expanded logic.

  Case Study: The “Redundant Fail” Save

  Background: A municipal biogas plant was running a redundant pair of PM803F controllers. One afternoon, the primary unit suffered a CPU fatal error.

  Problem: While the secondary unit took over, the plant was left without a “safety net.” The local ABB representative quoted a 12-week lead time for a replacement 3BDH000530R1. The plant manager was worried that a second failure would result in a dangerous gas buildup.

  Solution: We supplied a New Surplus PM803F from our newplcdcs inventory.

  Result: The module arrived via express courier. The engineer synchronized the new CPU with the active master, and the redundant pair was fully restored within 48 hours. The plant avoided weeks of high-risk operation.

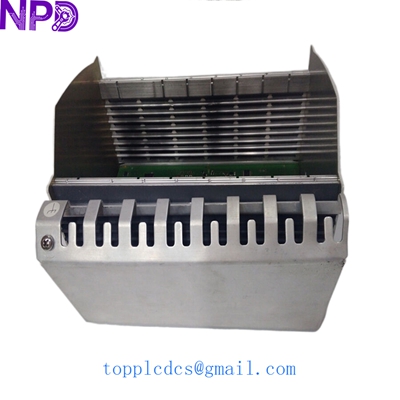

  ABB PM803F 3BDH000530R1

  Troubleshooting Quick Reference

  Symptom	Possible Cause	Relevant to this Module?	Quick Check	Action
  LED Display is Blank	Power Supply Failure	⚠️ Medium	Check SA811F input voltage	Replace Power Module
  “E001” on LED Display	RAM/Memory Error	✅ High	Perform a hard reset	Replace PM803F if persistent
  “E004” on LED Display	Watchdog Timeout	✅ High	Check for infinite logic loops	Review code or replace module
  No Comms with I/O	Bus Interface Fault	⚠️ Medium	Reseat communication modules	Check EI811F or FI830F slots

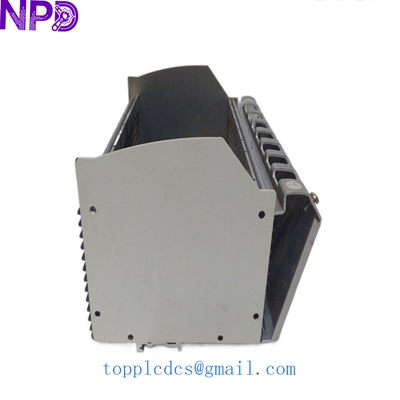

  ABB PM803F 3BDH000530R1

  Technical “Pro-Tips” (Avoiding Common Pitfalls)

  Replacing a PM803F involves a specific sequence to ensure the firmware matches your Freelance version.

  1. Firmware Compatibility: Don’t just plug and play. Use the “Control Builder F” (CBF) software to check the firmware version of the existing controller. If our spare has a different version, you must perform a “Firmware Download” before the controller will accept your application.
  2. The “Redundancy Link”: If you are using these in a redundant pair, ensure the sync cable is locked in tight. I’ve seen units “toggle” between masters because of a loose fiber optic link or serial cable, which can cause erratic I/O behavior.
  3. Battery Maintenance: The PM803F stores the program in RAM. If the battery in the subrack fails and you cycle power during the swap, the program is gone. Always have a current backup of your project file (.cbz) before touching the hardware.

  ❗ Warning: Be careful when inserting the communication modules (like the FI830F) into the PM803F. The connector pins are very fine. If you force a module in at an angle, you can short out the CPU’s internal data bus.
