Description
🔹 Product Introduction

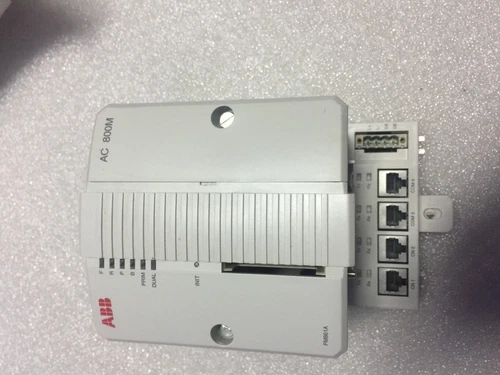

The ABB PM861AK01, part number 3BSE018157R1, is a processor unit for the ABB AC 800M programmable controller family. It is designed for industrial process automation and distributed control applications, supporting execution of control logic, communication with compatible system components, and coordination of connected I/O modules.
The PM861A controller supports redundant and non-redundant configurations depending on the system design and installed hardware. It is used in applications such as power generation, manufacturing, chemical processing, and other continuous-process industries. Configuration and replacement work should follow the applicable ABB engineering documentation.
Before installation, verify the CPU hardware revision, firmware compatibility, controller configuration, communication interfaces, and installed Control Builder software version. Confirm the complete kit contents because the PM861AK01 designation may refer to a package that differs from the PM861A processor alone.
🔹 Product Datasheet
| Parameter | Description |
|---|---|
| Brand | ABB |
| Model | PM861AK01 |
| Part Number | 3BSE018157R1 |
| Series | AC 800M |
| Product Name | Programmable Controller CPU |
| Place of Manufacture | Not independently verified |
| Product Status | Confirm actual stock condition with seller |
| Dimensions | Approximately 119 × 186 × 135 mm; verify package configuration |
| Weight | Approximately 1.2 kg; verify supplied kit |
| Country of Origin | To be confirmed from the product label |
| Power Requirements | Supplied through the compatible controller power arrangement; verify system documentation |
| Processor | PM861A controller CPU |
| Communication | Supports compatible AC 800M system communication interfaces |
| Engineering Software | ABB Control Builder environment; version compatibility must be checked |
| Discontinued | Current lifecycle status not verified |
🔹 Recommended ABB Models
- PM861A — AC 800M controller CPU.
- PM861AK01 — Controller kit designation for exact-part identification.
- PM864A — AC 800M controller CPU.
- PM864AK01 — AC 800M controller kit.
- PM865 — AC 800M high-integrity controller CPU.
- PM866A — AC 800M controller CPU.
- PM866AK01 — AC 800M controller kit.
- PM891 — High-performance AC 800M controller.
- PM901 — AC 800M power supply module.
- PM902 — AC 800M power supply module.
- CI854A — PROFIBUS-DP communication interface.
- CI867 — MODBUS TCP communication interface.
- CI840 — S800 I/O communication interface.
- AI810 — S800 I/O analog input module.
- AO810 — S800 I/O analog output module.
- DO810 — S800 I/O digital output module.
Compatibility note: These models are suggested for ABB AC 800M spare-parts catalog searches. They are not all direct replacements. Verify processor generation, redundancy requirements, firmware, engineering software, power supply, and communication interfaces before ordering.
