Description
Product Overview
The ABB PM861AK01 is a high-performance processor module used in ABB AC 800M control systems. It serves as the central processing unit of the controller, executing control logic, managing communication, and coordinating I/O operations in industrial automation environments.
Designed for mission-critical applications, the PM861AK01 delivers reliable performance, fast processing speed, and long-term operational stability in industries such as power generation, oil and gas, chemical processing, and manufacturing.
Key Features
- High-performance CPU for AC 800M controllers
- Designed for ABB industrial automation systems
- Fast program execution and communication handling
- Robust hardware for continuous operation
- Supports redundant and non-redundant system configurations

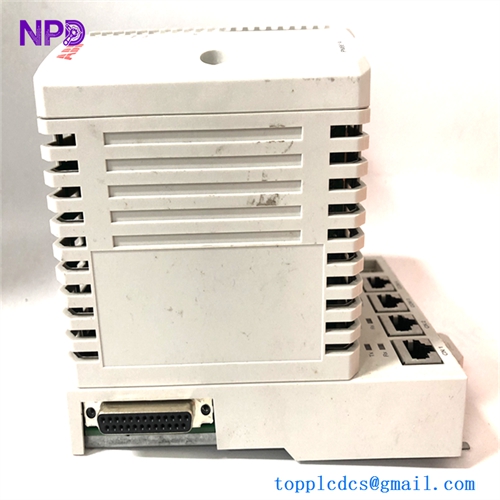

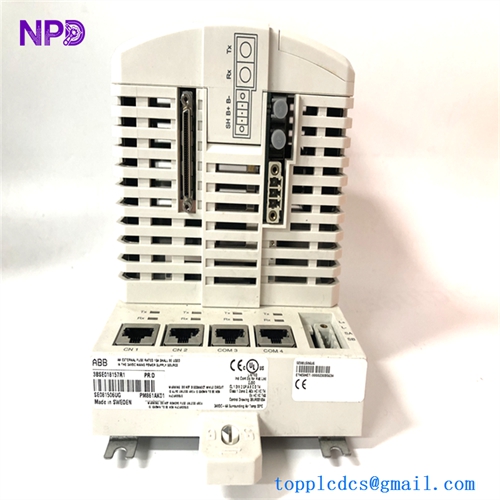

ABB PM861AK01
Product Parameters
| Parameter | Specification |
|---|---|
| Product Model | PM861AK01 |
| Manufacturer | ABB |
| Product Type | Processor Module |
| Controller Series | AC 800M |
| CPU Architecture | Industrial embedded processor |
| Memory Type | Flash and RAM (industrial grade) |
| Mounting Method | DIN rail |
| Operating Mode | Continuous operation |
Product Datasheet (Technical Summary)
| Technical Item | Description |
|---|---|
| Control Function | Logic execution and system coordination |
| Communication Interfaces | Ethernet and internal system bus |
| I/O Management | Supports distributed and local I/O |
| Power Supply | Provided via AC 800M base unit |
| Redundancy Support | Optional controller redundancy |
| Operating Environment | Industrial control cabinet |
Country of Origin
Sweden
Product Keywords
ABB PM861AK01 Processor Module, AC 800M Controller CPU, ABB Industrial Automation Controller, PLC Control Processor,
ABB Automation Spare Parts,
PLC and DCS Modules
Usage Instructions
- Switch off system power before installing or replacing the processor module.
- Mount the PM861AK01 securely onto the AC 800M base unit or DIN rail assembly.
- Connect communication and system interfaces according to the controller configuration.
- Restore power and allow the controller to complete the startup sequence.
- Download or verify the control application using the engineering environment.
Frequently Asked Questions (Q&A)
Q1: What is the main function of the PM861AK01?
A: It executes control programs and manages communication and I/O within AC 800M systems.
Q2: Is the PM861AK01 suitable for continuous operation?
A: Yes, it is designed for 24/7 industrial operation.
Q3: Can this module be used as a direct replacement?
A: Yes, it is commonly used as a direct replacement for the same model in compatible systems.
Q4: Does it support redundant controller configurations?
A: Yes, redundancy is supported when used with appropriate system components.
Q5: Is special configuration required after replacement?
A: The control program must be verified or reloaded after installation.
Similar Model Recommendations
| Model Number | Description |
|---|---|
| PM860AK01 | AC 800M Processor Module |
| PM861AK02 | Enhanced AC 800M CPU |
| PM862AK01 | High-Performance Processor Module |
| PM864AK01 | Redundant Controller Processor |
| PM865AK01 | Safety-related AC 800M CPU |
