ABB PM864A 3BSE018162R1 CPU Module | AC800M Controller

Description

• Model: ABB PM864A (3BSE018162R1)
• Brand: ABB (Sweden)
• Series: Advant Controller 800M (AC800M)
• Core Function: High-performance process controller for DCS/PLC applications
• Product Type: Central Processing Unit (CPU)
• Key Specs: 24 V DC | 32 MB RAM | Supports Redundancy

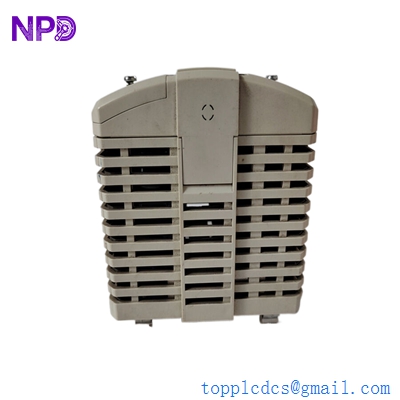

ABB PM864A 3BSE018162R1

Key Technical Specifications

• Microprocessor: 32-bit RISC (96 MHz)
• Memory: 32 MB SDRAM (approx. 10 MB for user applications)
• Flash Memory: 16 MB for firmware storage
• Communication Ports: 2x RS-232 (RJ45), 1x RCU Link (for redundancy)
• Maximum I/O: Up to 8,192 digital and 4,096 analog signals
• Redundancy: Supported via RCU (Remote Center Unit) link
• Module Termination: Requires TP830 Baseplate
• Power Consumption: Typ. 5 W at 24 V DC
• Real-Time Clock: Built-in with battery backup
• Operating Temp: +5°C to +55°C (continuous)

Application Scenarios & Pain Points

In large-scale process industries like refining or power generation, the PM864A is the “brain” that orchestrates thousands of I/O points. The biggest headache for maintenance engineers isn’t just a CPU failure—it’s the synchronization between the primary and the backup. The “A” revision of the PM864 was specifically designed to improve memory management and stability over the original PM864. If you are running a high-availability plant, having an exact 3BSE018162R1 spare is the difference between a 10-minute hot-swap and a 10-hour system rebuild.

Typical Application Scenarios:

1. Chemical Plants – Batch Processing Managing complex logic for reactors and distillation columns where precision timing is non-negotiable.
2. Power Plants – Balance of Plant (BoP) Controlling auxiliary systems like coal handling or water treatment where long-term reliability is required.
3. Metals & Mining – Continuous Casting Handling high-speed control loops in harsh electrical environments with significant vibration.
4. Marine – Propulsion Control Used in redundant configurations for vessel steering and engine management systems.

Case Study: The “Firmware Trap” at a Steel Mill

Background: A steel mill in Northern China had a PM864A fail due to a cooling fan failure in the cabinet which led to thermal fatigue. They had a spare on the shelf, but it was an older “non-A” PM864.

The Problem: When the engineer tried to swap the old PM864 into the rack, the redundancy wouldn’t lock. The Control Builder software reported a “Hardware Revision Mismatch.” Because the plant was running a newer version of 800xA (v5.1), the older CPU couldn’t handle the firmware load, leaving the plant running on a single, non-redundant controller for three days.

Solution: We overnighted a tested PM864A 3BSE018162R1 with the correct firmware pre-loaded.

Result:

• Seamless Integration: The module was inserted into the TP830 baseplate and immediately began “Upper Layer” synchronization.
• Full Redundancy: Within 15 minutes, the “Dual” LED was solid green.
• Efficiency: The mill avoided a forced outage during their peak production cycle.

ABB PM864A 3BSE018162R1

Compatible Replacement Models

Engineer’s Note: If you are currently using a PM864 (non-A) and it fails, you should replace it with a PM864A. However, if you are running a redundant pair, do not mix them. Both the primary and backup must be the same revision (e.g., both PM864A) to ensure the RCU link timing remains within tolerance.

Troubleshooting Quick Reference

❗ Critical Memory Warning: I’ve seen many engineers forget that the PM864A stores its application in volatile RAM. If your battery is dead and you lose power, your program is gone. Always verify you have a recent .pcms backup before pulling a module, and never replace the battery with the power turned off.
