Description
- The ABB PM864AK01 3BSE018161R1 is a high-speed Central Processing Unit designed for the Advant 800xA and Compact Product Suite platforms. It provides robust control logic execution, advanced data processing, and integrated communication for complex industrial automation tasks requiring high availability and reliability.
Product Parameters
- Microprocessor: 96 MHz RISC Processor
- RAM Memory: 32 MB (Battery-backed)
- Flash Memory: 8 MB (Application storage)
- Power Supply: 24 V DC (19.2 to 30 V DC)
- Power Consumption: 5.5 W (typical)
Product Specifications
- Series: AC 800M Controller Family
- Redundancy: Supports CPU and Ethernet redundancy
- Communication: 2 x RJ45 Ethernet ports, 2 x RS-232 ports
- Module Type: Single-slot processor module
- Operating Temperature: +5°C to +55°C (41°F to 131°F)

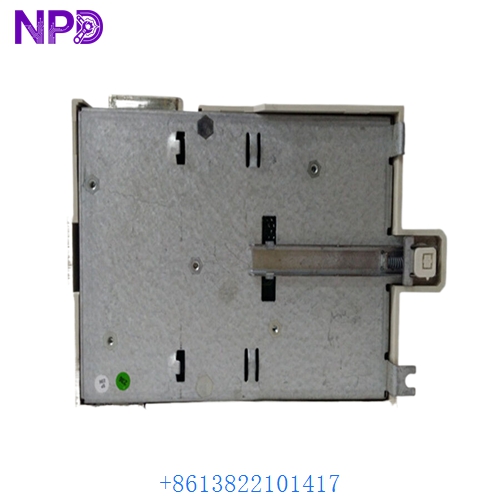

ABB PM864AK01 3BSE018161R1

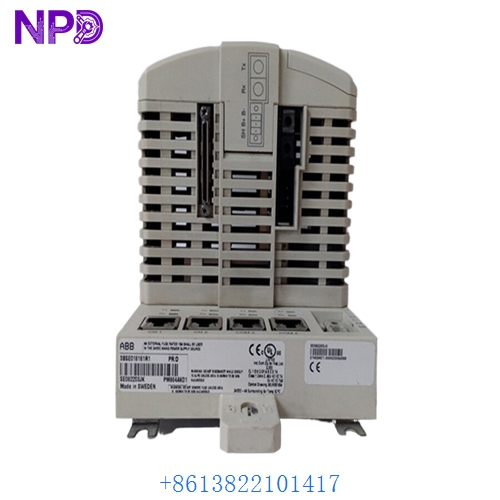

ABB PM864AK01 3BSE018161R1
ABB PM864AK01 3BSE018161R1
Application Fields
- Process Automation: Complex regulatory and logic control in 800xA systems.
- Oil & Gas: Management of separation units and compressor control loops.
- Power Generation: Coordinating auxiliary boiler systems and turbine monitoring.
- Chemical Plants: High-density batch processing and safety-critical interlocking.
Product Q&A
Q: What is the difference between the PM864A and PM864AK01? A: The PM864AK01 is the designated “kit” part number, which typically includes the PM864A processor module along with necessary baseplate or accessory components for installation.
Q: Does this module support hot-swapping? A: Yes, when used in a redundant configuration, the PM864AK01 can be replaced online without stopping the control process.
Q: How is the application program protected during a power failure? A: The module uses an internal battery to maintain the 32 MB RAM, ensuring that the control strategy and runtime data are preserved during power interruptions.
