Description
| Parameter | Specification Details |
| Product Name | AC 800M Controller Kit |
| Model Number | PM864AK01-eA (Module: PM864A) |
| ABB Part Number | 3BSE018161R2 |
| Processor Type | 96 MHz Motorola PowerPC |
| Onboard RAM | 32 MB (22 MB available for application) |
| Flash Memory | 8 MB |
| Redundancy Support | Yes (Requires second PM864A and RC810 cable) |
| Communication Ports | 2 x Ethernet, 2 x RS-232 (CEX-Bus supported) |
| Clock Synchronization | SNTP, MMS Time Service, MB 300 TS |
| Operating Voltage | 24 VDC (Typical 1.4 A) |
| Operating Temp | +5 to +55 °C (+41 to +131 °F) |
| Module Width | 119 mm |

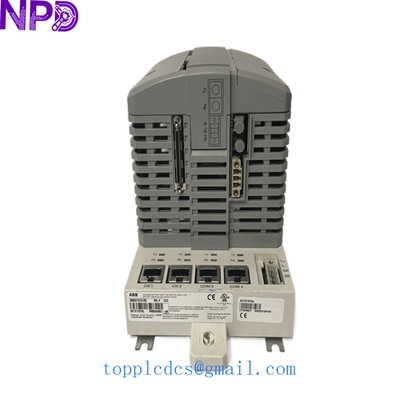

ABB PM864AK01-eA 3BSE018161R2

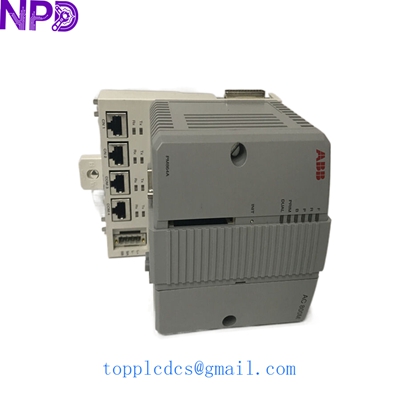

ABB PM864AK01-eA 3BSE018161R2

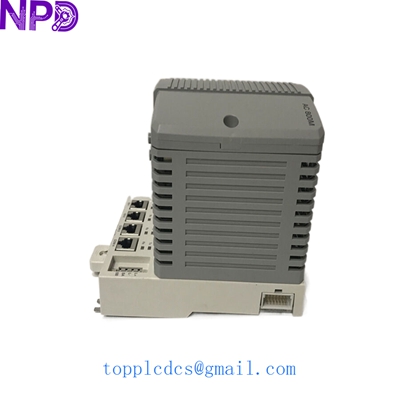

ABB PM864AK01-eA 3BSE018161R2
The ABB PM864AK01-eA is a mid-to-high range controller kit within the AC 800M family, providing a powerful and flexible platform for complex industrial automation. In my experience, the “eA” enhanced version is particularly effective for large-scale DCS applications where high memory capacity and fast execution cycles are required for PID loops and safety logic. This kit includes the PM864A CPU and the TP830 baseplate, offering a modular design that allows for easy expansion via CEX-bus or S800 I/O clusters, making it a reliable choice for refineries, power plants, and pulp and paper facilities worldwide.
