Description

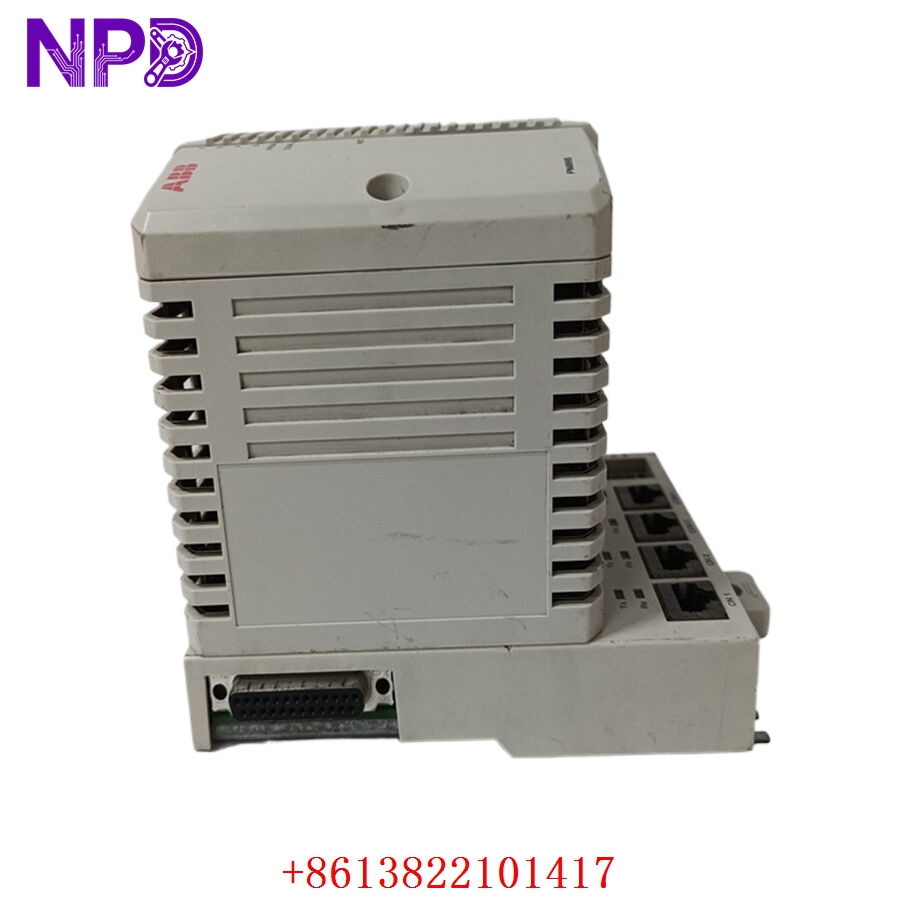

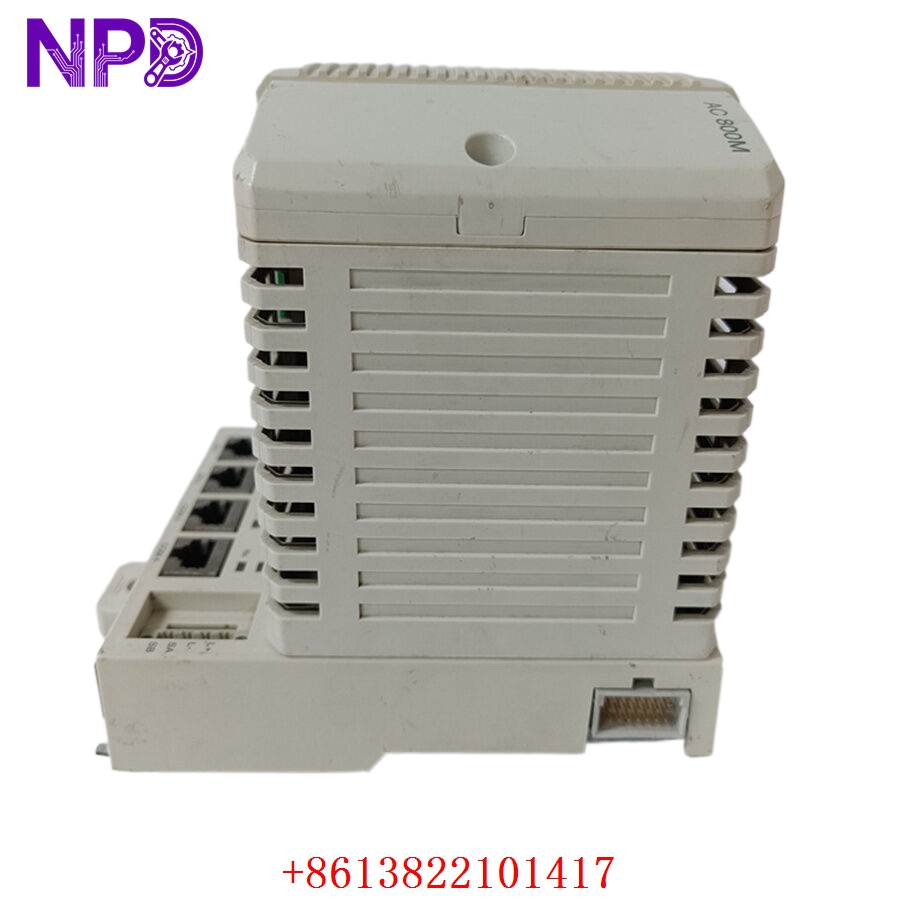

- 🔢 Model: PM866K01 (Part Number: 3BSE050198R1)
- 🏢 Brand: ABB
- ⛓️ Series: System 800xA (AC 800M Controller)
- 💡 Core Function: High-performance CPU module for distributed control systems (DCS)
- 🛠️ Type: Processor Unit (CPU)
- ⚡ Key Specs: Dual-processor architecture, high-speed execution, redundancy support
- 🧠 Architecture: Dual-core processor (CPU redundant capable)
- 💾 Memory: 128 MB RAM (ECC protected)
- 🌐 Communication: 2x Ethernet ports (Control Network/PN8), 2x ModuleBus ports
- 🔋 Input Voltage: 24 V DC
- 🌡️ Operating Temp: +5°C to +55°C
- 🛡️ Protection Rating: IP20
- 💡 Status Indicators: RUN, STOP, ERROR, BATTERY, RED LEDs
- 🛠️ System Compatibility: ABB System 800xA, Advant Controller 400 series migration
Installation & Configuration Guide
Phase 1: Preparation (15 mins)
⚠️ Safety First:
- Ensure the control cabinet is powered down or in a state where a controller swap is permitted by your safety protocols.
- 🧤 Always wear an anti-static wrist strap; the PM866K01 contains sensitive high-speed logic circuits.
- Verify that your Baseplate (TB850/TB851) is compatible with the PM866 series.
Phase 2: Removal & Installation (20 mins)
- 📸 Record Settings: Document the IP settings, cluster ID, and station number.
- 🔩 Detachment: Release the locking pins/levers at the top and bottom of the controller module.
- 📥 Insertion: Align the module with the baseplate pins. Press firmly and lock the pins to ensure high-pressure contact with the backplane.
- 🔌 Connectivity: Connect the Ethernet cables (Red/Blue cables for redundant networks) and ensure the ModuleBus cable is seated correctly.
Phase 3: Testing & Commissioning (30 mins)
- 🟢 Power-Up: Observe the front LEDs. The RUN LED should eventually turn steady green after completing the self-diagnostic cycle.
- 💻 Firmware Synchronization: Use the Control Builder software to download the appropriate firmware and application project.
- 🔄 Redundancy Test: If in a redundant pair, verify that the “RED” LED indicates synchronization status with the secondary controller.
- 🩺 Diagnostics: Check the Plant Explorer or Control Builder diagnostic logs to ensure there are no configuration mismatches.
Customer Cases & Industry Applications
Case: DCS Controller Upgrade in Chemical Processing
- Situation: A chemical plant running ABB 800xA experienced intermittent CPU halts on an older controller model, causing process timing drifts.
- Task: Perform a live-swap upgrade to the PM866K01 to increase processing speed and system reliability.
- Action: We provided the 3BSE050198R1 unit. The upgrade was performed by mirroring the existing application logic into the new controller’s memory.
- Result: The execution speed of the control loops improved by 20%, significantly reducing process latency. The redundancy handshake was established instantly, confirming that the new hardware was fully compatible with the existing cabinet infrastructure.
Frequently Asked Questions (FAQ)
Q: Is the PM866K01 compatible with redundant systems? A: Yes, it is designed for high-availability redundant configurations. It includes the necessary hardware links to synchronize memory states with a secondary partner.
Q: What is the difference between PM866 and PM866A? A: The PM866K01 is the standard robust CPU for System 800xA. The “A” variant usually implies an updated component list or minor internal optimization. Always match the exact part number (3BSE050198R1) to your existing design specification.
Q: My “ERROR” LED is flashing red—what should I do? A: A flashing ERROR LED often indicates a configuration mismatch, a firmware version conflict, or a hardware memory fault.
- Check your project in Control Builder to see if the hardware configuration matches the physical module.
- Ensure you have downloaded the latest firmware matching the module’s revision.
Q: How do I handle the battery? A: The PM866K01 uses an external battery module (usually mounted on the baseplate) to retain the real-time clock and volatile memory during power outages. If the “BATTERY” LED is lit, replace the battery pack (SB806) immediately.
