1. Product Description
The ABB PM904F (3BDH001002R0001) is a high-performance CPU module for the Freelance AC 900F distributed control system. It manages control applications, process data, and communication between field devices and automation systems. The module provides four Ethernet interfaces, two general-purpose serial interfaces, an additional diagnostic serial interface, and four slots for communication interface modules. It supports Modbus TCP, Modbus RTU/ASCII, IEC 60870-5-104, and compatible fieldbus configurations. Direct connection to up to ten S700 I/O modules is supported, and controller redundancy is available when configured with compatible system hardware and software.

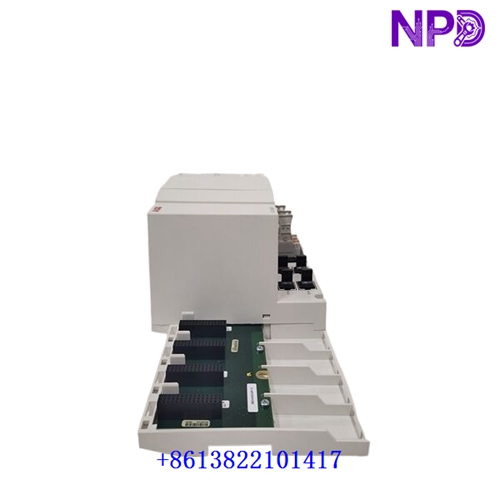

PM904F
2. Product Parameters and Datasheet
– Brand: ABB
– Model: PM904F
– Order Number: 3BDH001002R0001
– Series: Freelance AC 900F
– Product Name: Plus CPU Controller Module
– Processor: PowerQUICC II Pro
– CPU Clock: 800 MHz
– Controller Memory: 48 MB total
– Application Memory: 16 MB battery-buffered SRAM; 32 MB DRAM
– Ethernet Interfaces: 4 × RJ45, 10/100 Mbps
– Serial Interfaces: 2 general-purpose ports plus 1 diagnostic RS-232 interface
– Communication Module Slots: 4
– Power Supply: External 24 V DC
– Typical / Maximum Power Consumption: 24 W / 30 W
– Maximum Direct I/O Modules: 10 S700 modules
– Typical I/O Capacity: Up to approximately 1,500 I/O points, depending on configuration
– Operating Temperature: -20°C to +70°C
– Dimensions: Approximately 285 × 152 × 95 mm
– Weight: Approximately 1.1 kg including base
– Mounting: DIN rail or wall mounting, as supported by the installation configuration
– Product Status: Active in ABB product data; verify current availability with supplier
– Country of Origin: Confirm from product label and shipping documents
– Display / Backup Battery: TD 951F display and TA 951F battery are separate accessories and may not be included
3. Recommended ABB Models
– PM901F — AC 900F Lite CPU controller for smaller applications.
– PM902F — AC 900F Standard CPU controller.
– PM783F — Freelance controller for compatible legacy configurations.
– CI920AS — S700 I/O communication interface; verify system configuration.
– FI840F — Freelance communication interface module.
– FI830F — Freelance fieldbus interface; verify exact application compatibility.
– CI854A — PROFIBUS-DP communication interface for compatible ABB control systems.
– CI853K01 — Serial communication interface for compatible AC 800M systems.
– CI867K01 — Modbus TCP communication interface for compatible AC 800M systems.
– AI723F — S700 analog input module; verify required terminal unit.
– AO723F — S700 analog output module; verify required terminal unit.
– DI724F — S700 digital input module; verify required terminal unit.
– DO724F — S700 digital output module; verify required terminal unit.
– TA951F — Backup battery accessory for supported AC 900F controllers.
– TD951F — Optional display unit for supported AC 900F controllers.
Before ordering, confirm the complete order number, firmware/software version, fieldbus requirements, redundancy design, and included accessories against your existing installation.
