Description
- Model: PMA323BE
- Ordering Code: HIEE300308R1 (associated with 3BHE003616R0101)
- Brand: ABB (Switzerland)
- Series: UNITROL 5000 / UNIGLYPH / MEGATROL
- Core Function: Pulse marshalling and distribution for thyristor firing circuits
- Product Type: Signal Processing / Interface Board (New Surplus)
- Key Specs: Multi-channel pulse distribution | Galvanic isolation | High-speed signal routing

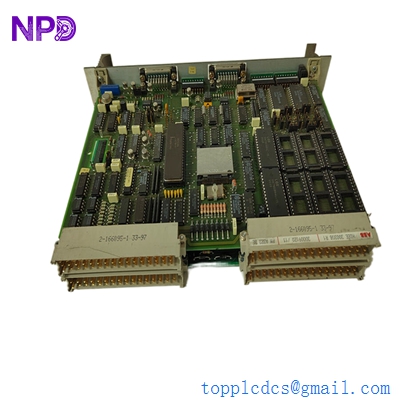

ABB PMA323BE HIEE300308R1(7)_副本
Key Technical Specifications
- Module ID: PMA323
- Hardware Revision: BE (Enhanced reliability version for high-vibration environments)
- Application: Distribution of firing pulses from the control electronics to the thyristor gate units
- Inputs: High-speed digital pulse trains from the PFC (Pulse Frequency Control) units
- Outputs: Isolated pulse outputs for the thyristor bridge (6-pulse or 12-pulse configurations)
- Isolation: Integrated high-voltage isolation to protect control logic from power circuit transients
- Interface: Standard Eurocard 6U format for 19-inch rack mounting
- Diagnostic Features: Onboard LED status indicators for pulse activity and power health
- Compatibility: Works seamlessly with COB, CIO, and PPC control modules in UNITROL 5000 systems

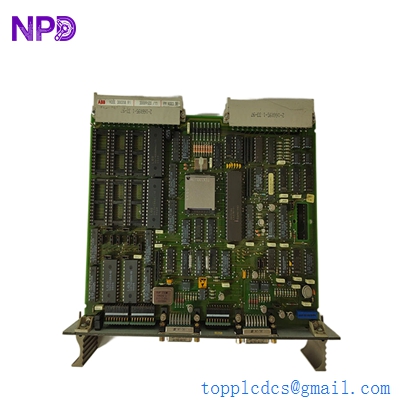

ABB PMA323BE HIEE300308R1
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- This board is directly involved in the firing of high-power thyristors. Ensure the generator is stopped, the field breaker is open, and all DC link capacitors are discharged.
- Visual Inspection: Check the PMA323BE for any transit damage, particularly to the backplane DIN connectors.
- ESD Protocol: Always use a grounded wrist strap. The signal processing chips on this board are sensitive to electrostatic discharge.
Phase 2: Removal of Faulty Module
- Labeling: If the front panel has ribbon cables or fiber optics connected, label them clearly before removal.
- Unlocking: Unscrew the top and bottom retaining fasteners from the rack.
- Extraction: Pull the board straight out using the handles. Do not touch the gold-plated pins on the rear connector.
Phase 3: New Module Installation
- Alignment: Align the PMA323BE with the card guides in the UNITROL rack.
- Seating: Push firmly until the board is fully seated in the backplane. You should feel the connectors engage.
- Securing: Tighten the screws to ensure the board is properly grounded to the rack frame.
Phase 4: Commissioning & Testing
- Power-On: Switch on the control power. The “OK” LED should illuminate.
- Pulse Test: Use the UNITROL Service Tool to perform a “Gate Pulse Test” at a low voltage. Verify that the pulses are reaching the thyristors in the correct sequence (1-2-3-4-5-6).
- Waveform Check: If possible, use an oscilloscope to verify the pulse sharpness at the output terminals of the PMA323BE.
ABB PMA323BE HIEE300308R1
Customer Cases & Industry Applications
Case 1: Overcoming “Firing Failure” in a Gas Turbine Plant
Situation: A combined-cycle power plant in Southeast Asia experienced intermittent “Firing Failure” alarms on their UNITROL 5000 system. The generator would fail to synchronize due to missing pulses in one branch of the thyristor bridge.
Task: The plant needed to restore reliable startup capability. The issue was traced to a degraded pulse transformer on the aging PMA323 board.
Action: We provided a New Surplus PMA323BE (HIEE300308R1) from our stock. Because it was New Surplus, the internal components had zero thermal aging.
Result: The board was replaced during a 4-hour maintenance window. The pulse timing returned to microsecond precision, and the generator has successfully synchronized on every attempt since.
Case 2: Strategic Spares for a Nuclear Power Facility
Situation: A nuclear power plant was updating its critical spares list for its excitation systems. They identified the PMA323BE as a “Single Point of Failure” component that was becoming increasingly difficult to source from the OEM.
Task: The facility required parts in “New” condition with full traceability to meet their strict quality standards.
Action: We supplied two units of the HIEE300308R1. These units were verified to be in original factory condition and were provided with 12 months of warranty.
Result: The facility now has the security of having revision-matched, brand-new spares on hand, avoiding the risk of a long-term outage due to part obsolescence.
ABB PMA323BE HIEE300308R1
Frequently Asked Questions (FAQ)
Q: What is the difference between the PMA323 and PMA323BE? A: The PMA323BE is a later hardware revision. The “BE” suffix typically denotes an “Enhanced” build, often featuring improved component specs for higher temperature stability or better noise immunity compared to earlier versions.
Q: Do I need to program this board? A: No. The PMA323BE is a hardware-level signal conditioning and marshalling board. It does not require software programming, but it must be compatible with the pulse frequency settings of your main controller.
Q: Why choose “New Surplus” over a refurbished board for pulse marshalling? A: Pulse marshalling boards contain many passive components like capacitors and transformers that can age even when the board is not in use. However, “Refurbished” boards have been subjected to high-current pulses for years. New Surplus offers the “freshest” possible components, which is critical for the microsecond timing required in thyristor firing.
Q: Can this board handle a 12-pulse bridge? A: Yes, depending on the system configuration. In 12-pulse systems, two PMA323BE boards are often used in parallel or in a specific master/follower arrangement to handle the additional gate signals.
