1. Product Description

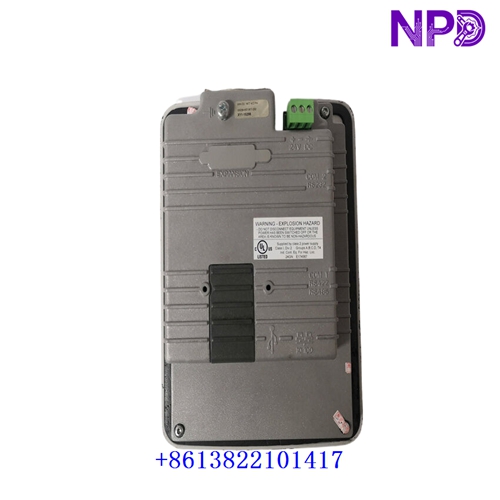

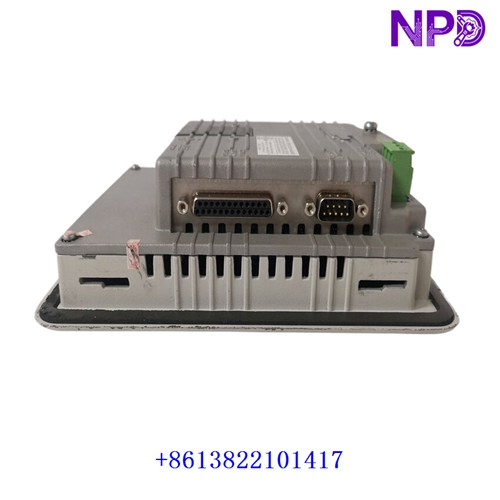

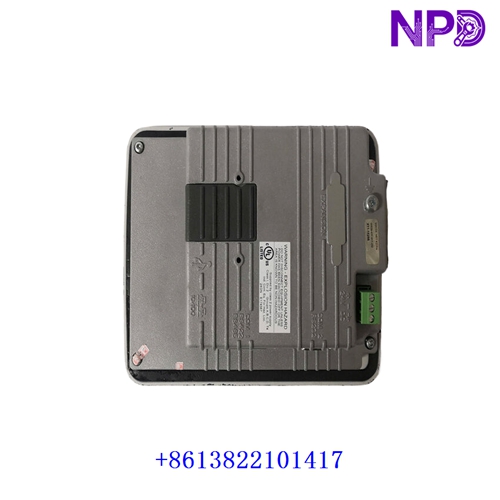

⚙️ The ABB PP825 (3BSE042240R1) is a Panel 800 series industrial human-machine interface (HMI) operator panel. It features a 5.7-inch color STN-LCD touchscreen with a 320 × 240 pixel resolution, enabling operators to monitor process values, view alarms, display graphics, and interact with compatible industrial control systems.
🔧 The PP825 supports panel-mounted installation in industrial control cabinets. It uses a resistive touchscreen and a 24 V DC power supply. Before replacing an existing unit, verify the exact order number, HMI project compatibility, communication interfaces, and configuration software requirements.
ABB PP825 3BSE042240R1
2. Product Parameters and Datasheet
📋 Brand: ABB
Model: PP825
Order Number: 3BSE042240R1
Series: Panel 800
Product Name: Industrial HMI Touch Panel
Display Type: Color STN-LCD
Display Size: 5.7 inches
Resolution: 320 × 240 pixels
Touch Technology: Resistive touchscreen
Power Supply: 24 V DC (20–30 V DC)
Power Consumption: 0.25 A typical; 0.45 A maximum
Communication: Refer to the hardware manual for supported interfaces
Installation: Panel-mounted
Place of Manufacture: Verify from the individual unit label
Product Status: Confirm actual stock condition
Dimensions: Verify using the official hardware installation manual
Weight: Confirm the exact unit and packaging
Country of Origin: Verify from the product nameplate
Discontinued: Confirm current lifecycle status with ABB
3. Recommended ABB Models
🔩 1. ABB PP815 — Compact Panel 800 touch panel.
2. ABB PP815A — Panel 800 touchscreen operator panel.
3. ABB PP825A — Updated 5.7-inch Panel 800 touch panel.
4. ABB PP835 — 6.5-inch industrial HMI touch panel.
5. ABB PP835A — Updated 6.5-inch touch panel.
6. ABB PP845 — 10.4-inch industrial HMI touch panel.
7. ABB PP845A — Updated 10.4-inch touch panel.
8. ABB PP865A — 15-inch industrial HMI touch panel.
9. ABB PP820 — Panel 800 key panel.
10. ABB PP826 — 5.7-inch color function-key panel.
11. ABB PP836 — 6.5-inch function-key panel.
12. ABB PP846 — 10.4-inch function-key panel.
13. ABB PM851A — AC 800M controller.
14. ABB PM856K01 — AC 800M controller kit.
15. ABB CI854A — PROFIBUS-DP communication interface.
⚠️ These are related ABB operator panels and automation products, not guaranteed direct replacements. Confirm the exact article number, display type, mounting dimensions, software compatibility, and system interfaces before ordering.
