Description
The ABB PP826 3BSE042244R1 is an industrial-grade process panel engineered to deliver a robust operator interface for the System 800xA control infrastructure. Featuring a high-resolution, sunlight-readable display alongside multiple communication pathways, this human-machine interface (HMI) provides control room operators with real-time visualization, comprehensive alarm logging, and precise touch response in challenging factory floor settings.
Product Datasheet
- Model Number: PP826
- Global ID: 3BSE042244R1
- Manufacturer: ABB
- Product Type: Operator HMI Process Panel
- Display Type: Active TFT color touch display
- Display Size: 12.1 inches
- Dimensions: 340 mm x 50 mm x 242 mm
- Weight: 2.15 kg
- Country of Origin: Sweden
- Interface Protocols: High-speed Ethernet, RS232, RS422/RS485 serial communication

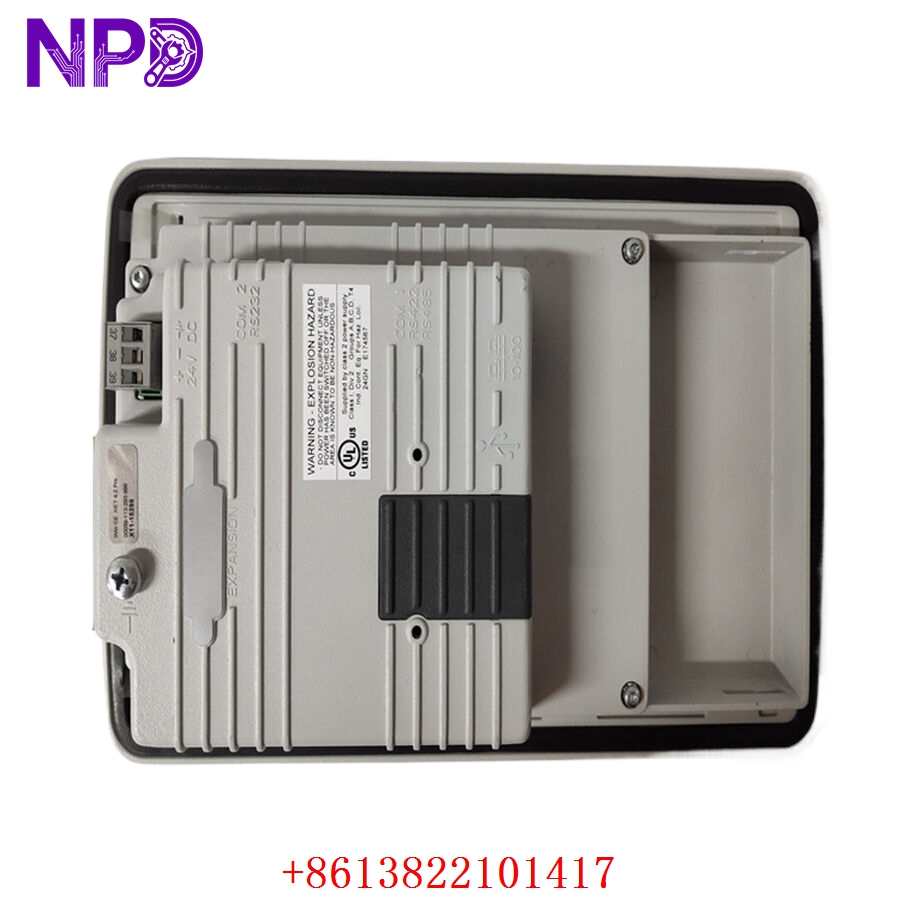

ABB PP826 3BSE042244R1

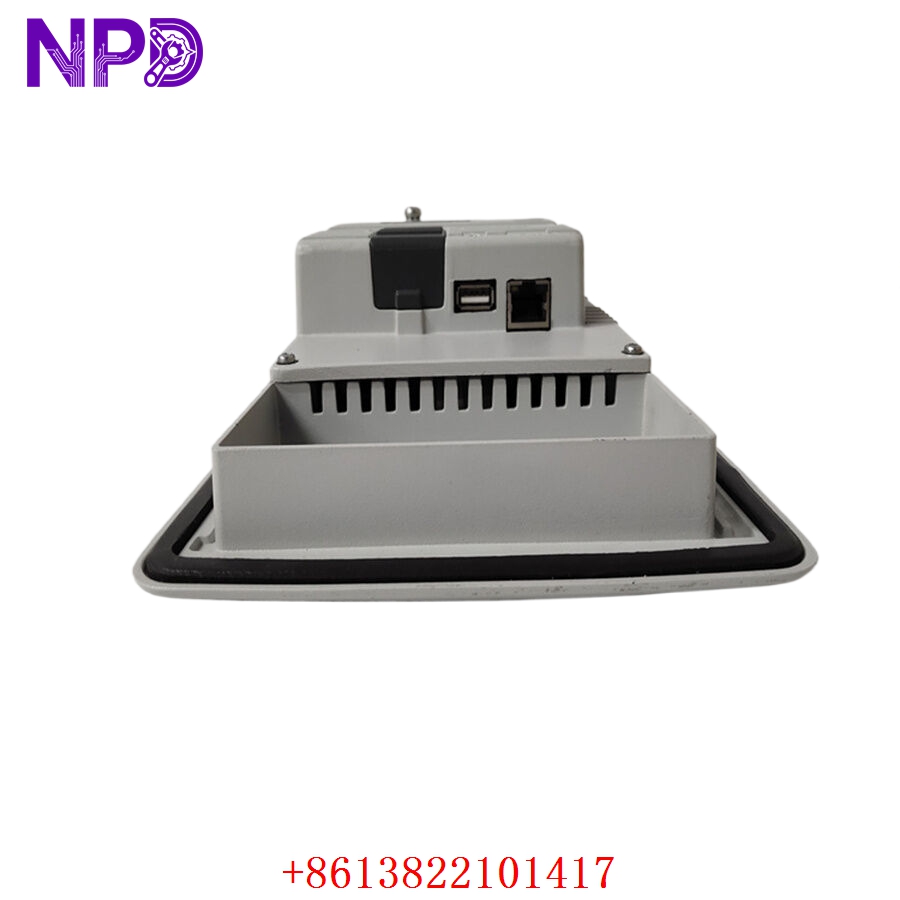

ABB PP826 3BSE042244R1
ABB PP826 3BSE042244R1
Application Fields
This high-performance operator interface is heavily utilized across processes that necessitate continuous monitoring and strict supervisory interaction. Key areas of deployment include:
- Chemical Refining Processing: Providing safe field interaction panels for monitoring distillation column parameters and batch mixture cycles.
- Marine Automation Systems: Operating as decentralized control interfaces on cargo vessel steering, engine monitoring, and ballast tank control stations.
- Water Treatment Facilities: Visualizing localized telemetry data, pump system states, and chemical dosing trends over plant networks.
- Power Plants and Substations: Displaying vital system diagnostics and main line alarms for steam distribution networks.
Product Instructions
To guarantee exact touch responses and long-term hardware reliability, execute the following implementation protocols:
- Panel Cutout Installation: Mount the panel into a cleanly cut enclosure door using the provided sealing gasket and integrated mounting clamps. Ensure uniform tension across all clamps to preserve the ingress protection rating.
- Power Supply Routing: Connect an external 24 VDC power line directly to the terminal plug. Ensure proper chassis grounding to minimize localized high-frequency electromagnetic noise.
- Communication Port Tuning: Use the Ethernet or serial connection ports to network the HMI back to the central controller. Route signal wiring away from high-power line cables to minimize cross-talk.
- Project Download: Launch the corresponding ABB HMI design application, assign the project variables, map the graphic screens, and transfer the configuration data onto the unit over the network interface.
Questions and Answers
Q: Can the front panel of the PP826 endure corrosive industrial washdowns? A: Yes, when mounted correctly into an appropriate enclosure with a tightly compressed front seal, the panel face carries a high ingress protection standard that guards internal circuits against splashing water, ambient dust, and light oil.
Q: Does this operator panel feature external expansion possibilities? A: The board includes onboard USB host sockets alongside standard serial interfaces, which allow for the convenient expansion of peripheral hardware such as memory storage drives, barcoded scanners, or manual input keyboards.
Q: What is the primary method to calibrate the touch response grid if it becomes misaligned? A: System calibration can be accessed via the hardware’s internal system configuration utility screen during initial startup, permitting engineers to re-map the touch matrix for precise interface selection.
Q: How do I verify immediate warehouse availability, delivery estimates, or request an official price quote? A: To check current lead times, batch pricing options, or to get a comprehensive quote for the ABB PP826 3BSE042244R1, please transmit your formal project inquiry through our central distribution interface.
