Description
The ABB PP836 (Part Number 3BDE042237R1) is a high-resolution, widescreen Touchscreen Operator Panel from the ABB Panel 800 series. It is designed to provide a robust and intuitive Human-Machine Interface (HMI) for the AC 800M and other industrial control systems, offering advanced graphics and multiple communication protocols.
Product Parameters (Datasheet)
- Model Number: PP836
- Part Number: 3BDE042237R1
- Display Size: 12.1-inch Widescreen
- Display Type: TFT-LCD with LED backlight (64K colors)
- Resolution: 1280 x 800 pixels (WXGA)
- Touchscreen: Analog Resistive
- Processor: 1.0 GHz ARM Cortex-A8
- Memory: 512 MB Flash / 512 MB RAM
- Communication Ports: * 2x Ethernet (10/100 Mbps)
- 2x Serial ports (RS-232, RS-422/485)
- 1x USB 2.0 host
- Operating Voltage: 24V DC (18 to 32V DC)
- Protection Class: IP65 (Front) / IP20 (Rear)

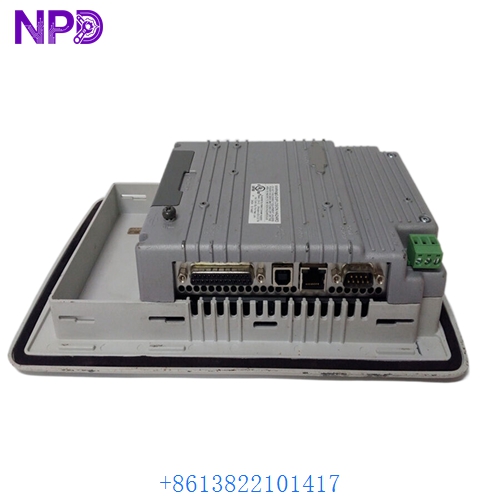

ABB PP836 3BDE042237R1

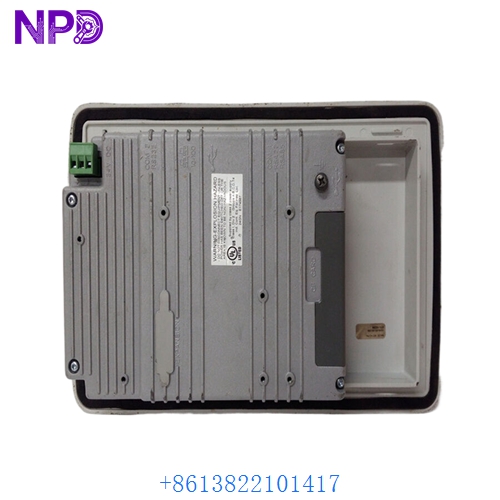

ABB PP836 3BDE042237R1

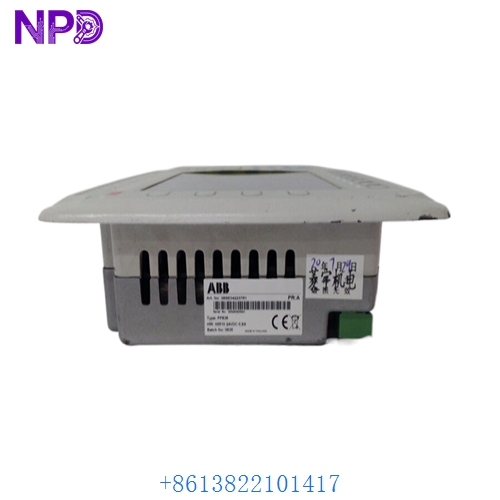

ABB PP836 3BDE042237R1
Country of Origin
This HMI terminal is engineered and manufactured by ABB AB in Sweden, designed for global industrial deployment within the System 800xA and Compact Product Suite families.
Application Fields
The PP836 is a versatile interface used across various high-demand sectors:
- Process Automation: Acting as a local operator station for chemical reactors and mixing tanks.
- Marine Applications: Monitoring engine room parameters and power management systems on vessels.
- Oil & Gas: Visualizing separator data and safety system statuses at the wellhead.
- Food & Beverage: Managing recipe selection and clean-in-place (CIP) automation cycles.
- Machine Control: Serving as the primary control interface for complex packaging and material handling machinery.
Product Usage Instructions
- Mounting: Cut the panel opening according to the provided template. Insert the PP836 and tighten the integrated mounting brackets to ensure an IP65 seal against the cabinet door.
- Power Supply: Connect a stable 24V DC power source. Ensure the ground terminal is connected to the cabinet’s common ground to protect against electromagnetic interference (EMI).
- Communication Setup: Use the Ethernet ports for connection to the Control Network. The PP836 supports multiple drivers simultaneously, allowing it to communicate with an ABB AC 800M via MMS while also talking to a third-party PLC via Modbus TCP.
- Project Download: Develop your HMI screens using the Panel Builder 800 software tool. Download the project via Ethernet or a USB stick.
- Screen Calibration: If touch accuracy drifts over time, use the system menu (accessible by holding a finger on the screen during startup) to run the calibration utility.
Product Technical Description
Technically, the PP836 is built on a high-performance ARM Cortex-A8 architecture, which allows for fast screen switches and fluid vector graphics. It supports advanced HMI features such as historical trending, alarm management, and multi-language support. Its dual-Ethernet design is particularly useful for separating the control network from the office or diagnostic network. The widescreen format (16:10) provides significantly more horizontal workspace for complex process flow diagrams compared to traditional 4:3 displays.
Q&A (Common Questions)
Q: Can the PP836 be used with non-ABB PLCs? A: Yes. The Panel 800 series includes an extensive library of drivers for major PLC brands, including Siemens, Rockwell Automation (Allen-Bradley), and Schneider Electric, as well as standard protocols like Modbus and OPC UA.
Q: What is the difference between the PP836 and the PP846? A: The PP836 is the standard 12.1″ version, while the PP846 is typically a larger 15″ version. They share the same software environment and performance characteristics but differ in screen real estate.
Q: Does it require an external cooling fan? A: No. The PP836 features a fanless, convection-cooled design, making it highly reliable in dusty or vibrating industrial environments.
Q: Can I use a mouse and keyboard with this panel? A: Yes, the integrated USB 2.0 port supports standard HID devices, allowing for easier data entry or navigation if the panel is mounted in an accessible location.
Similar Model Recommendations
- ABB PP836A (Updated hardware revision)
- ABB PP846 (15-inch widescreen version)
- ABB PP815 (Standard 5.7-inch version)
- ABB PP882 (High-performance 7-inch version)
- ABB PM866K01 (Companion AC 800M Controller)
For technical support or to procure the ABB PP836, please contact our automation specialists today.
