Description

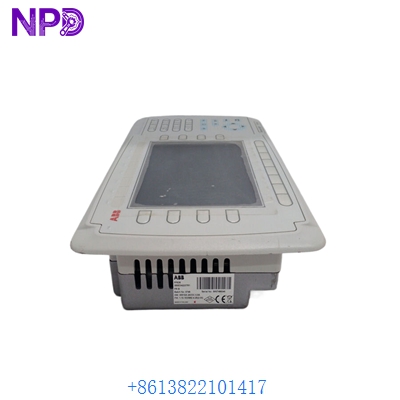

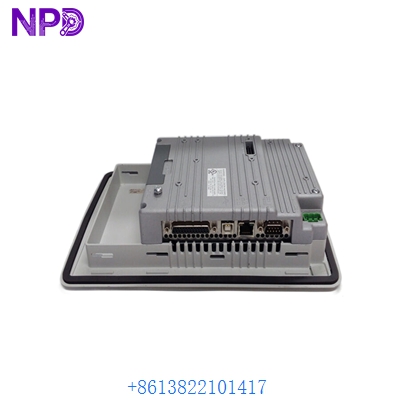

The ABB PP836 3BSE042237R1 is a high-performance Human Machine Interface (HMI) from the Panel 800 series. Featuring a 12.1-inch TFT-LCD display, it provides operators with a clear, touch-sensitive interface for monitoring and controlling complex industrial processes. It is designed for seamless integration with ABB’s 800xA and Freelance systems.
Technical Parameters
- Model: PP836
- Part Number: 3BSE042237R1
- Display Size: 12.1-inch Diagonal
- Resolution: 800 x 600 pixels (SVGA)
- Processor: Intel Celeron 1.0 GHz
- Memory: 256 MB RAM / 512 MB Flash
Product Specifications
- Input Voltage: 24V DC (18 to 32V DC range)
- Touch Screen: Analog Resistive
- Communication: 2x Ethernet, 3x Serial (RS232/RS422/RS485), 2x USB
- Front Protection: IP66 / NEMA 4X (Water and dust-proof)
- Backlight: CCFL with adjustable brightness (50,000-hour life)
Application Areas
- Centralized process monitoring in oil and gas
- Machine-level control in automotive assembly
- Food and beverage production line visualization
- Marine and offshore vessel automation systems
- Utilities and water treatment facility management
Product Q&A
- Q: Does the PP836 support multi-language interfaces?
- A: Yes, the Panel Builder software allows for the configuration of multiple languages and font styles for global operations.
- Q: Can this panel connect to non-ABB controllers?
- A: Yes, it supports a wide range of third-party drivers including Modbus TCP, EtherNet/IP, and various PLC-specific protocols.
- : What is the recommended mounting method?
- A: It is designed for flush mounting in a cabinet door or console using the provided clamping hardware to maintain its IP66 rating.
